Removal Procedure

  1. Remove the shift control assembly. Refer to Shift Control Assembly Replacement .

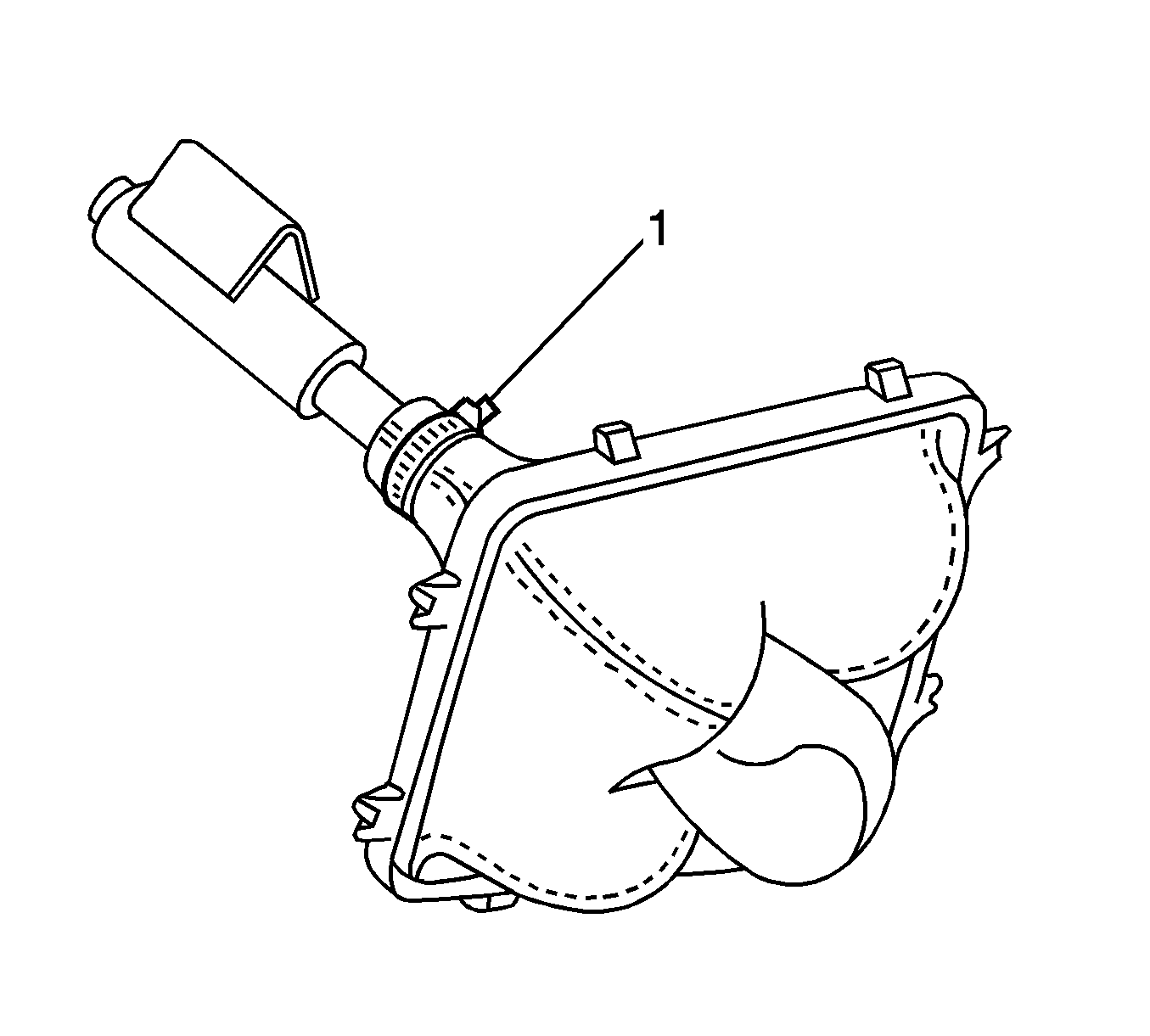

    2. Fig 1: View Of Control Lever Boot Tie Strap
    GM1370984Courtesy of GENERAL MOTORS CORP.
  2. Turn the shift control boot inside out.
  3. Remove the control lever boot tie strap (1) from the control lever.
    4. IMPORTANT: The gearshift lever knob and gearshift lever are permanently bonded together and are not serviced separately.
  4. Carefully remove the shift lever control boot over the knob.
