Engine Controls Schematics

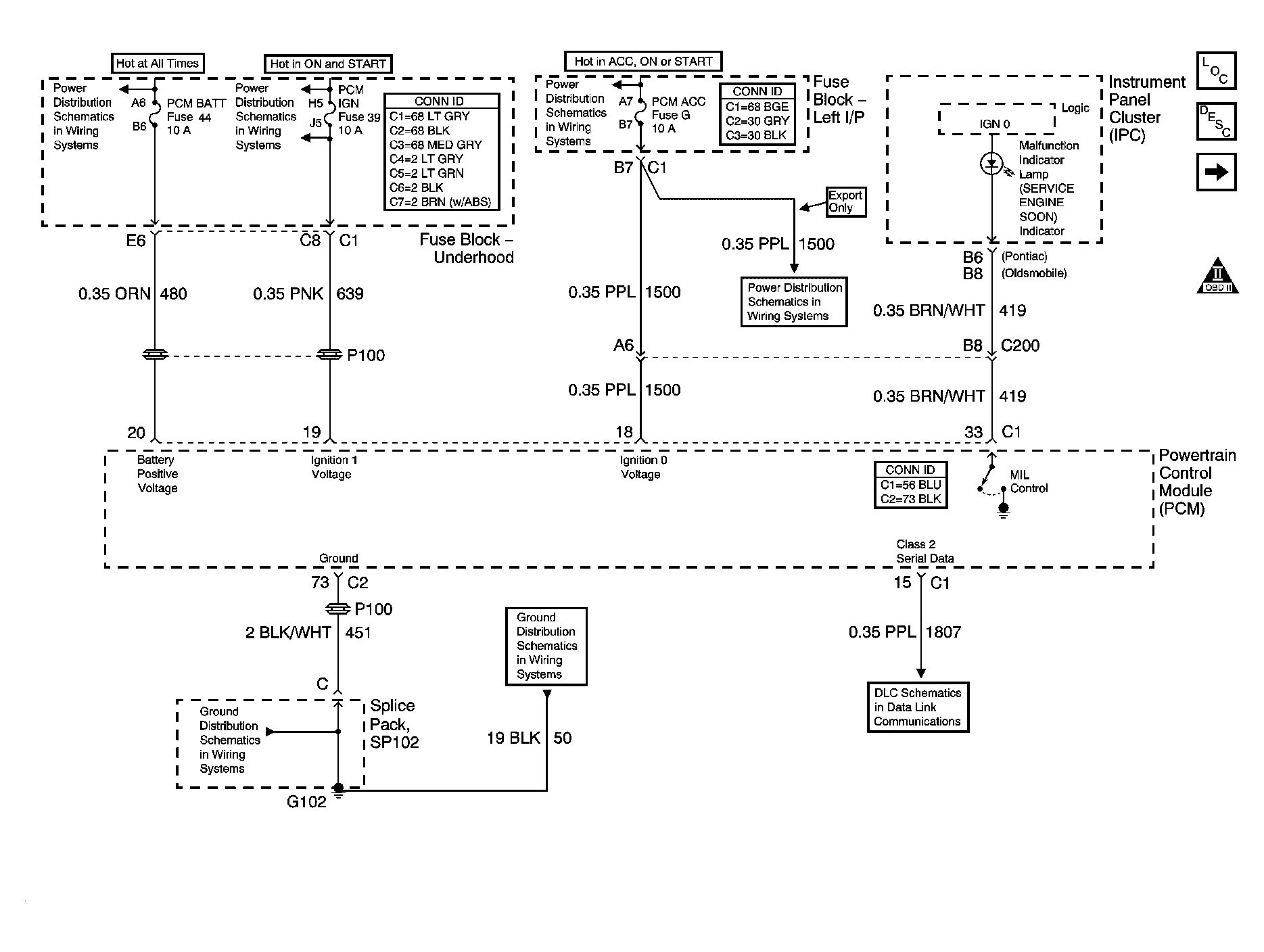

Fig 1: Power, Ground, Serial Data and MIL

Courtesy of GENERAL MOTORS CORP.

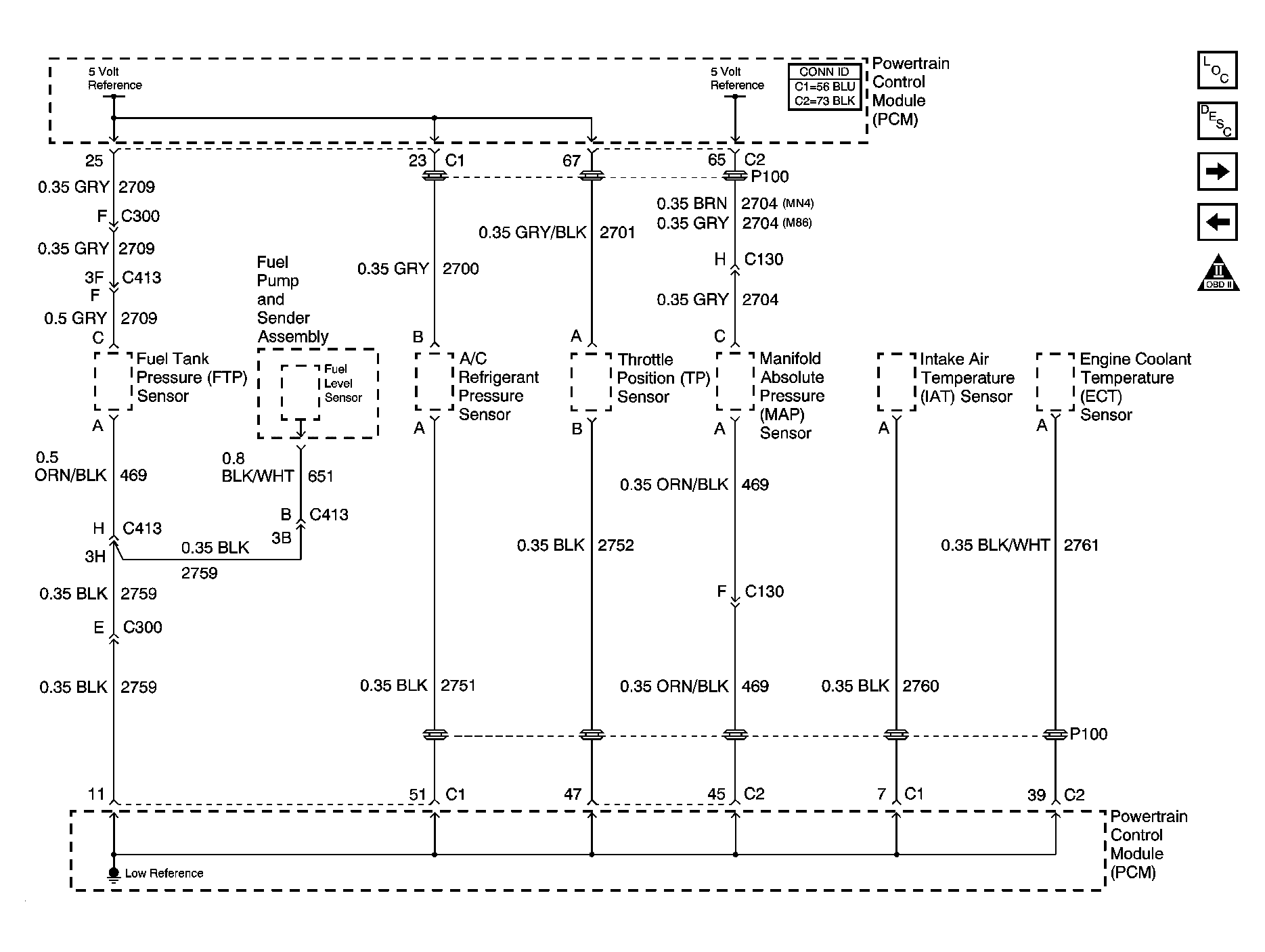

Fig 2: 5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

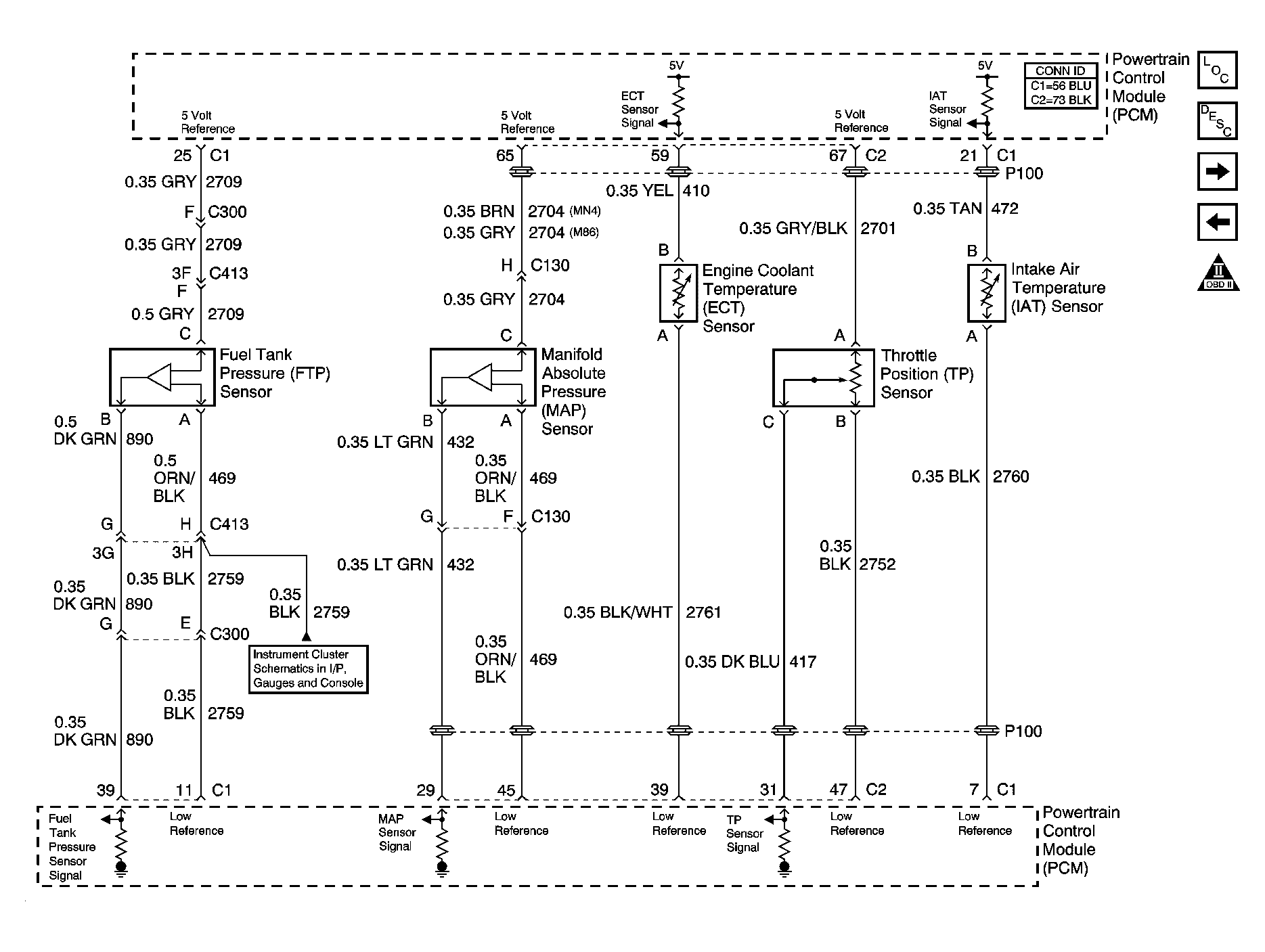

Fig 3: Engine Data Sensors - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

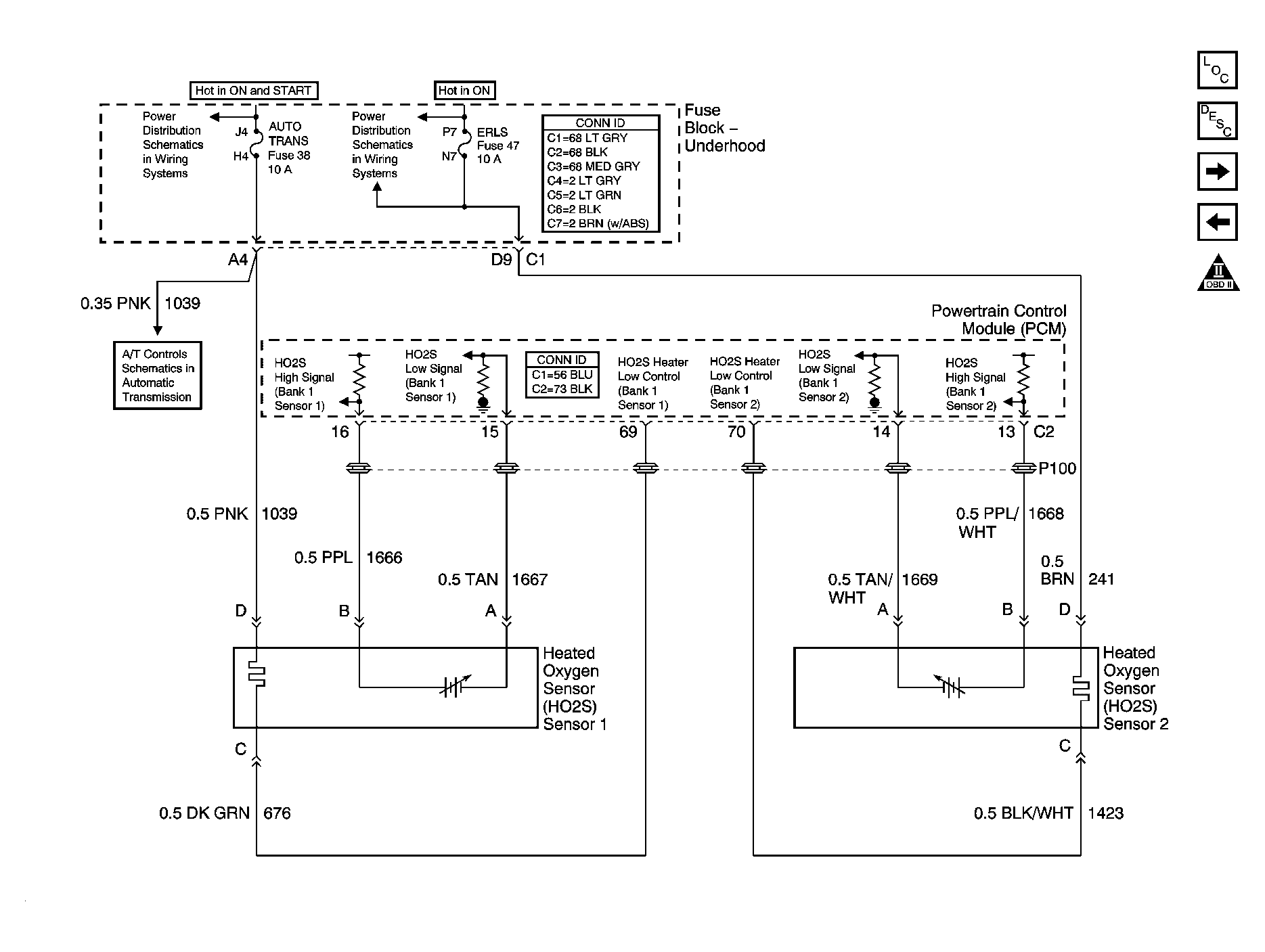

Fig 4: Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

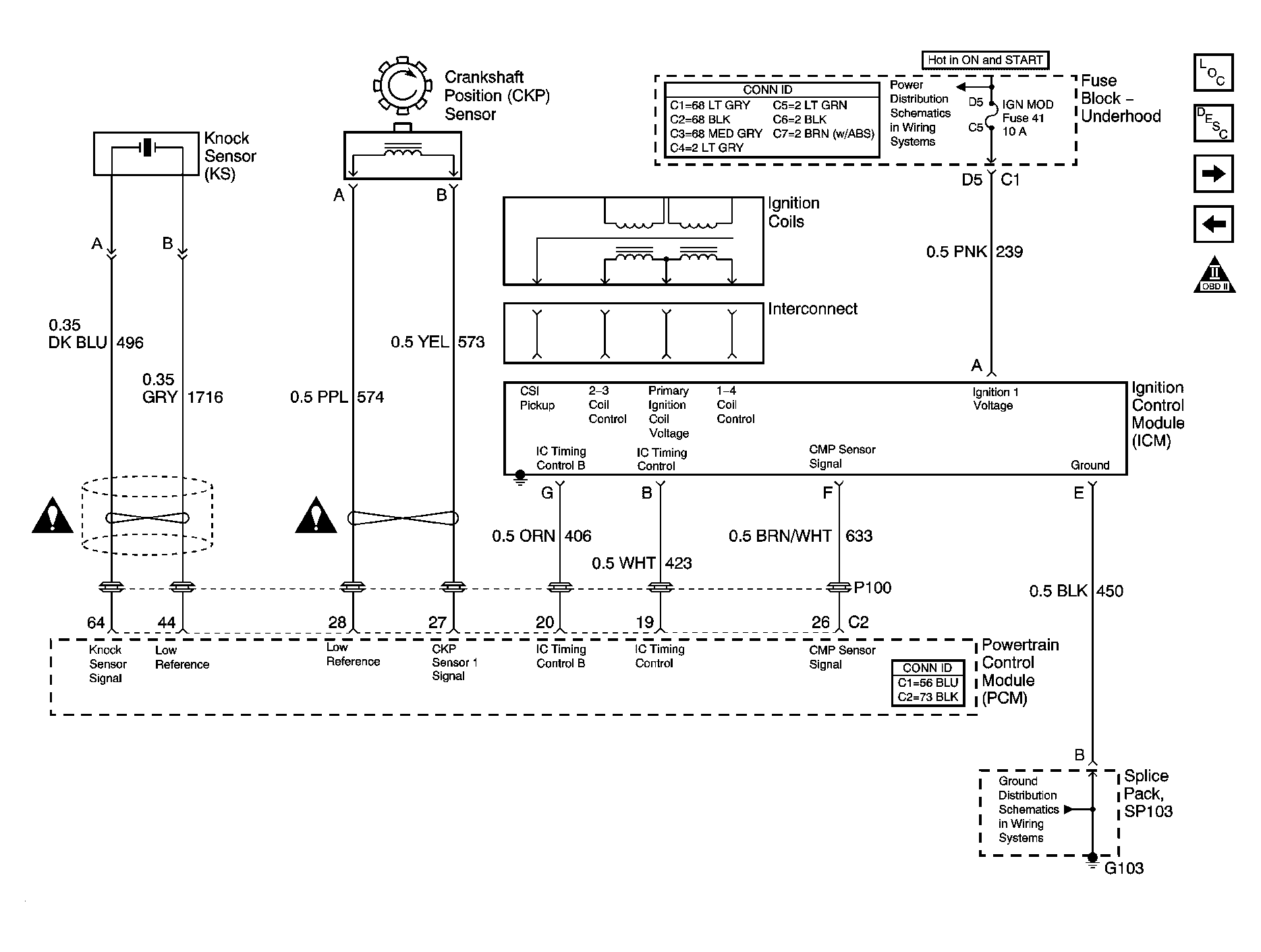

Fig 5: Ignition System

Courtesy of GENERAL MOTORS CORP.

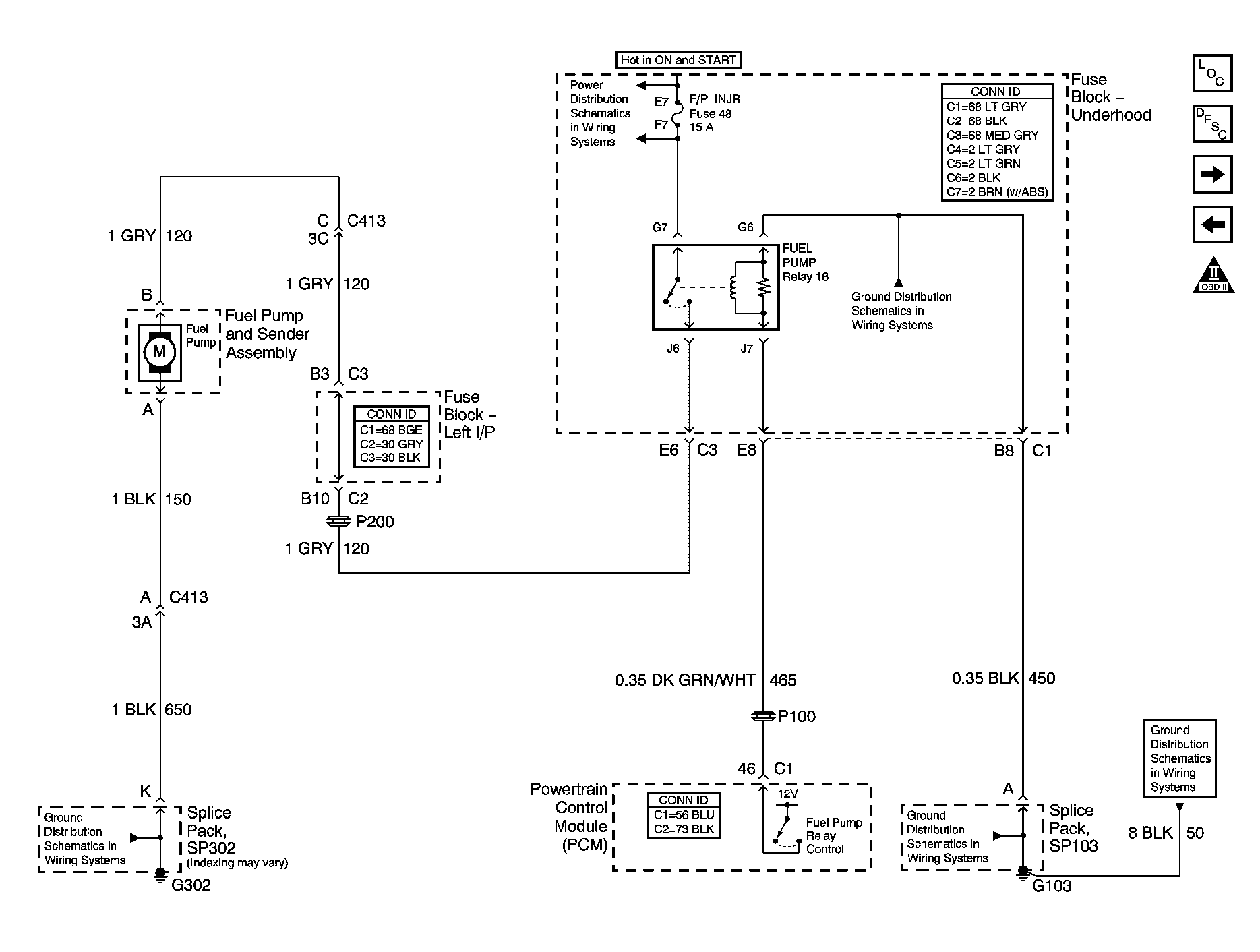

Fig 6: Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

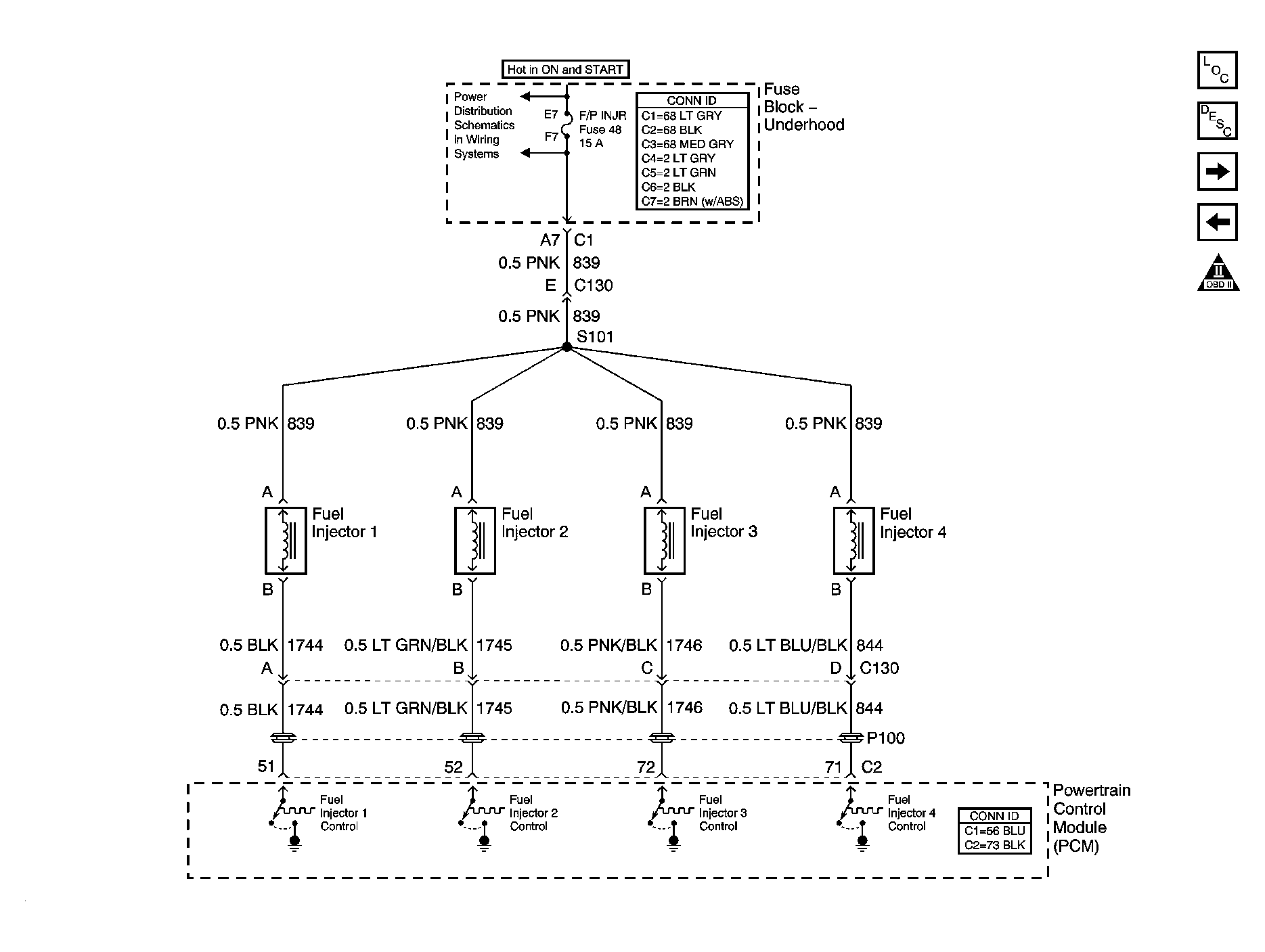

Fig 7: Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

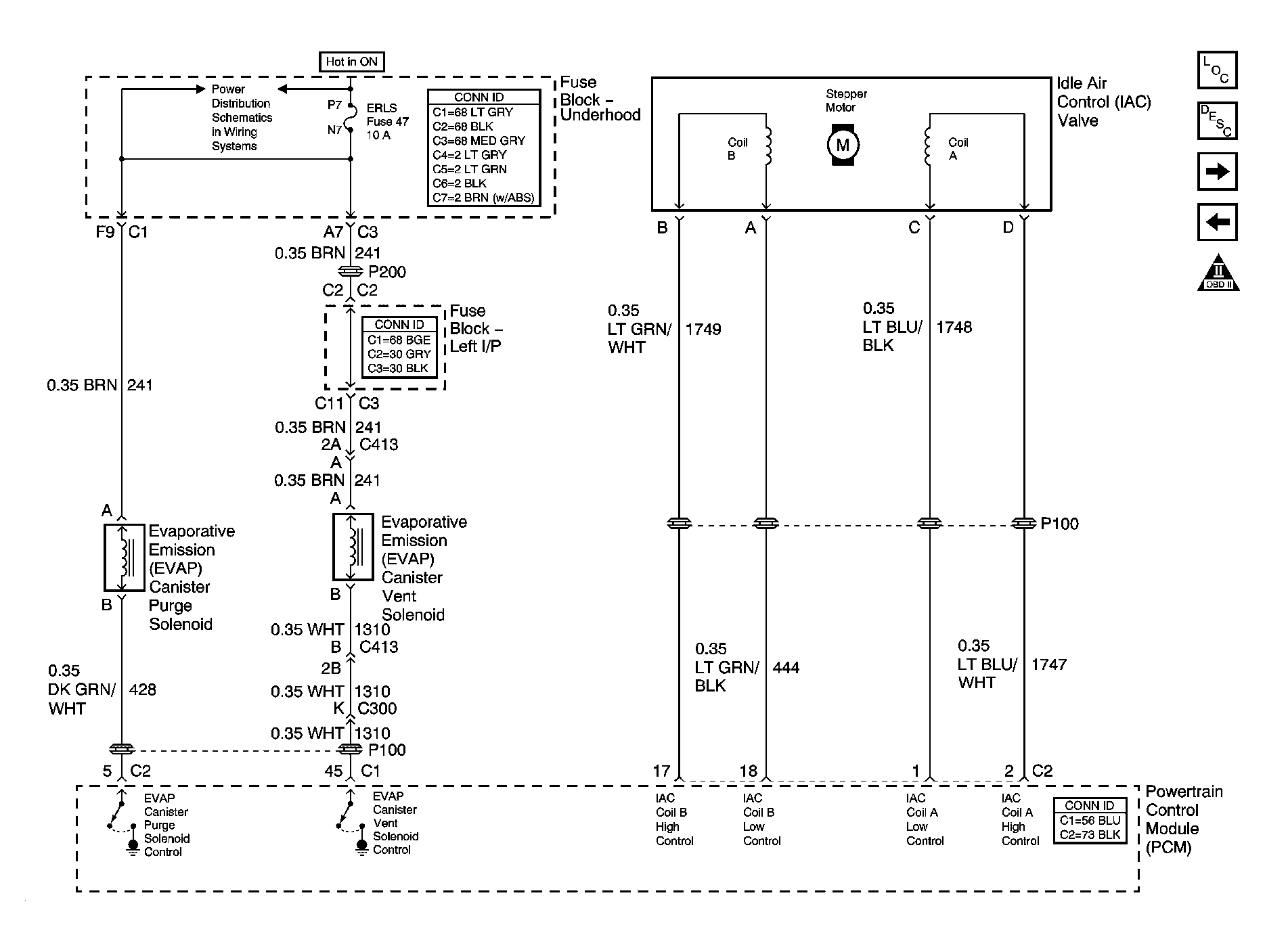

Fig 8: EVAP & IAC Controls

Courtesy of GENERAL MOTORS CORP.

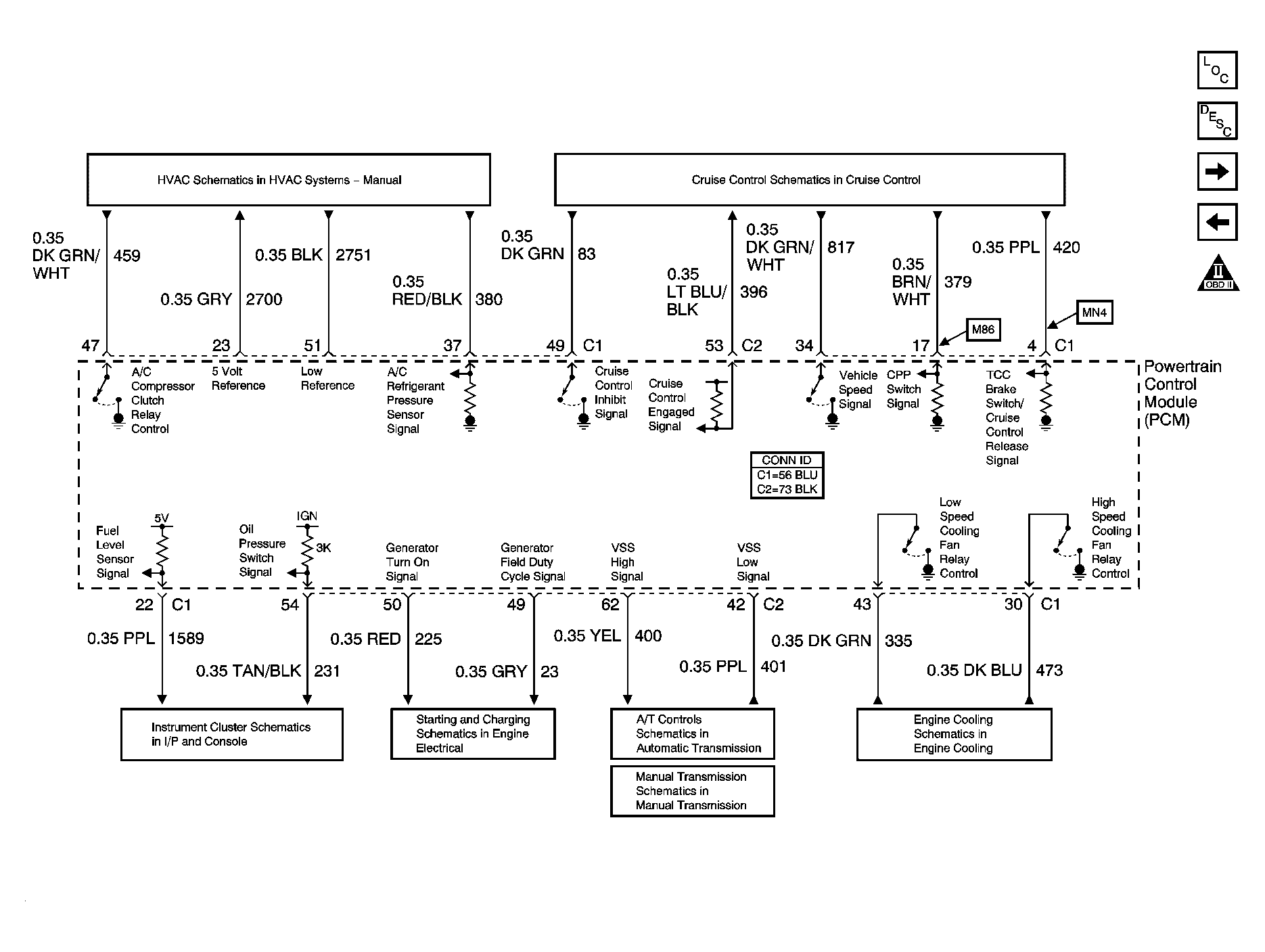

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

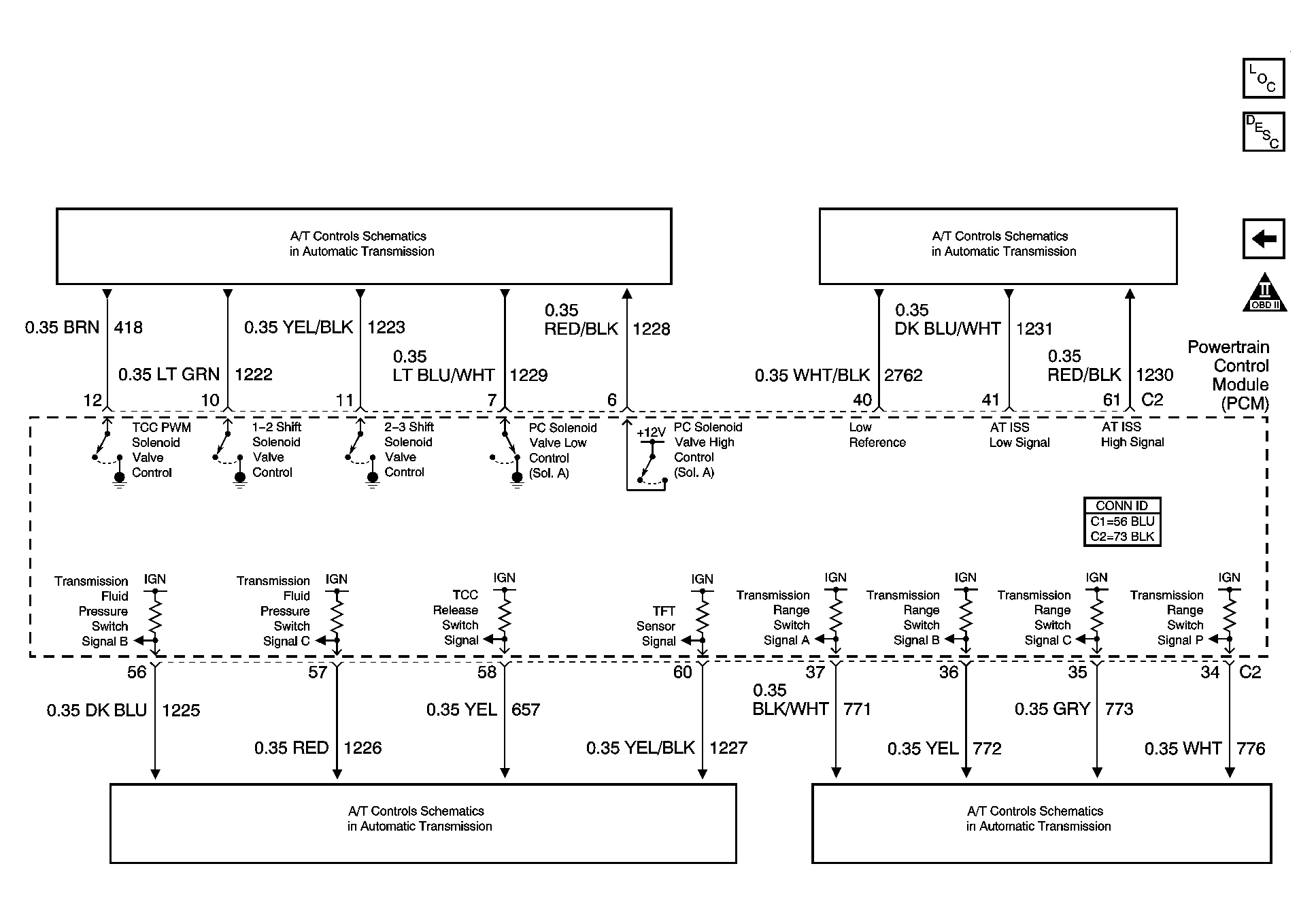

Fig 10: Transmission Controls - A/T

Courtesy of GENERAL MOTORS CORP.
