Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Underhood Fuse Block

G00261100

Courtesy of GENERAL MOTORS CORP.

Fig 2: Left I/P Fuse Block

G00261101

Courtesy of GENERAL MOTORS CORP.

Fig 3: Right I/P Fuse Block

G00261102

Courtesy of GENERAL MOTORS CORP.

Fig 4: Left Front Of Engine Compartment

G00261103

Courtesy of GENERAL MOTORS CORP.

Fig 5: Left Rear Of Engine Compartment

G00261104

Courtesy of GENERAL MOTORS CORP.

Fig 6: Left Side Of Dash

G00261106

Courtesy of GENERAL MOTORS CORP.

Fig 7: Right I/P Harness

G00261107

Courtesy of GENERAL MOTORS CORP.

Fig 8: Left Side Of Passenger Compartment

G00261110

Courtesy of GENERAL MOTORS CORP.

Fig 9: ABS Component Views

G00261111

Courtesy of GENERAL MOTORS CORP.

Fig 10: Rear Of Radiator

G00261112

Courtesy of GENERAL MOTORS CORP.

Fig 11: Coolant Level Switch

G00261113

Courtesy of GENERAL MOTORS CORP.

Fig 12: Starter

G00261115

Courtesy of GENERAL MOTORS CORP.

Fig 13: Left Front Of Engine

G00261116

Courtesy of GENERAL MOTORS CORP.

Fig 14: A/C Compressor Clutch

G00261118

Courtesy of GENERAL MOTORS CORP.

Fig 15: Right Side Of Evaporator

G00261199

Courtesy of GENERAL MOTORS CORP.

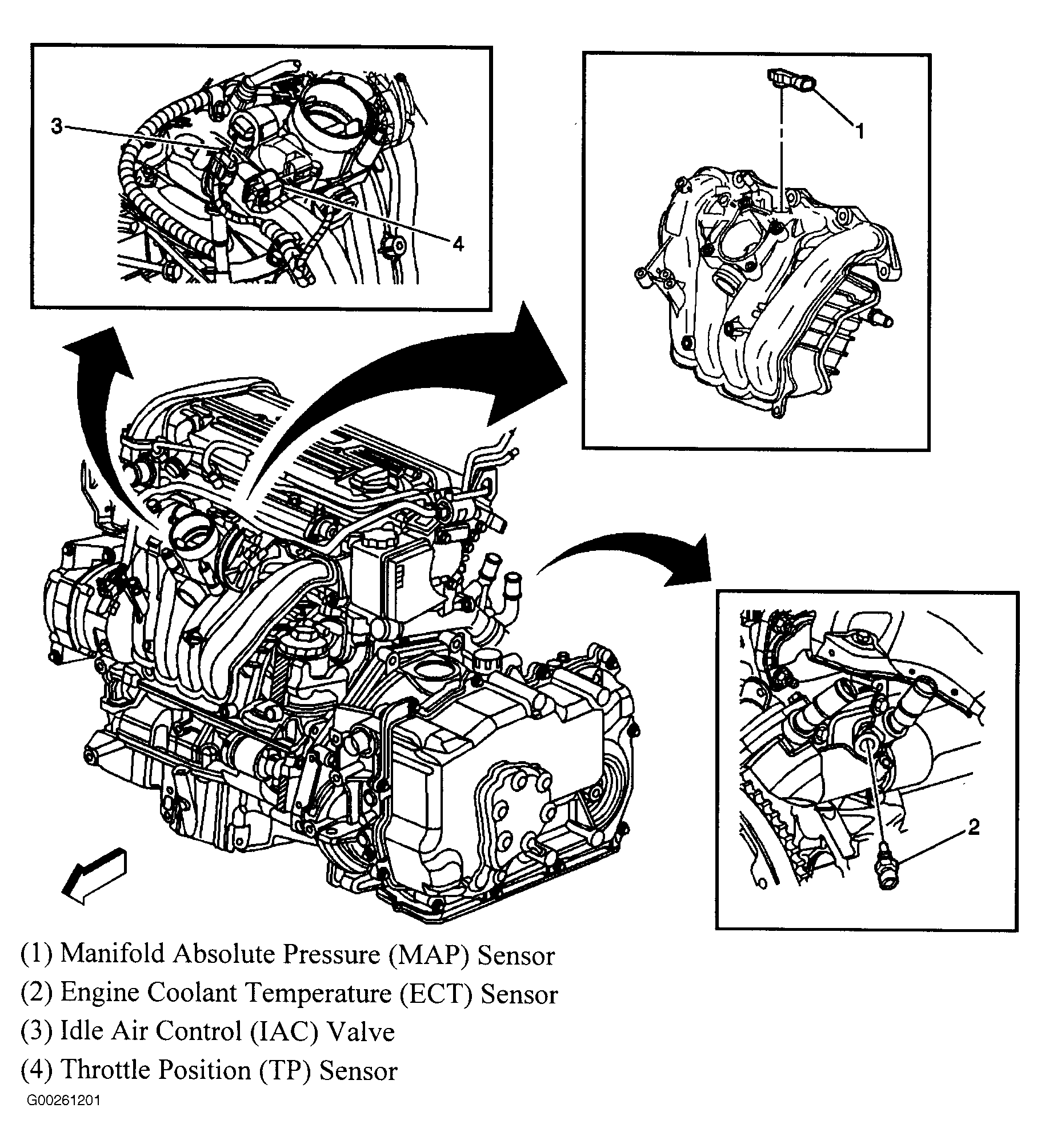

Fig 16: Front Of Engine (2.2L)

G00261201

Courtesy of GENERAL MOTORS CORP.

Fig 17: Front Of Engine (2.2L)

G00261202

Courtesy of GENERAL MOTORS CORP.

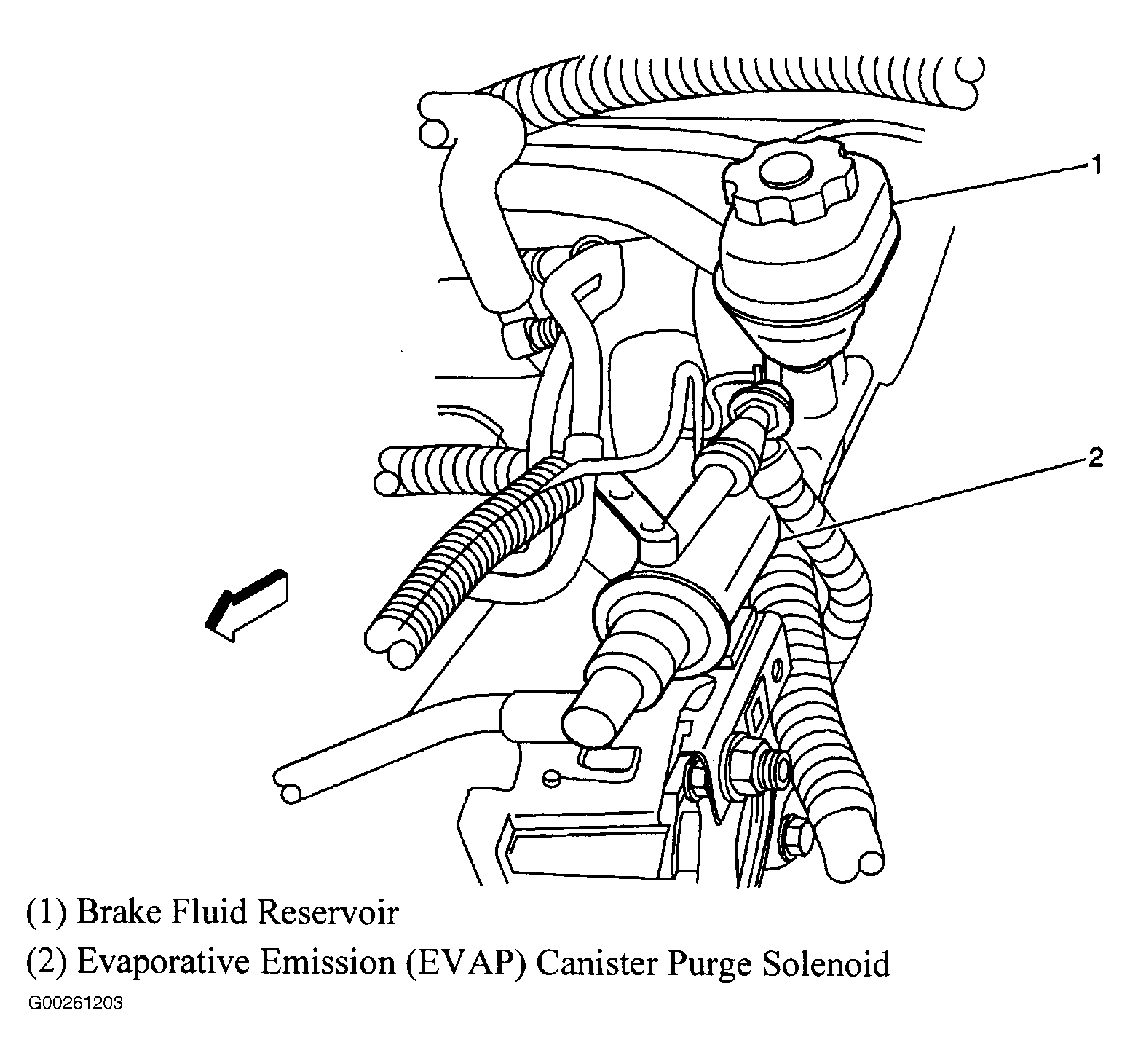

Fig 18: Upper Right Side Of Engine (2.2L)

G00261203

Courtesy of GENERAL MOTORS CORP.

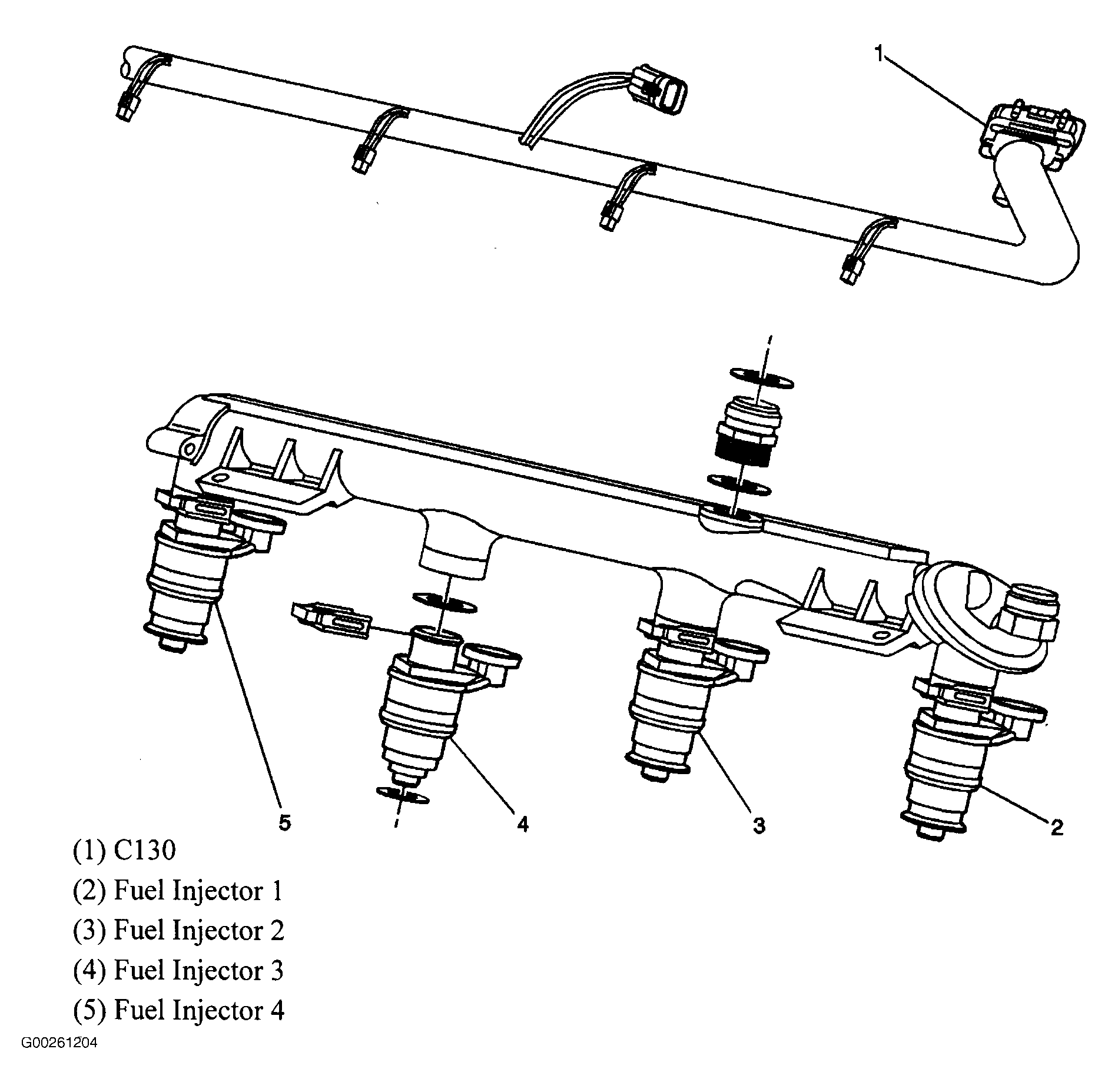

Fig 19: Fuel Injection System (2.2L)

G00261204

Courtesy of GENERAL MOTORS CORP.

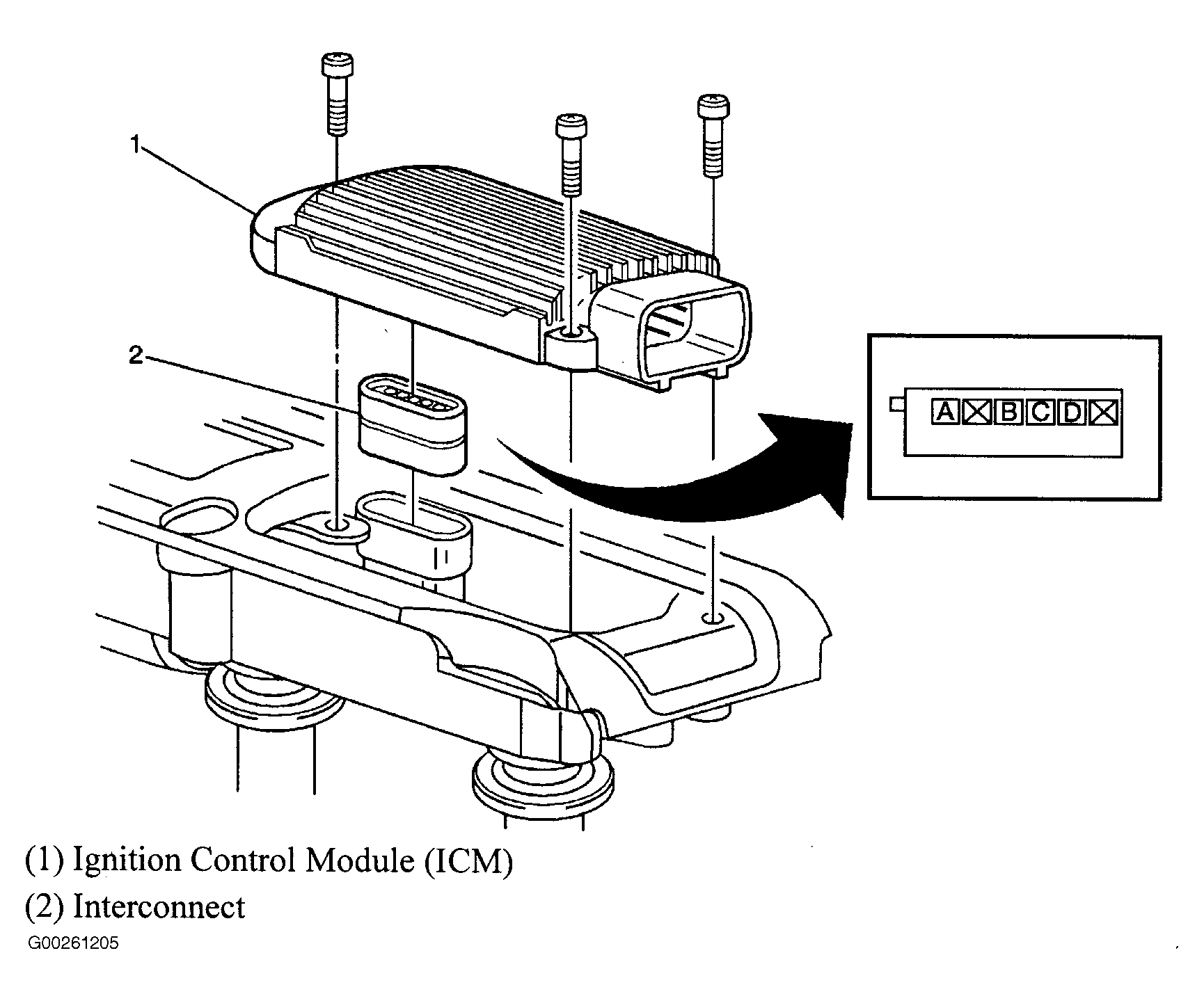

Fig 20: Ignition System (2.2L)

G00261205

Courtesy of GENERAL MOTORS CORP.

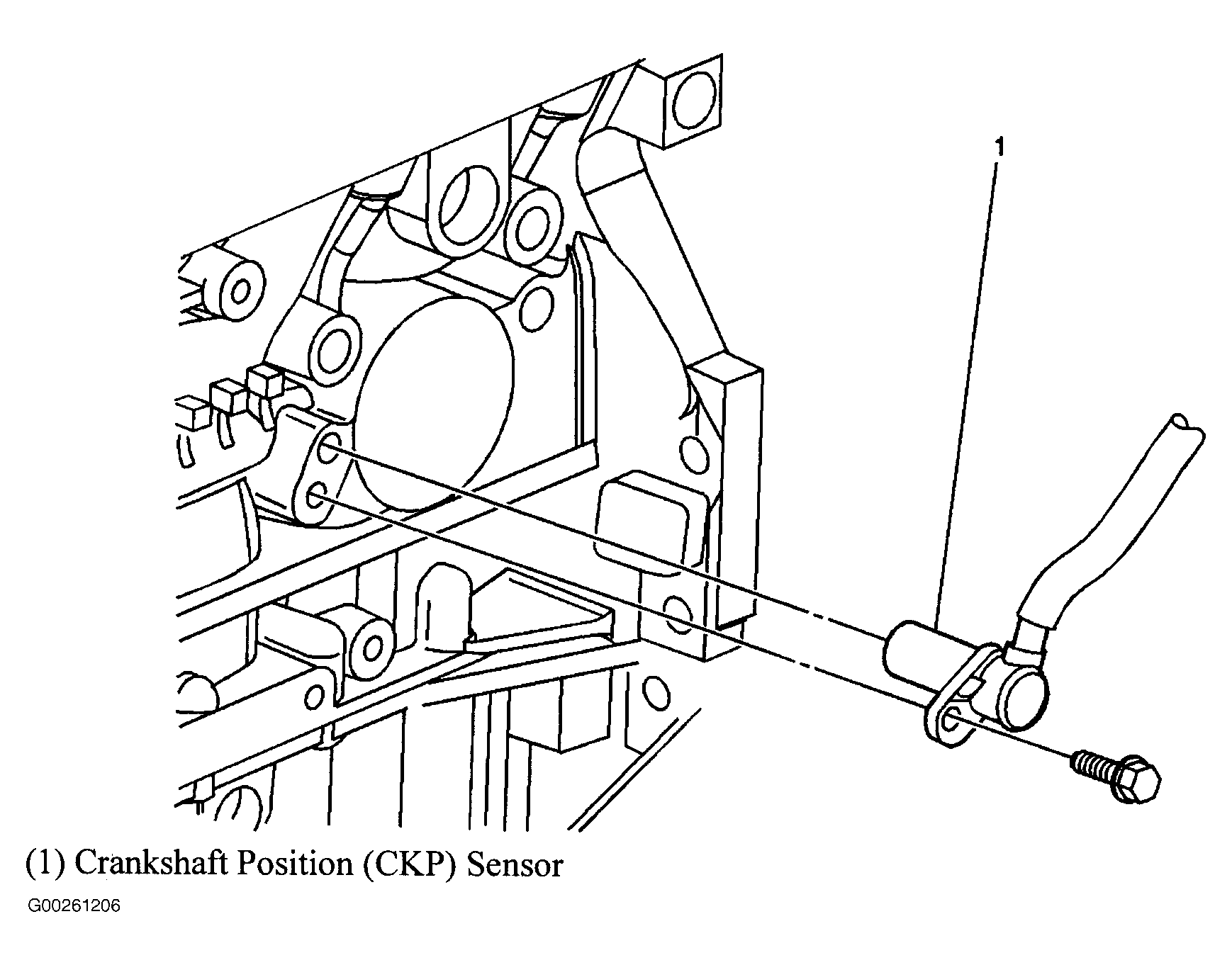

Fig 21: Crankshaft Position Sensor (2.2L)

G00261206

Courtesy of GENERAL MOTORS CORP.

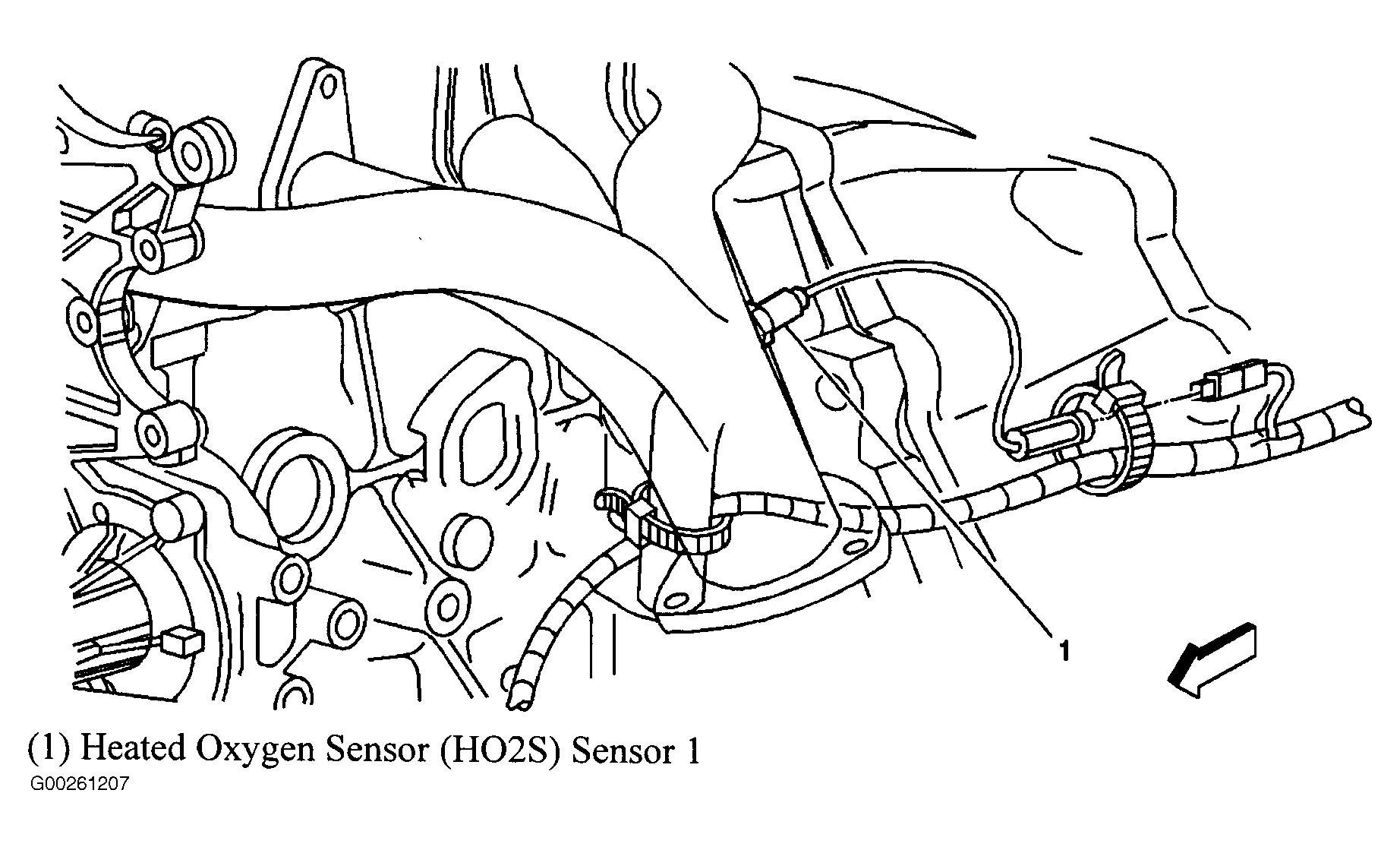

Fig 22: Heated Oxygen (HO2S) Sensor 1

G00261207

Courtesy of GENERAL MOTORS CORP.

Fig 23: Left Side Of Passenger Compartment

G00261208

Courtesy of GENERAL MOTORS CORP.

Fig 24: Evaporative Emission (EVAP) Canister Vent Solenoid

G00261209

Courtesy of GENERAL MOTORS CORP.

Fig 25: Heated Oxygen (HO2S) Sensor 2

G00261210

Courtesy of GENERAL MOTORS CORP.

Fig 26: Fuel Pump & Sender Assembly

G00261211

Courtesy of GENERAL MOTORS CORP.

Fig 27: Left Side Of Engine (3.4L)

G00261212

Courtesy of GENERAL MOTORS CORP.

Fig 28: Right Side Of Engine (3.4L)

G00261213

Courtesy of GENERAL MOTORS CORP.

Fig 29: Left Front Of Intake Manifold (3.4L)

G00261214

Courtesy of GENERAL MOTORS CORP.

Fig 30: Left Center Of Engine (3.4L)

G00261215

Courtesy of GENERAL MOTORS CORP.

Fig 31: Fuel Rail (3.4L)

G00261216

Courtesy of GENERAL MOTORS CORP.

Fig 32: Upper Left Rear Of Engine (3.4L)

G00261217

Courtesy of GENERAL MOTORS CORP.

Fig 33: Top Left Of Engine (3.4L)

G00261219

Courtesy of GENERAL MOTORS CORP.

Fig 34: Front Of Engine Compartment (3.4L)

G00261220

Courtesy of GENERAL MOTORS CORP.

Fig 35: Right Rear Of Engine (3.4L)

G00261221

Courtesy of GENERAL MOTORS CORP.

Fig 36: Under Center Console

G00261222

Courtesy of GENERAL MOTORS CORP.

Fig 37: Top Of Transmission

G00261223

Courtesy of GENERAL MOTORS CORP.

Fig 38: Transmission Electronic Components

G00261224

Courtesy of GENERAL MOTORS CORP.

Fig 39: Inflatable Restraint Components

G00261226

Courtesy of GENERAL MOTORS CORP.

Fig 40: Right Front Of Passenger Compartment

G00261229

Courtesy of GENERAL MOTORS CORP.

Fig 41: Digital Radio Receiver

G00261230

Courtesy of GENERAL MOTORS CORP.

Fig 42: Right Rear Of Passenger Compartment

G00261232

Courtesy of GENERAL MOTORS CORP.

Fig 43: Antenna Choke

G00261233

Courtesy of GENERAL MOTORS CORP.

Fig 44: Right "C" Pillar

G00261234

Courtesy of GENERAL MOTORS CORP.

Fig 45: Inside Left Rear Of Rear Compartment

G00261235

Courtesy of GENERAL MOTORS CORP.

Fig 46: Remote Control Door Lock Receiver (RCDLR)

G00261236

Courtesy of GENERAL MOTORS CORP.

Fig 47: Left Side Of Dash

G00261238

Courtesy of GENERAL MOTORS CORP.

Fig 48: Theft Deterrent Module

G00261239

Courtesy of GENERAL MOTORS CORP.

Fig 49: Theft Deterrent Exciter Module

G00261240

Courtesy of GENERAL MOTORS CORP.

Fig 50: Right Side Of Engine Compartment

G00261241

Courtesy of GENERAL MOTORS CORP.

Fig 51: Brake Pedal Support

G00261242

Courtesy of GENERAL MOTORS CORP.

Fig 52: Below Right Side Of Dashboard

G00261243

Courtesy of GENERAL MOTORS CORP.

Fig 53: Below Left Side Of Dashboard

G00261244

Courtesy of GENERAL MOTORS CORP.

Fig 54: Left Front Door

G00261245

Courtesy of GENERAL MOTORS CORP.

Fig 55: Right Front Door

G00261246

Courtesy of GENERAL MOTORS CORP.

Fig 56: Left Rear Door (Right Rear Similar)

G00261247

Courtesy of GENERAL MOTORS CORP.

Fig 57: Left Rear Door Ajar Switch

G00261248

Courtesy of GENERAL MOTORS CORP.

Fig 58: Right Front Of Vehicle

G00261249

Courtesy of GENERAL MOTORS CORP.

Fig 59: Bottom Of Oil Pan

G00261250

Courtesy of GENERAL MOTORS CORP.

Fig 60: Sunroof Assembly

G00261255

Courtesy of GENERAL MOTORS CORP.

Fig 61: Under Left Front Seat

G00261257

Courtesy of GENERAL MOTORS CORP.

Fig 62: Rear Of Engine Compartment

G00261260

Courtesy of GENERAL MOTORS CORP.

Fig 63: Windshield Washer Reservoir

G00261261

Courtesy of GENERAL MOTORS CORP.

Fig 64: Top Of Transmission

G00261263

Courtesy of GENERAL MOTORS CORP.

Fig 65: Front Of Engine Compartment

G00261264

Courtesy of GENERAL MOTORS CORP.

Fig 66: Top Right Side Of I/P

G00261267

Courtesy of GENERAL MOTORS CORP.

Fig 67: I/P Wiring Harness

G00261268

Courtesy of GENERAL MOTORS CORP.

Fig 68: Top Of I/P

G00261269

Courtesy of GENERAL MOTORS CORP.

Fig 69: Below Left Side Of I/P

G00261276

Courtesy of GENERAL MOTORS CORP.

Fig 70: Rear Compartment Lid

G00261277

Courtesy of GENERAL MOTORS CORP.

Fig 71: Top Right Side Of Dash

G00261108

Courtesy of GENERAL MOTORS CORP.

Fig 72: Vehicle Speed Sensor (M/T)

G00262469

Courtesy of GENERAL MOTORS CORP.

Fig 73: Clutch Pedal Position (CPP) Switch

G00262468

Courtesy of GENERAL MOTORS CORP.

Fig 74: Brake Fluid Level Switch

G00262467

Courtesy of GENERAL MOTORS CORP.

Fig 75: Center Of Floor

G00262466

Courtesy of GENERAL MOTORS CORP.

Fig 76: Left Strut Tower

G00262470

Courtesy of GENERAL MOTORS CORP.

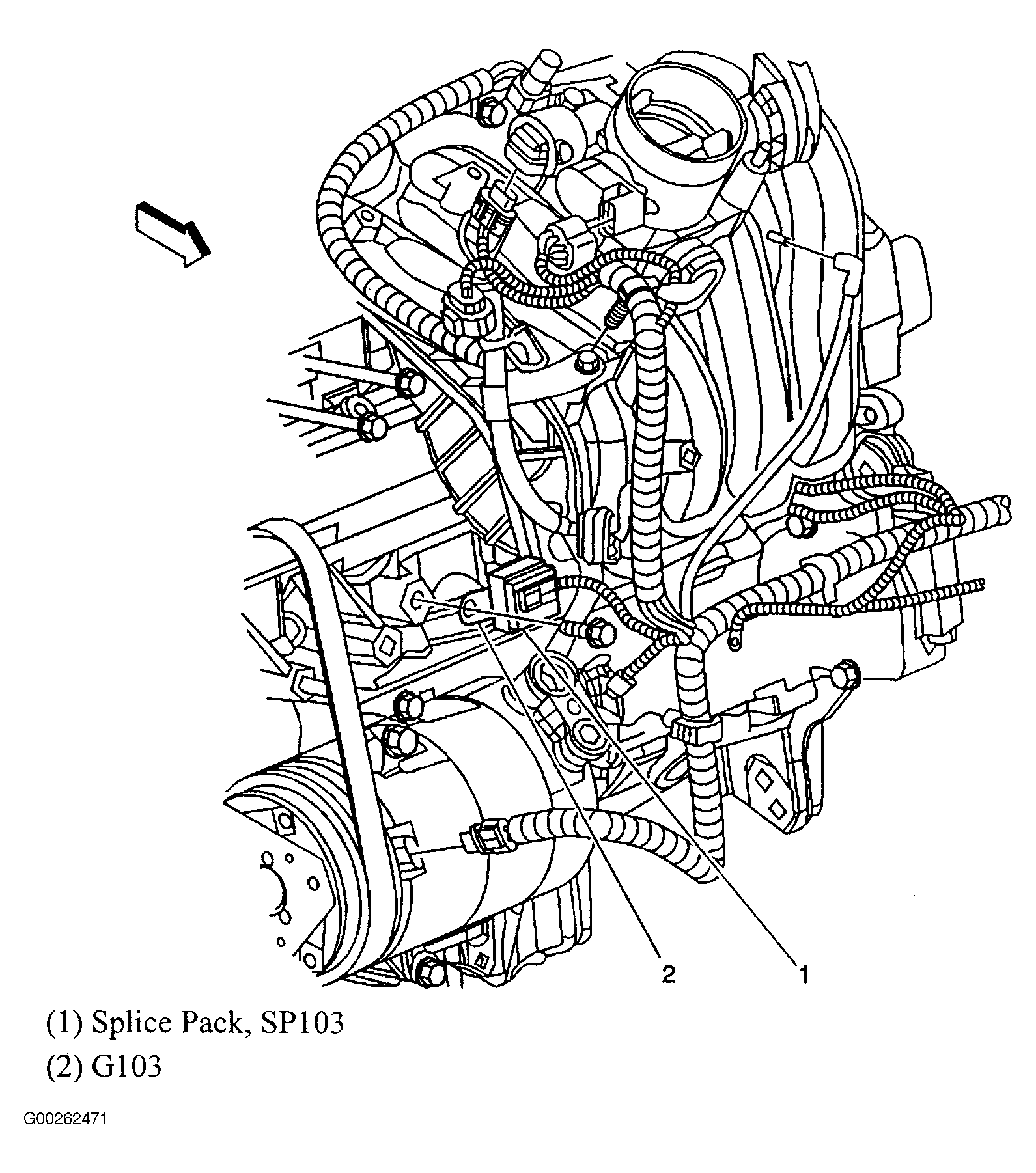

Fig 77: Left Front Of Engine (2.2L)

G00262471

Courtesy of GENERAL MOTORS CORP.

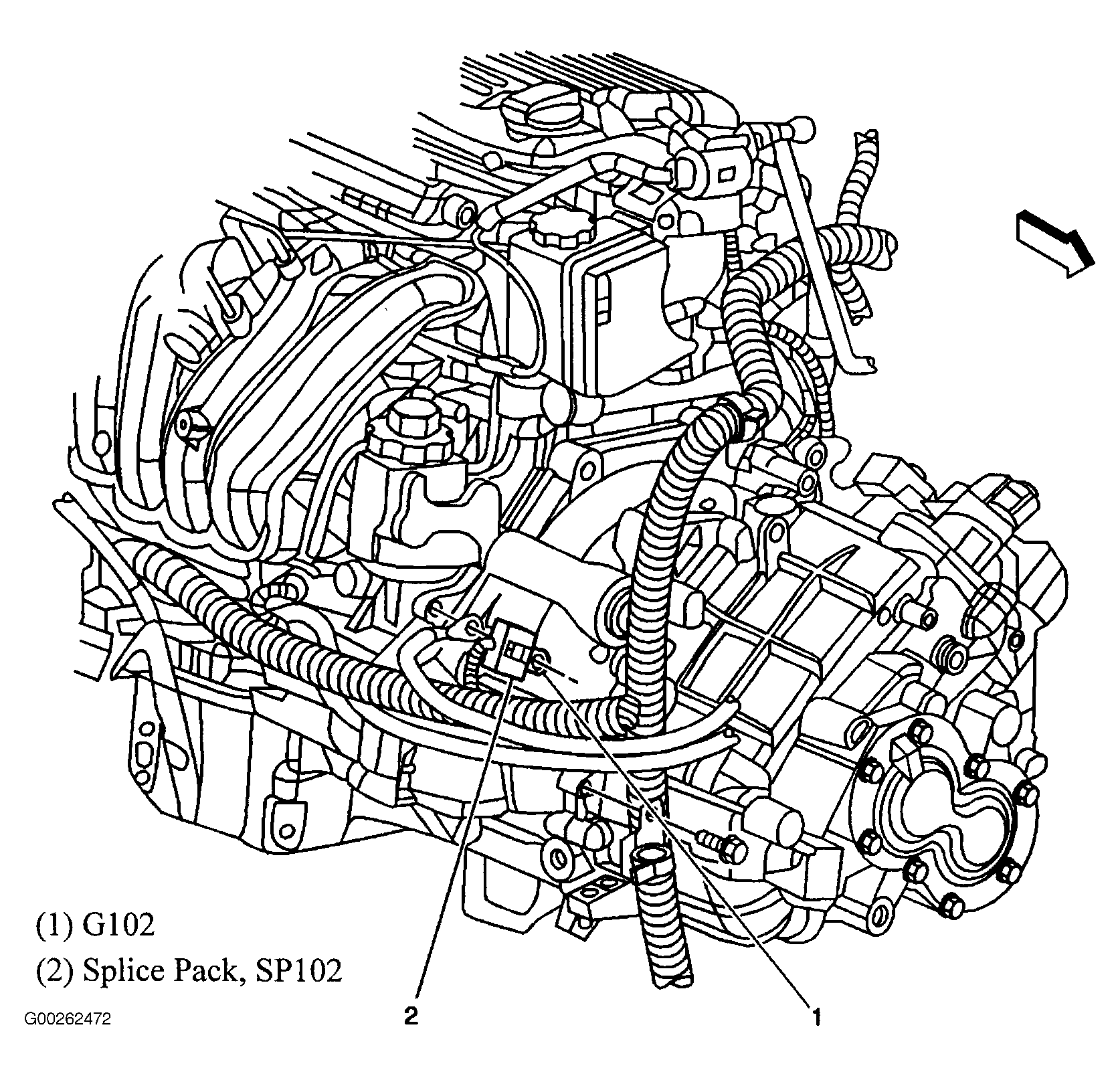

Fig 78: Rear Of Engine (2.2L)

G00262472

Courtesy of GENERAL MOTORS CORP.

Fig 79: Left Side Of Engine (3.4L)

G00262473

Courtesy of GENERAL MOTORS CORP.

Fig 80: Below Left Side Of Dash

G00262474

Courtesy of GENERAL MOTORS CORP.

Fig 81: Right Front Door

G00262475

Courtesy of GENERAL MOTORS CORP.

Fig 82: Left Side Of Dash

G00262476

Courtesy of GENERAL MOTORS CORP.

Fig 83: Rear Of Transmission

G00262477

Courtesy of GENERAL MOTORS CORP.

Fig 84: Left Rear Door

G00262478

Courtesy of GENERAL MOTORS CORP.

Fig 85: Right Rear Door

G00259078

Courtesy of GENERAL MOTORS CORP.

Fig 86: Headliner

G00259079

Courtesy of GENERAL MOTORS CORP.

Fig 87: Left Front Floor

G00259080

Courtesy of GENERAL MOTORS CORP.

Fig 88: Right Front Floor

G00261468

Courtesy of GENERAL MOTORS CORP.

Fig 89: Left Rear Package Shelf

G00261469

Courtesy of GENERAL MOTORS CORP.

Fig 90: Right Rear Package Shelf

G00261470

Courtesy of GENERAL MOTORS CORP.
