Door Lock/Indicator Schematics

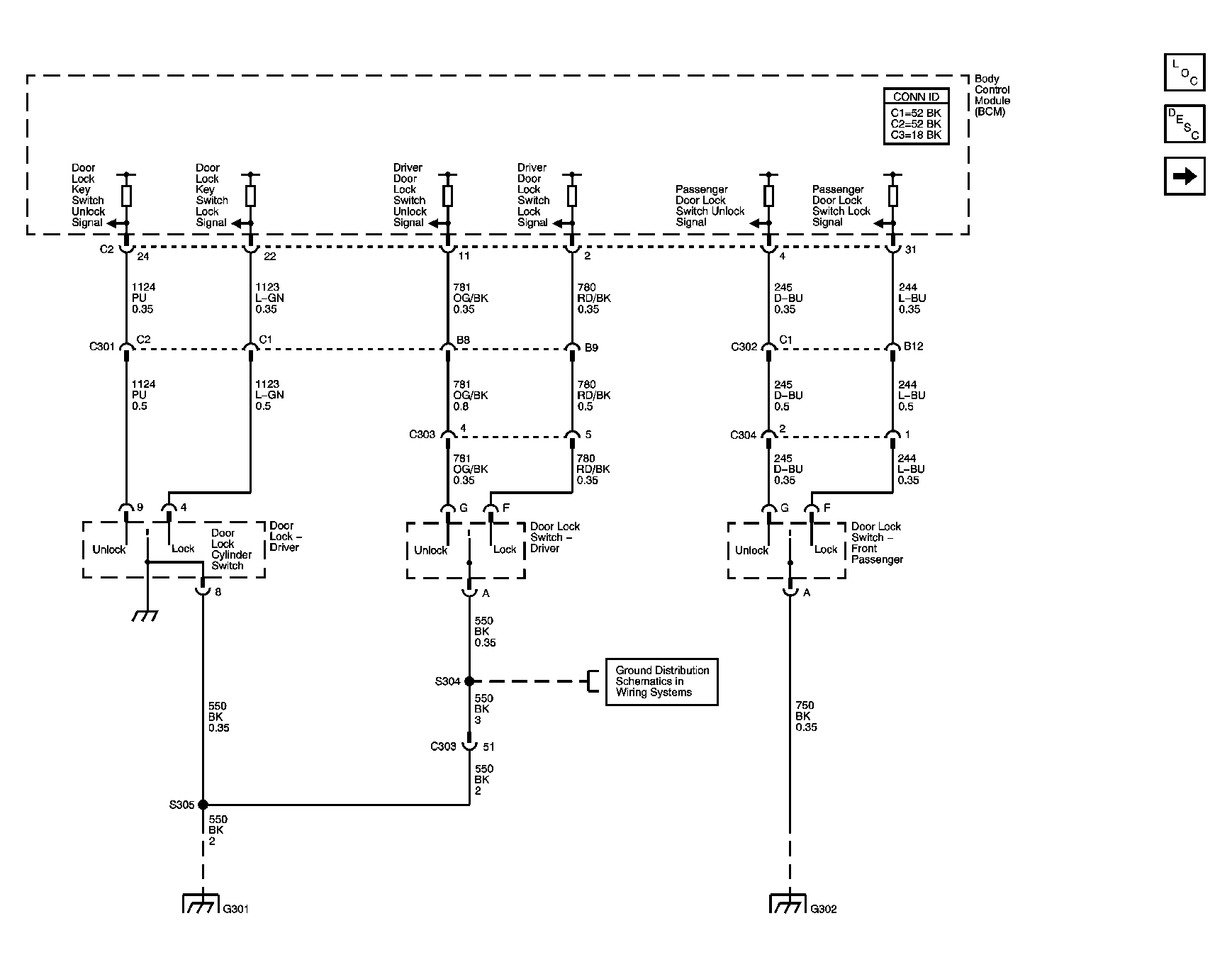

Fig 1: Door Lock Switches

Courtesy of GENERAL MOTORS CORP.

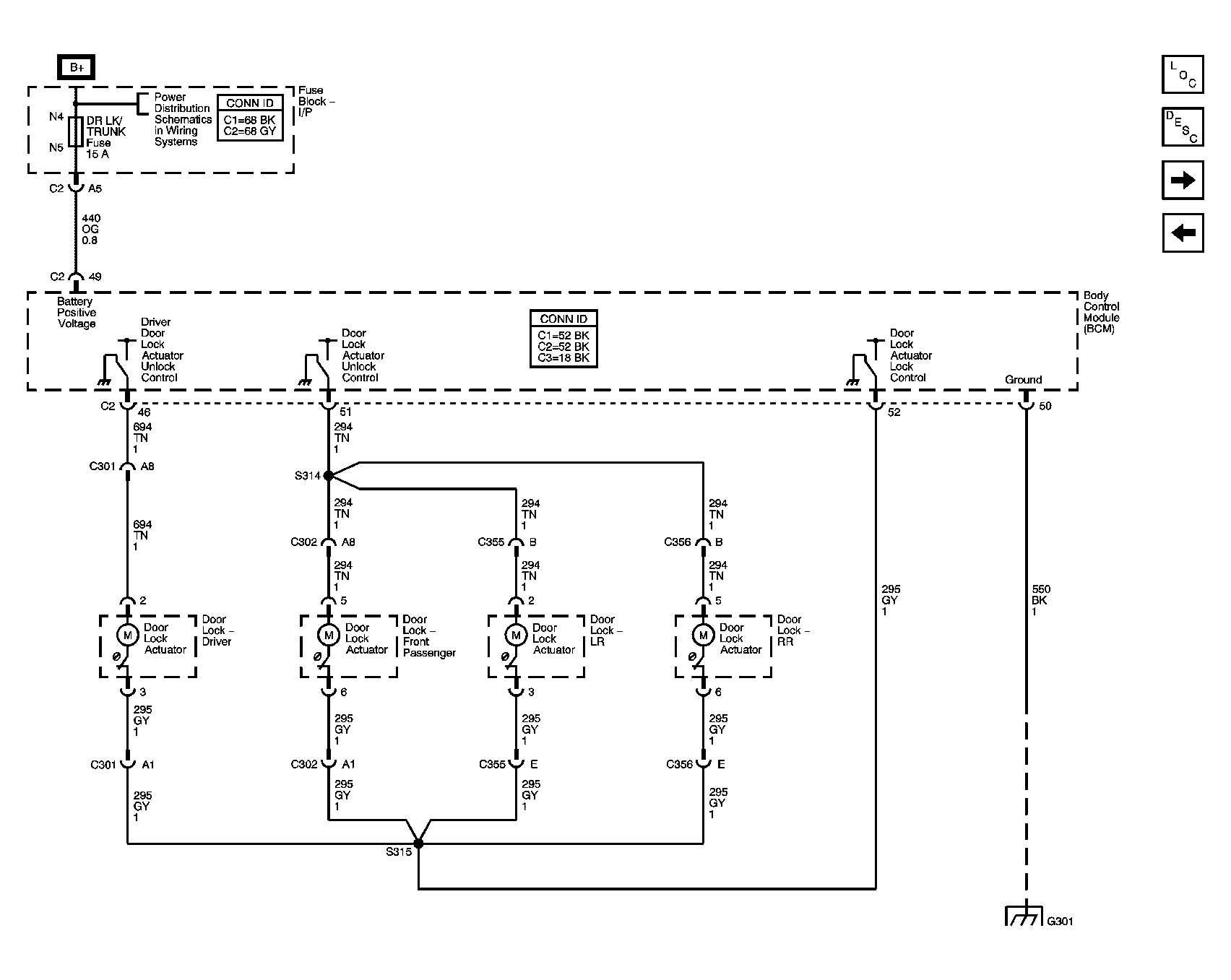

Fig 2: Door Lock Actuators

Courtesy of GENERAL MOTORS CORP.

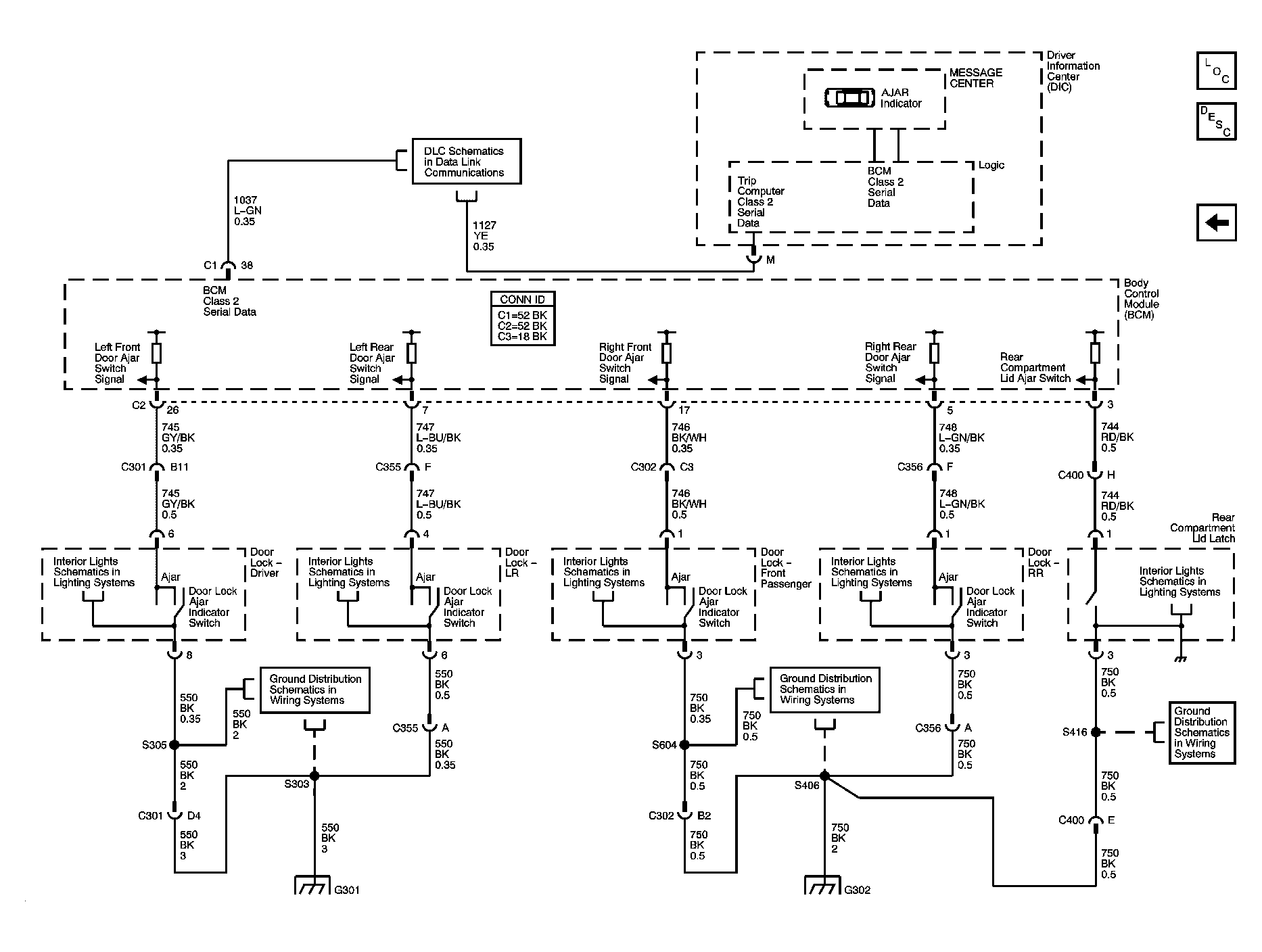

Fig 3: Door Ajar Indicators

Courtesy of GENERAL MOTORS CORP.
