Seat Belt Component Views

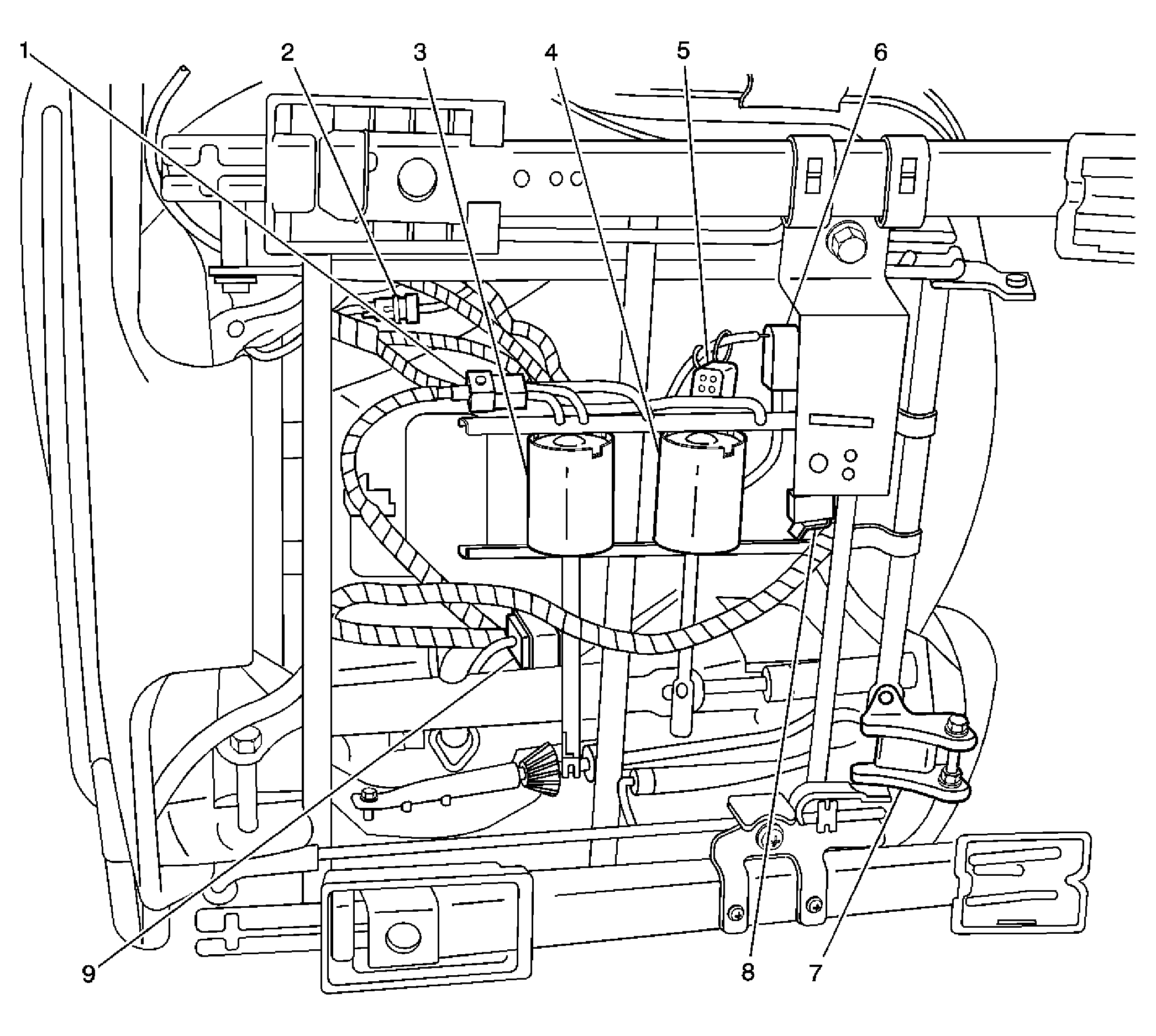

Fig 1: Under The Driver Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Motor Assembly - Driver Connector
2	Seat Belt Switch, Connector
3	Front Vertical Motor
4	Horizontal Motor
5	Heated Seat Element - Driver Back
6	C311
7	Hinge
8	C316
9	C312
