TAP Shift Circuit Performance: Notes

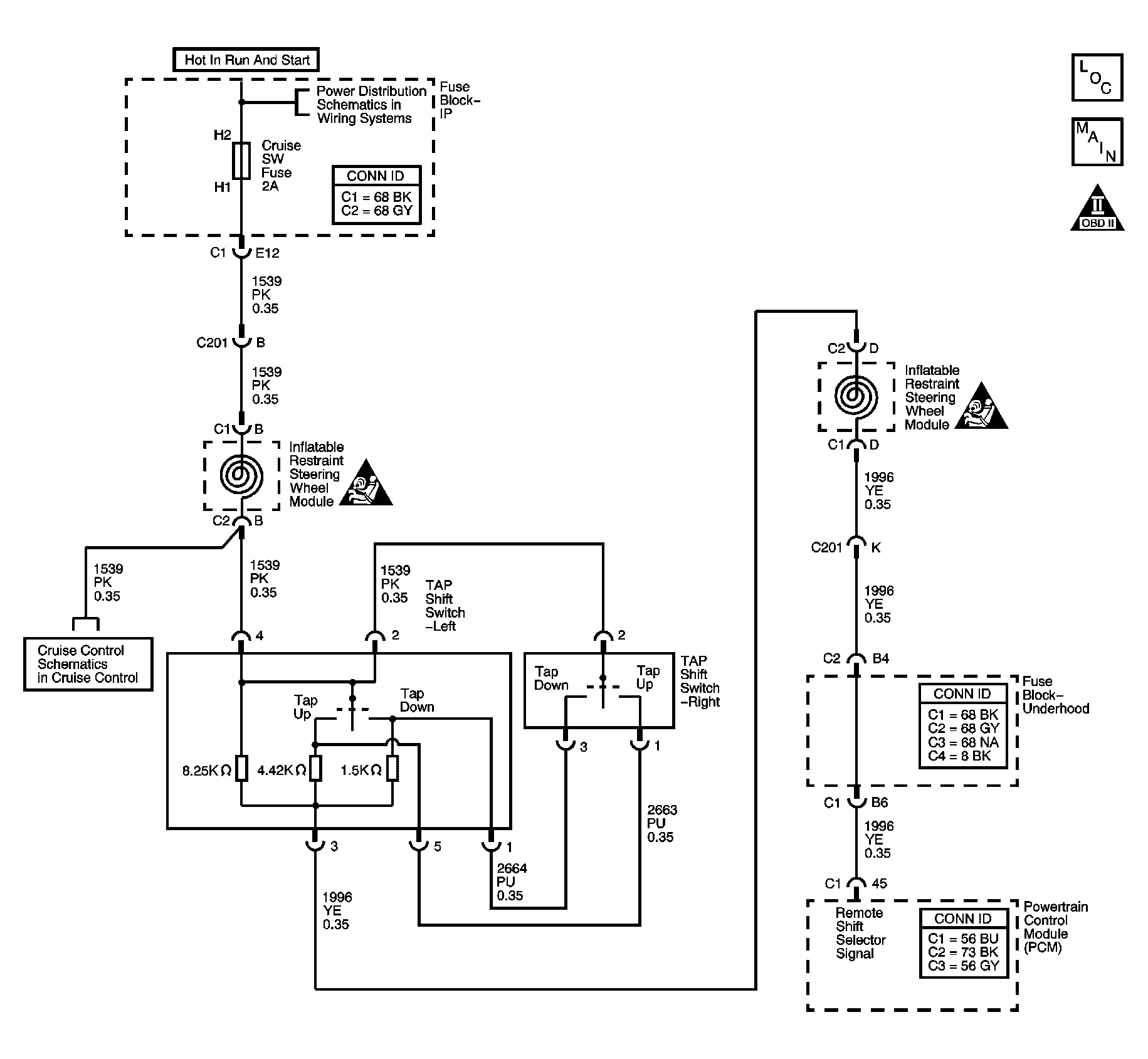

Fig 1: TAP Shift System Diagram
GM1214721Courtesy of GENERAL MOTORS CORP.
