Stationary Windows Component Views

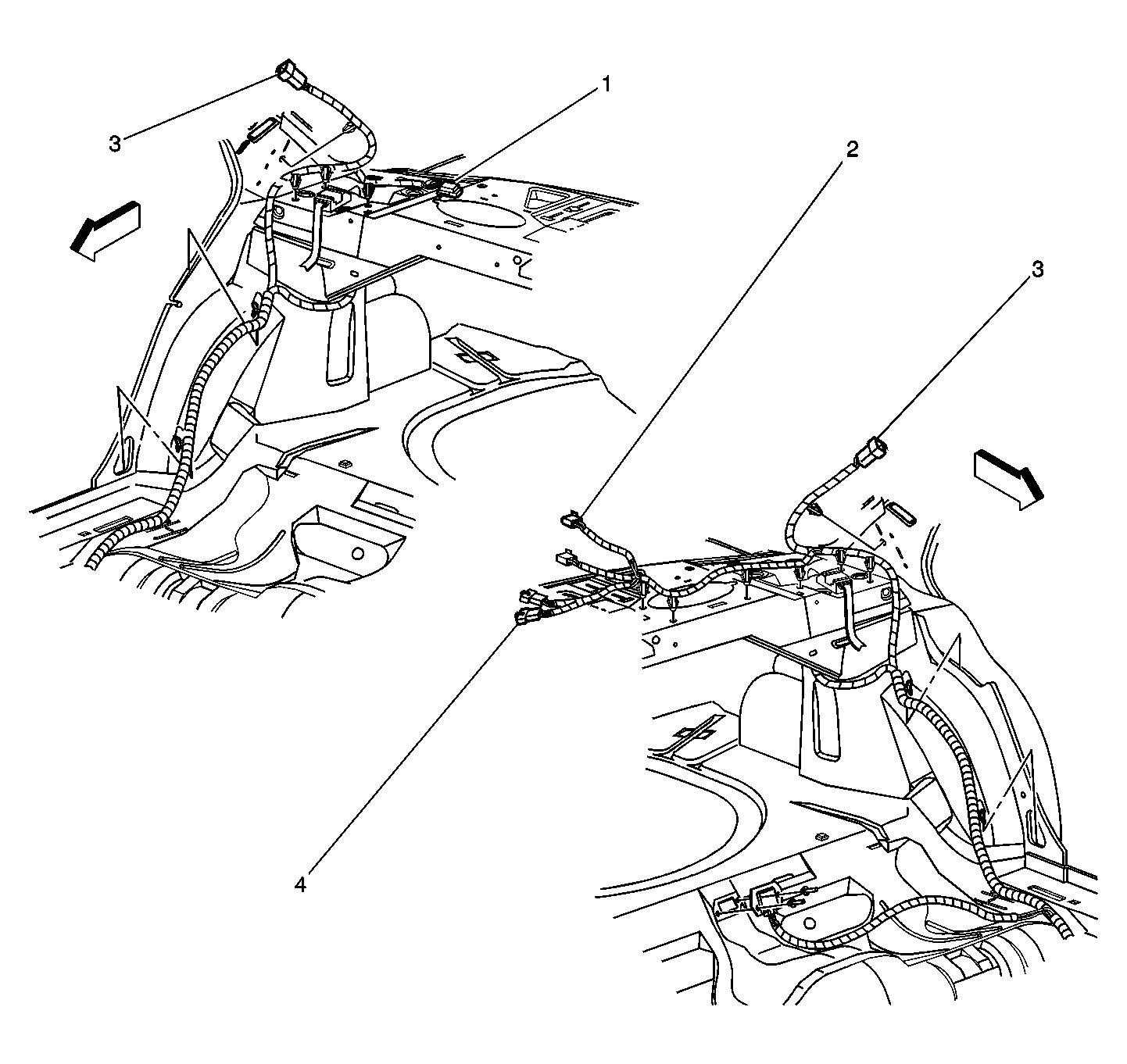

Fig 1: Rear Of Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker Connector
2	Luggage Compartment Lamp Connector
3	Rear Window Defogger Connector
3	Rear Window Defogger Connector
4	High-Mounted Stop Lamp Assembly Connector (- T43)
