Power Roof Systems Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

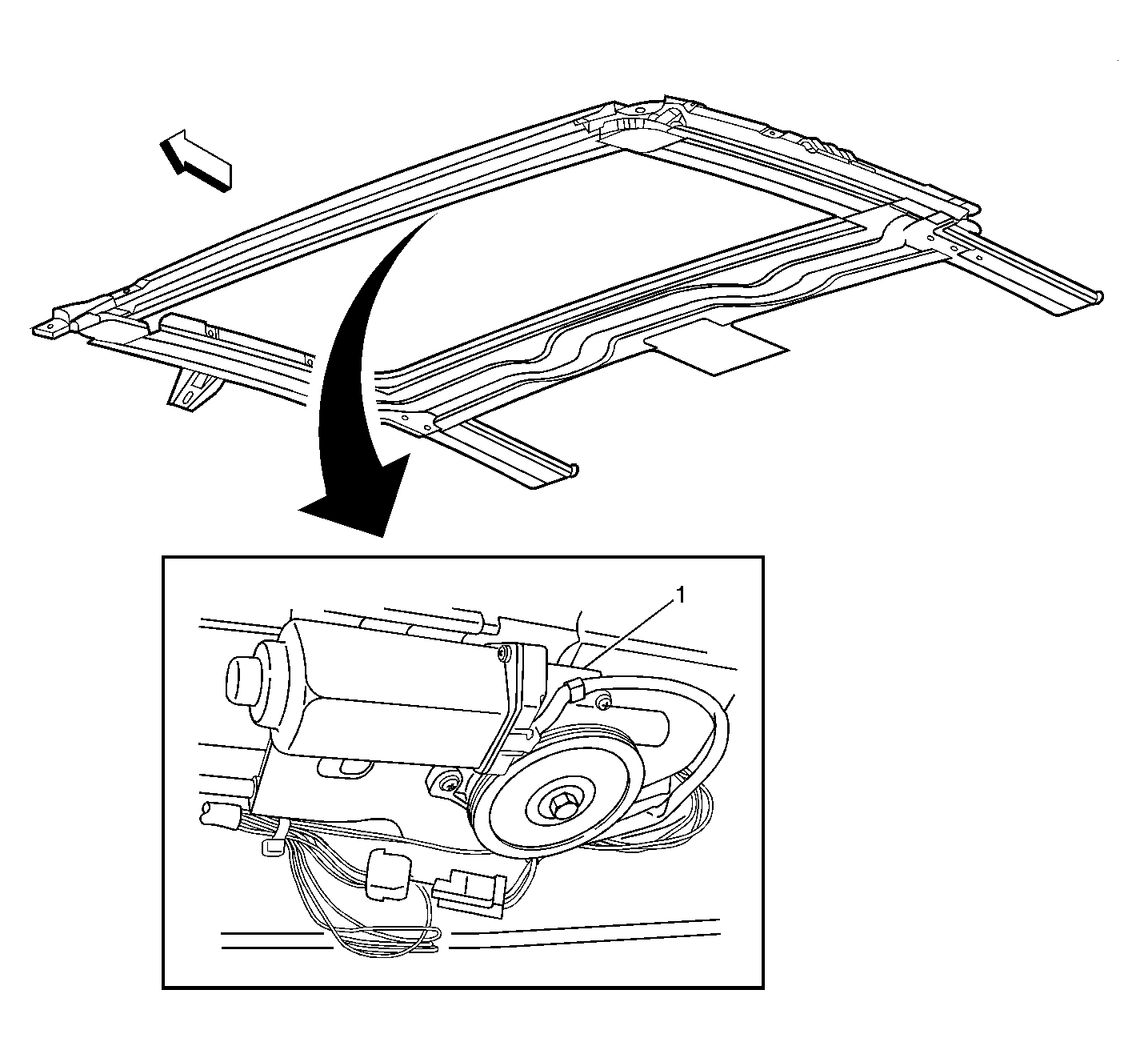

Fig 1: Sunroof Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Motor/Actuator

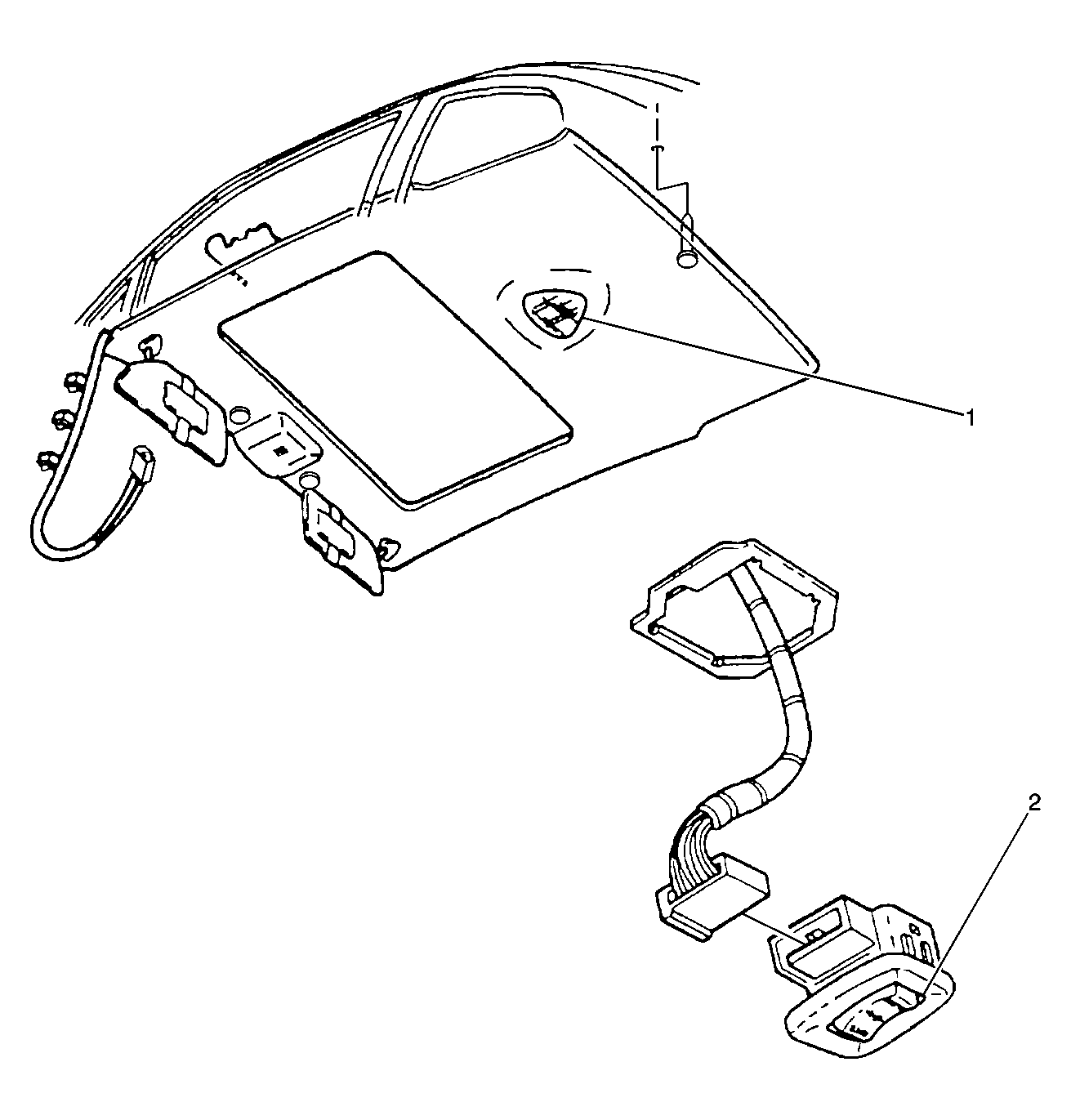

Fig 2: Dome Lamp & Sunroof Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp
2	Sunroof Switch
