ABS Schematics

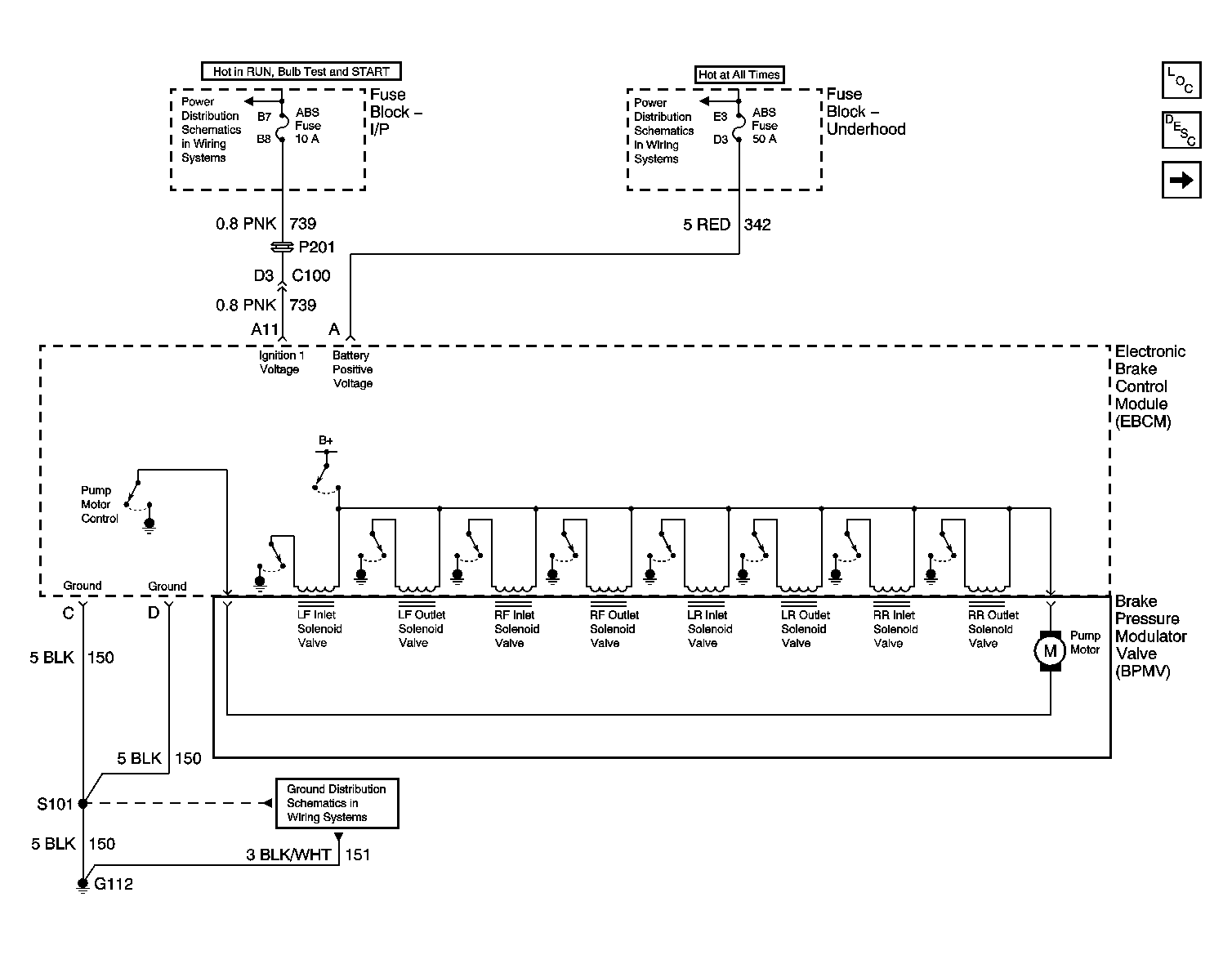

Fig 1: Module Power & Ground Schematic

GM787953

Courtesy of GENERAL MOTORS CORP.

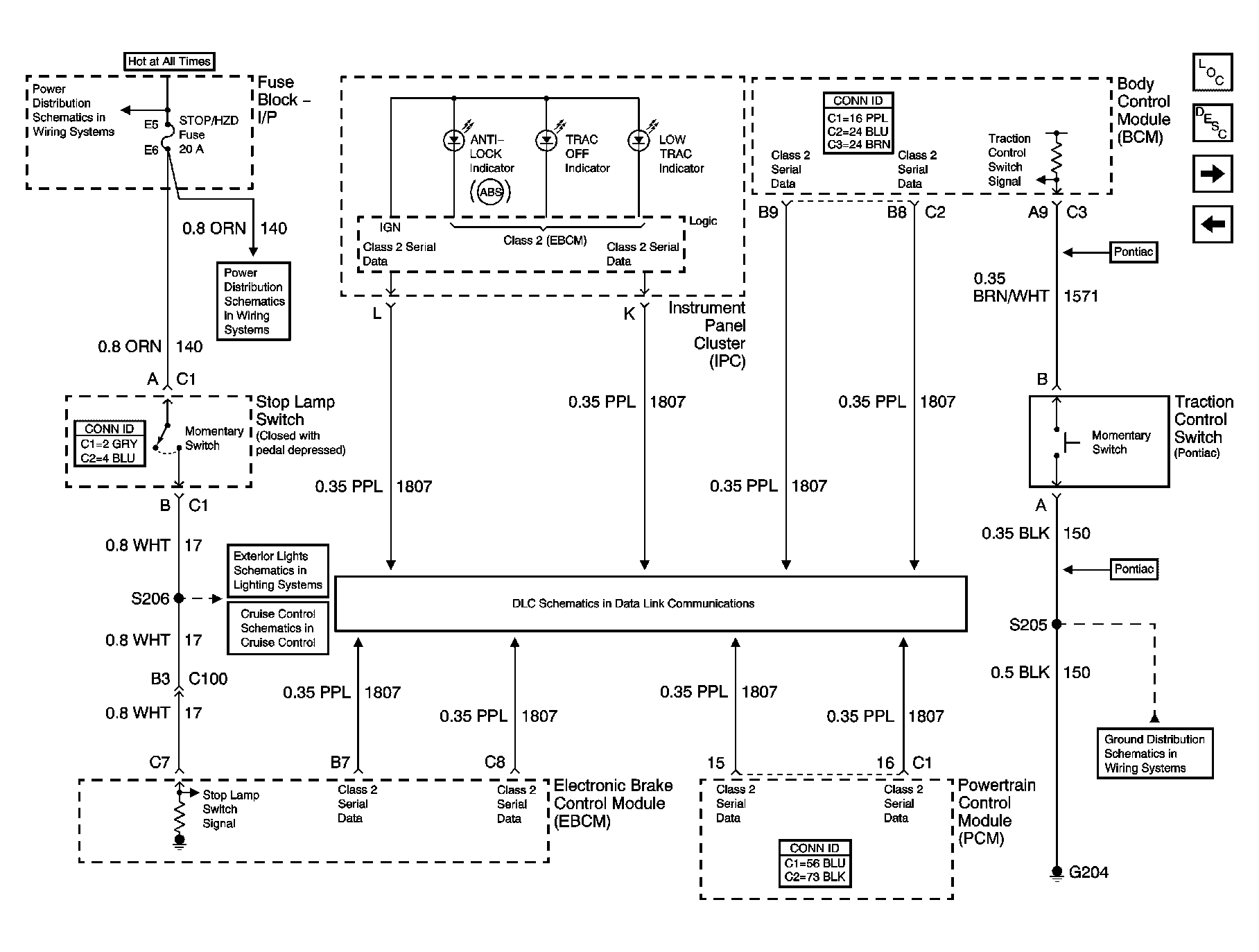

Fig 2: Indicators & Switches Schematic

GM860380

Courtesy of GENERAL MOTORS CORP.

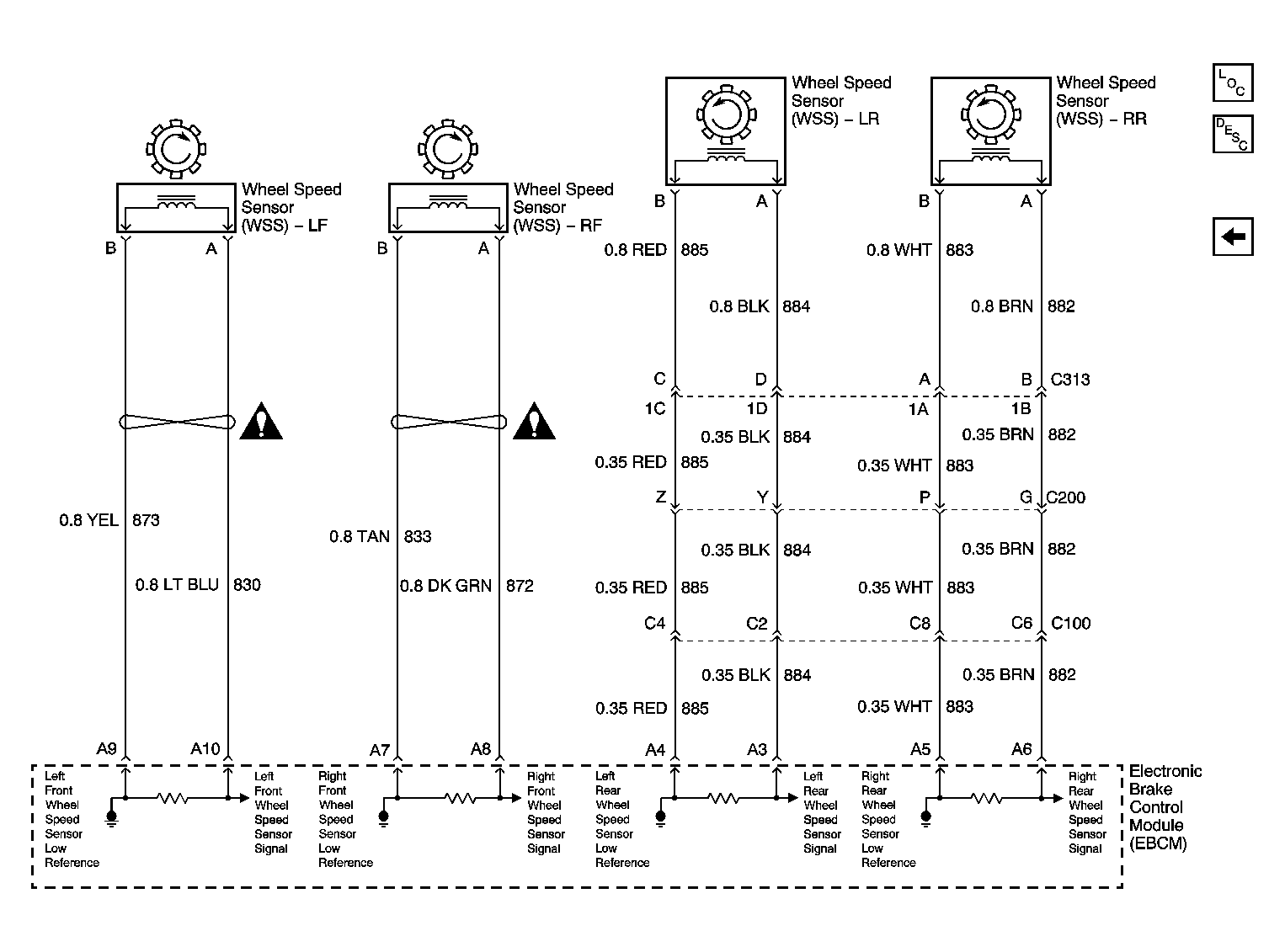

Fig 3: Wheel Speed Sensors Schematic

GM787955

Courtesy of GENERAL MOTORS CORP.
