Door Lock/Indicator Schematics

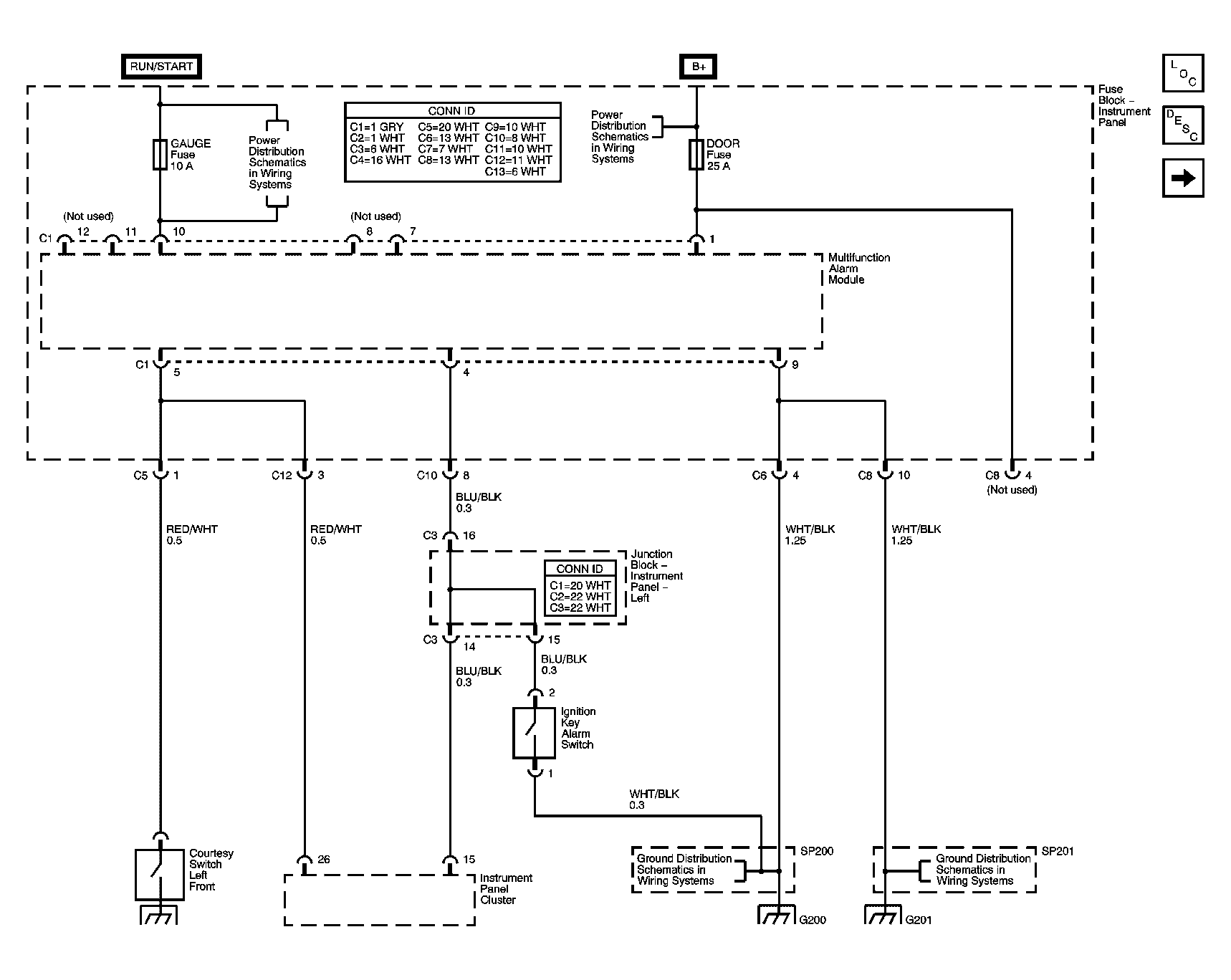

Fig 1: Gauge and Door Fuse, Multifunction Alarm Module Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Multifunction Alarm Module, Rear Door Lock, Glass Hatch and Tailgate Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Lock Switches and Front Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Multifunction Alarm Module and Courtesy Switches Schematic

Courtesy of GENERAL MOTORS CORP.
