Power Window Schematics
Power Window Schematics

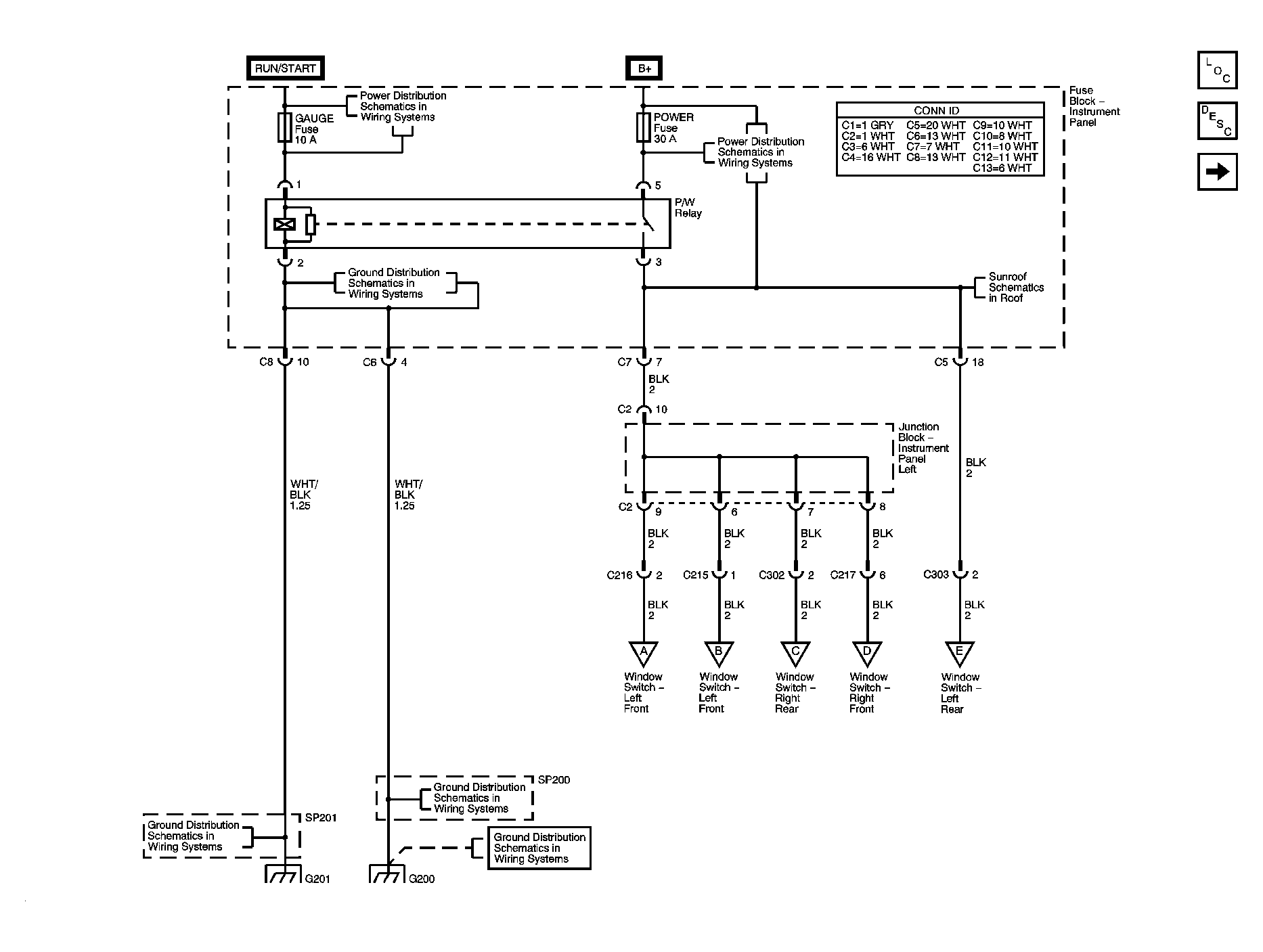

Fig 1: Power Windows Schematic (1 of 2)
Courtesy of GENERAL MOTORS CORP.

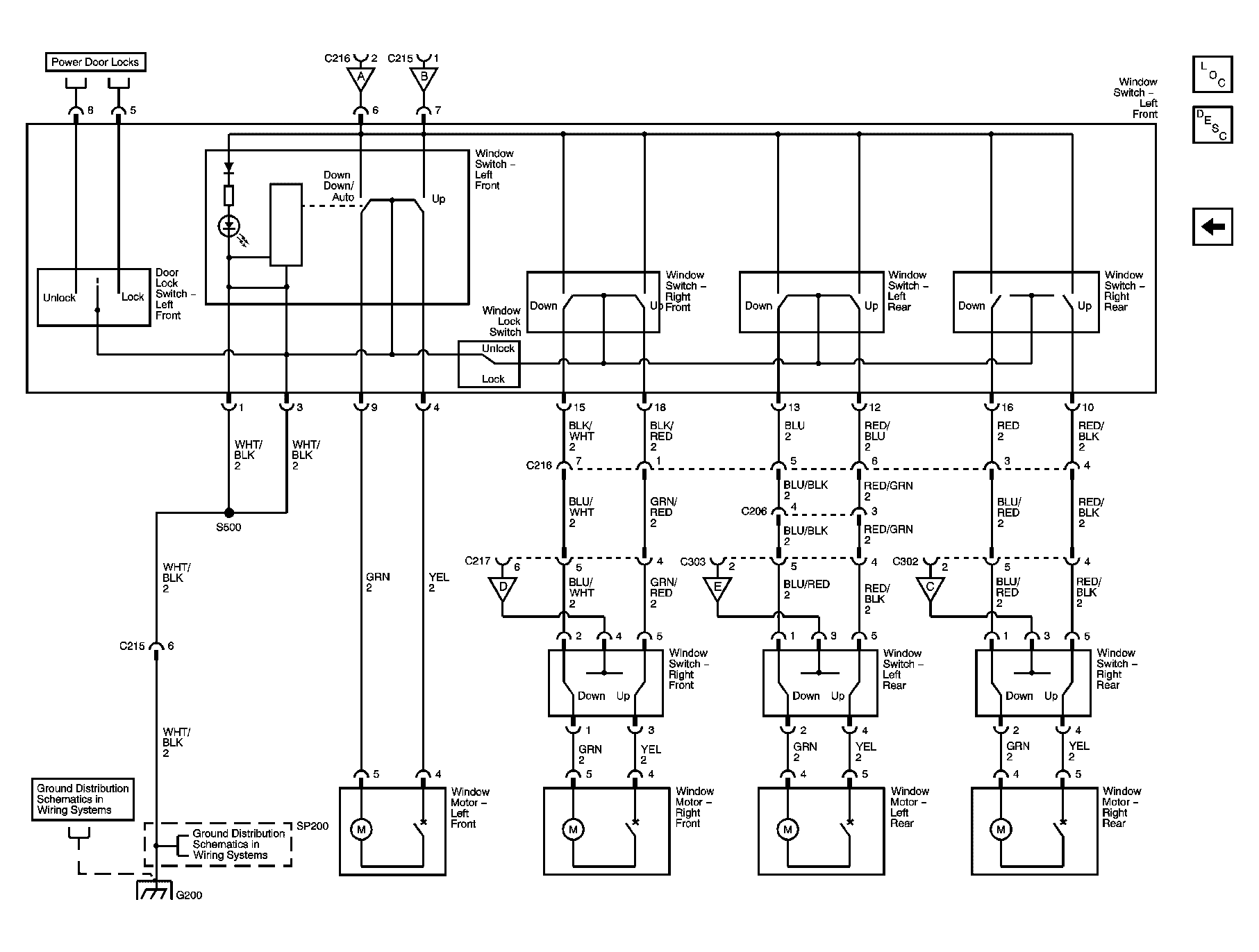

Fig 2: Power Windows Schematic (2 of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
