ABS Component Views

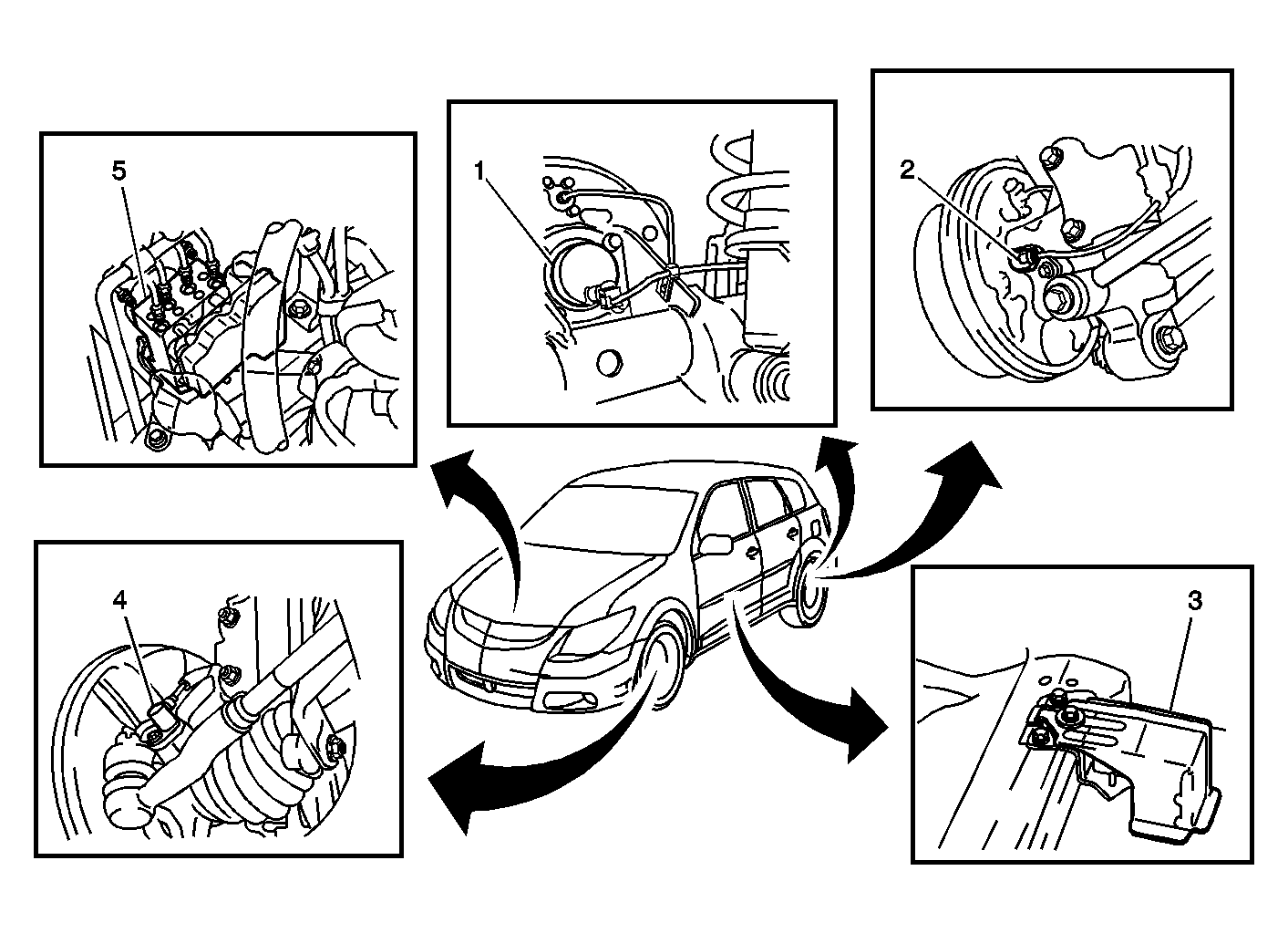

Fig 1: ABS Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wheel Speed Sensor FWD
2	Rear Wheel Speed Sensor AWD
3	Deceleration Sensor AWD
4	Front Wheel Speed Sensor
5	Electronic Brake Control Module (EBCM)/Brake Pressure Modulator Valve (BPMV) Assembly
