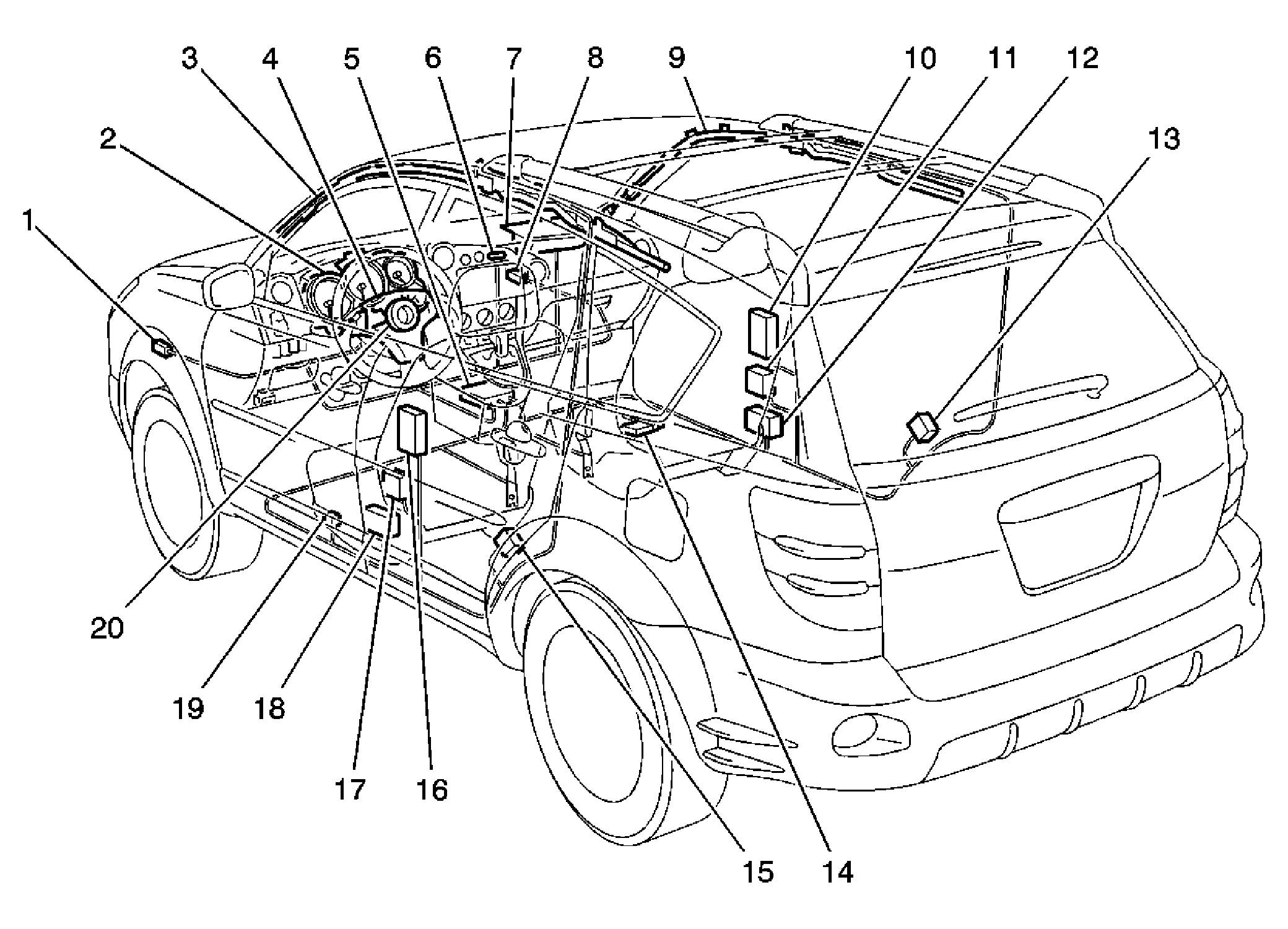

SIR Component Views
WARNING: This page is about a different car, the 2005 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Front End Sensor - Left |
| 2 | Instrument Cluster Assembly |
| 3 | Inflatable Restraint Roof Rail Module - Left |
| 4 | Inflatable Restraint Steering Wheel Module |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 6 | Inflatable Restraint I/P Module ON/OFF Indicator |
| 7 | Inflatable Restraint I/P Module |
| 8 | Inflatable Restraint Front End Sensor - Right |
| 9 | Inflatable Restraint Roof Rail Module - Right |
| 10 | Inflatable Restraint Side Impact Module - Right |
| 11 | Inflatable Restraint Side Impact Sensor - Right |
| 12 | Seat Belt Pretensioner - RF |
| 13 | Inflatable Restraint Roof Rail Impact Sensor - Right |
| 14 | Passenger Presence Module |
| 15 | Inflatable Restraint Roof Rail Impact Sensor - Left |
| 16 | Inflatable Restraint Side Impact Module - Left |
| 17 | Inflatable Restraint Side Impact Sensor - Left |
| 18 | Seat Belt Pretensioner - LF |
| 19 | Seat Position Sensor |
| 20 | Inflatable Restraint Steering Wheel Module Coil |
