Data Link Connector (DLC) Schematics

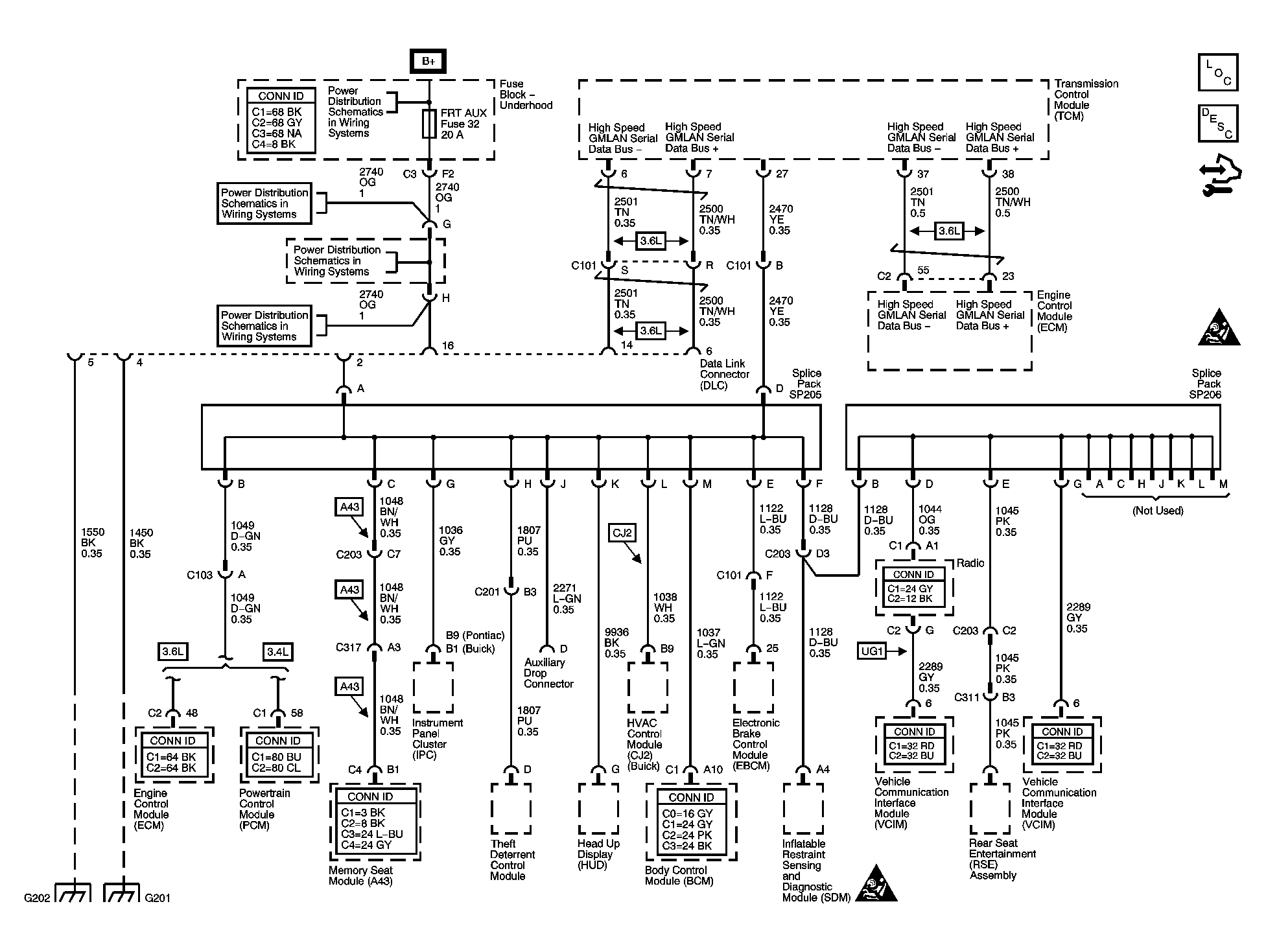

Fig 1: Data Link Connector (DLC)
GM1500669Courtesy of GENERAL MOTORS CORP.
