Outside Mirror Schematics
Outside Mirror Schematics

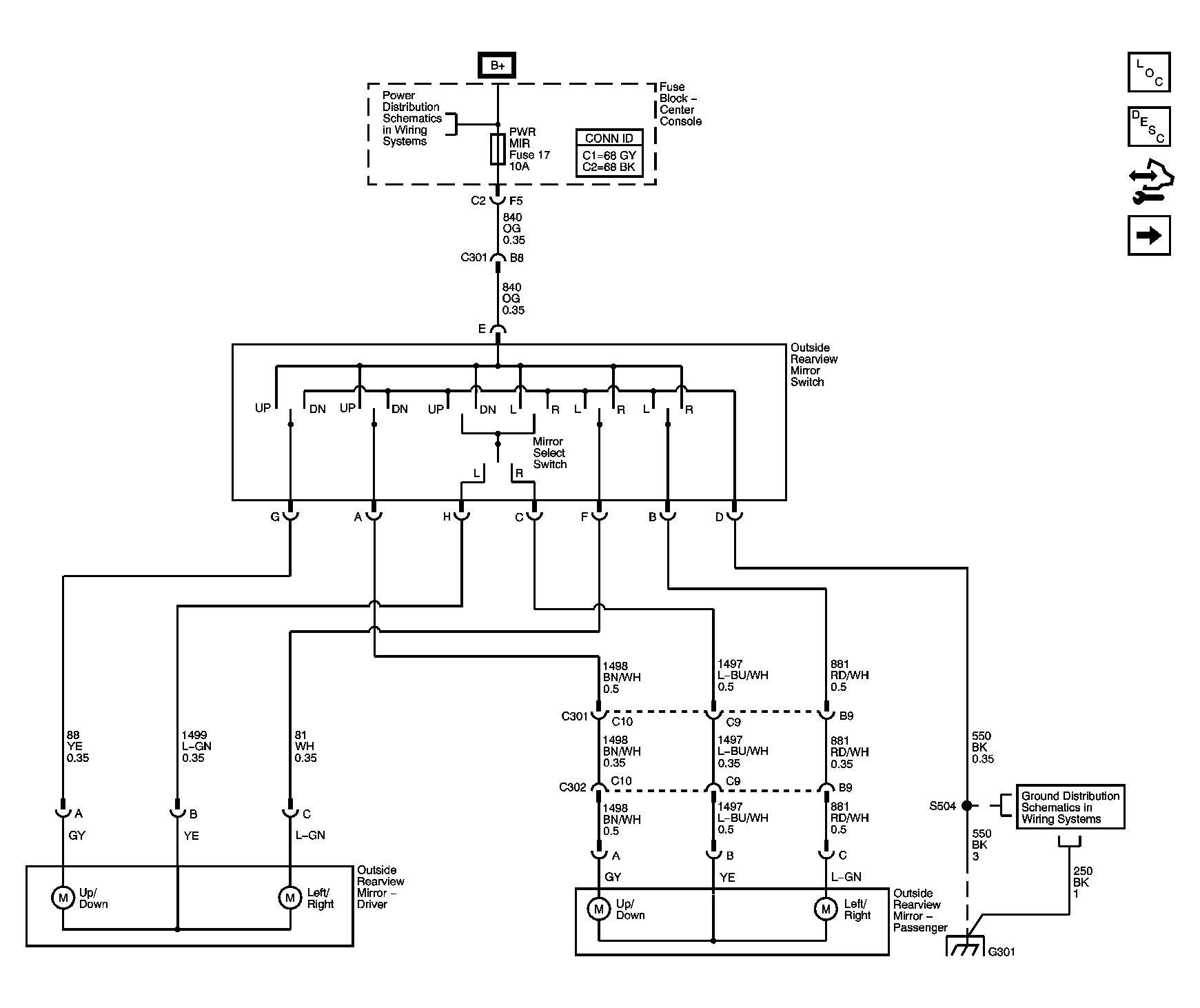

Fig 1: Base Mirrors
Courtesy of GENERAL MOTORS CORP.

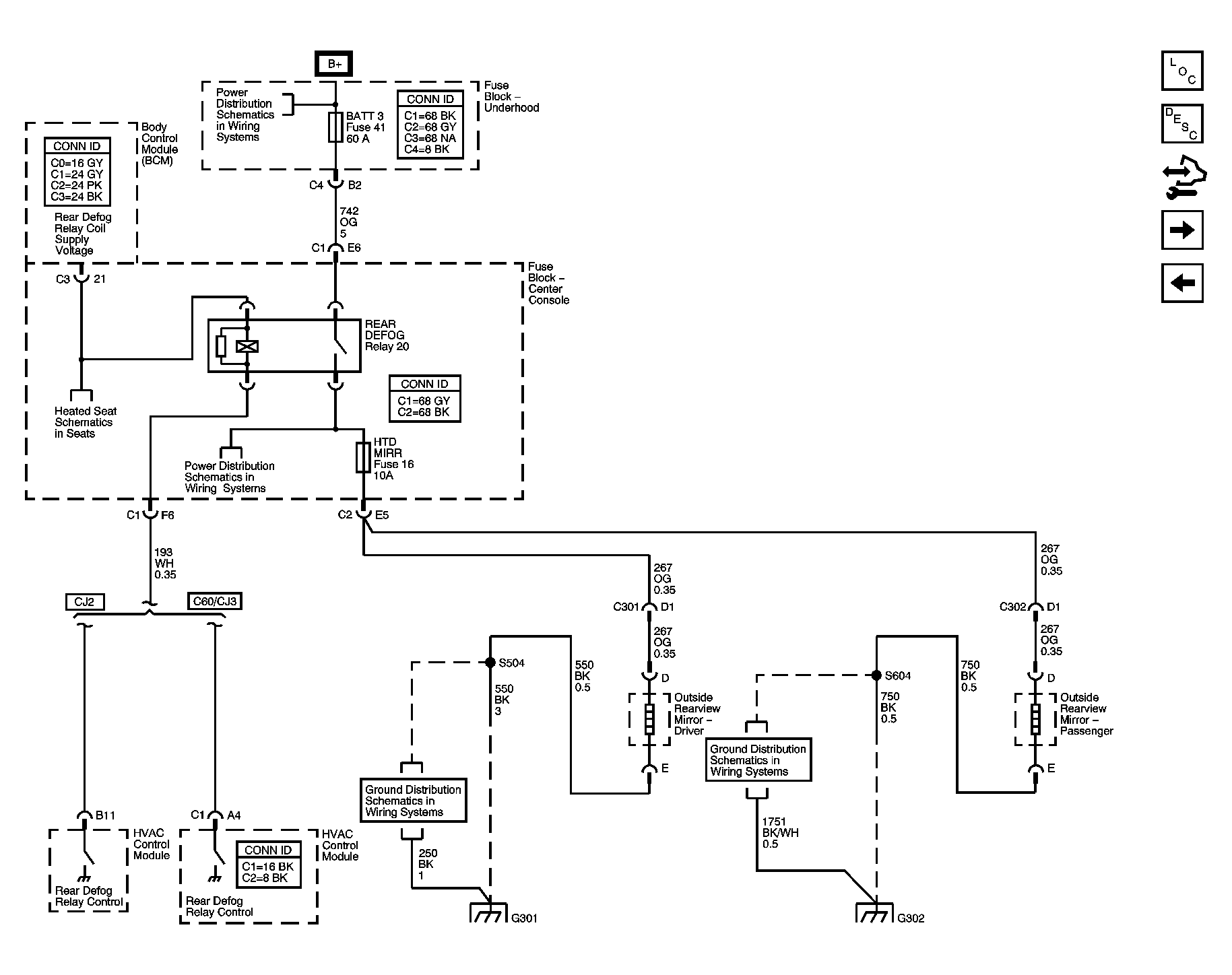

Fig 2: Heated Mirrors
Courtesy of GENERAL MOTORS CORP.

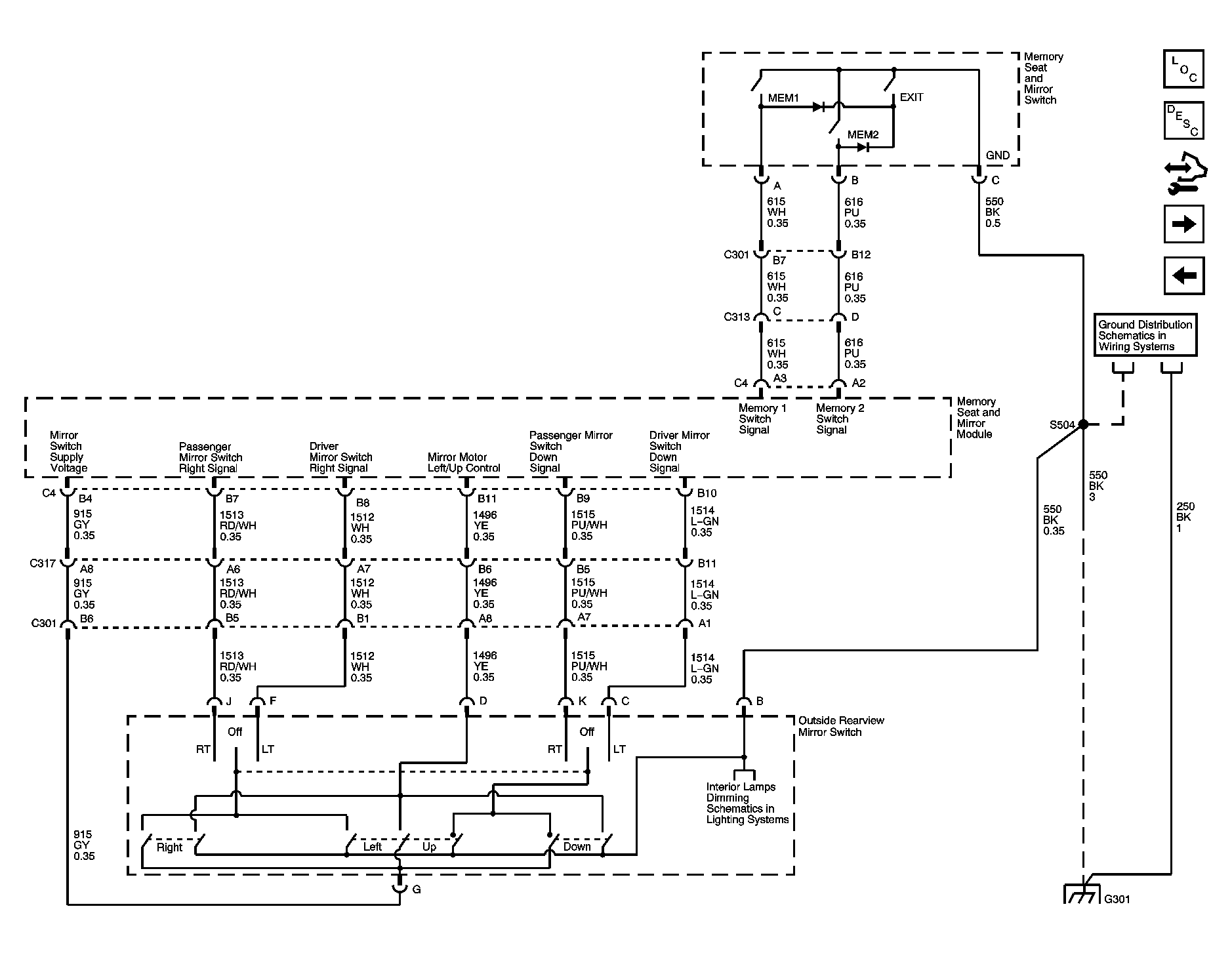

Fig 3: Memory Mirrors - Power, Ground and Switches
Courtesy of GENERAL MOTORS CORP.

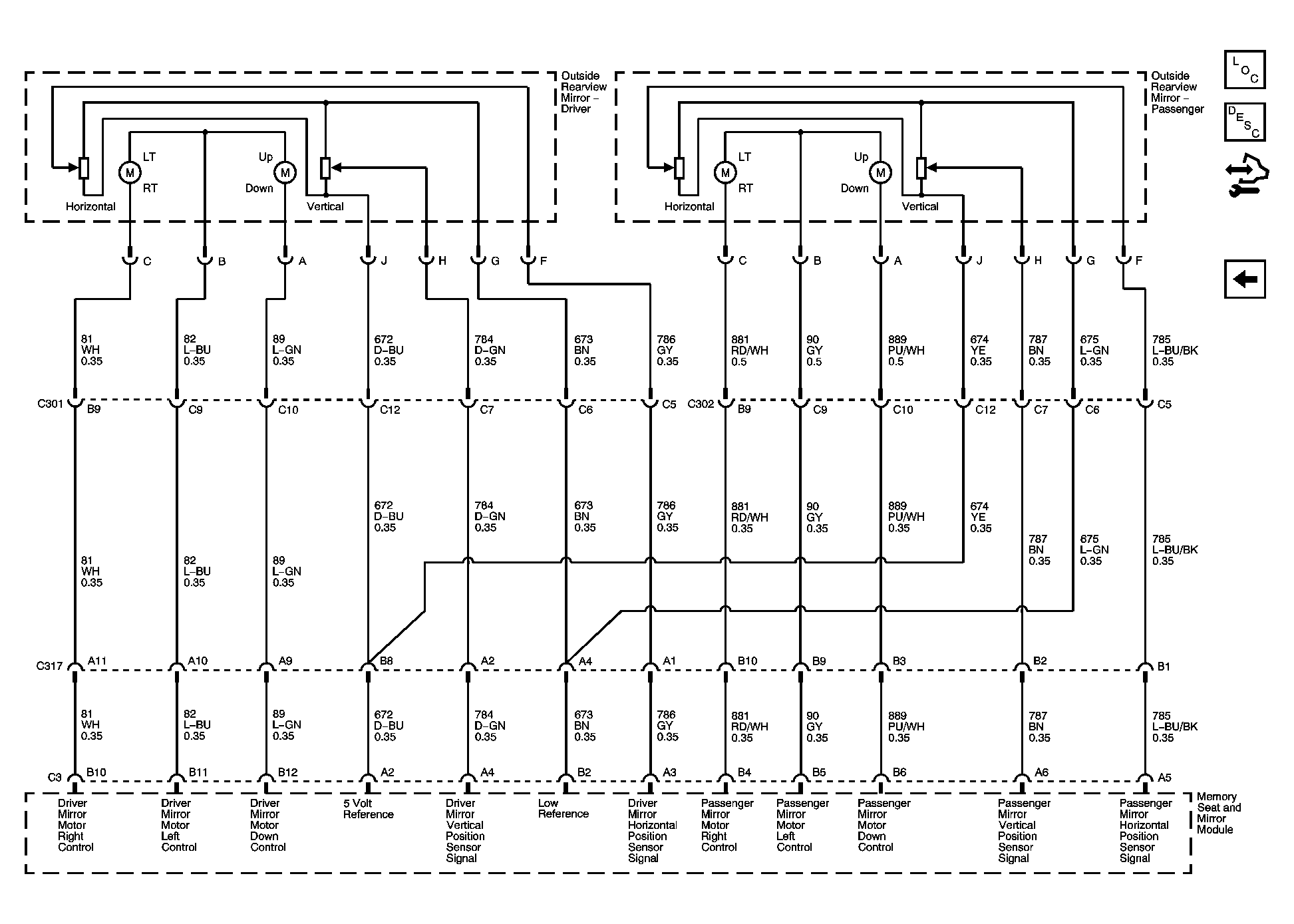

Fig 4: Memory Mirrors - Mirror Controls
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
