ABS Schematics

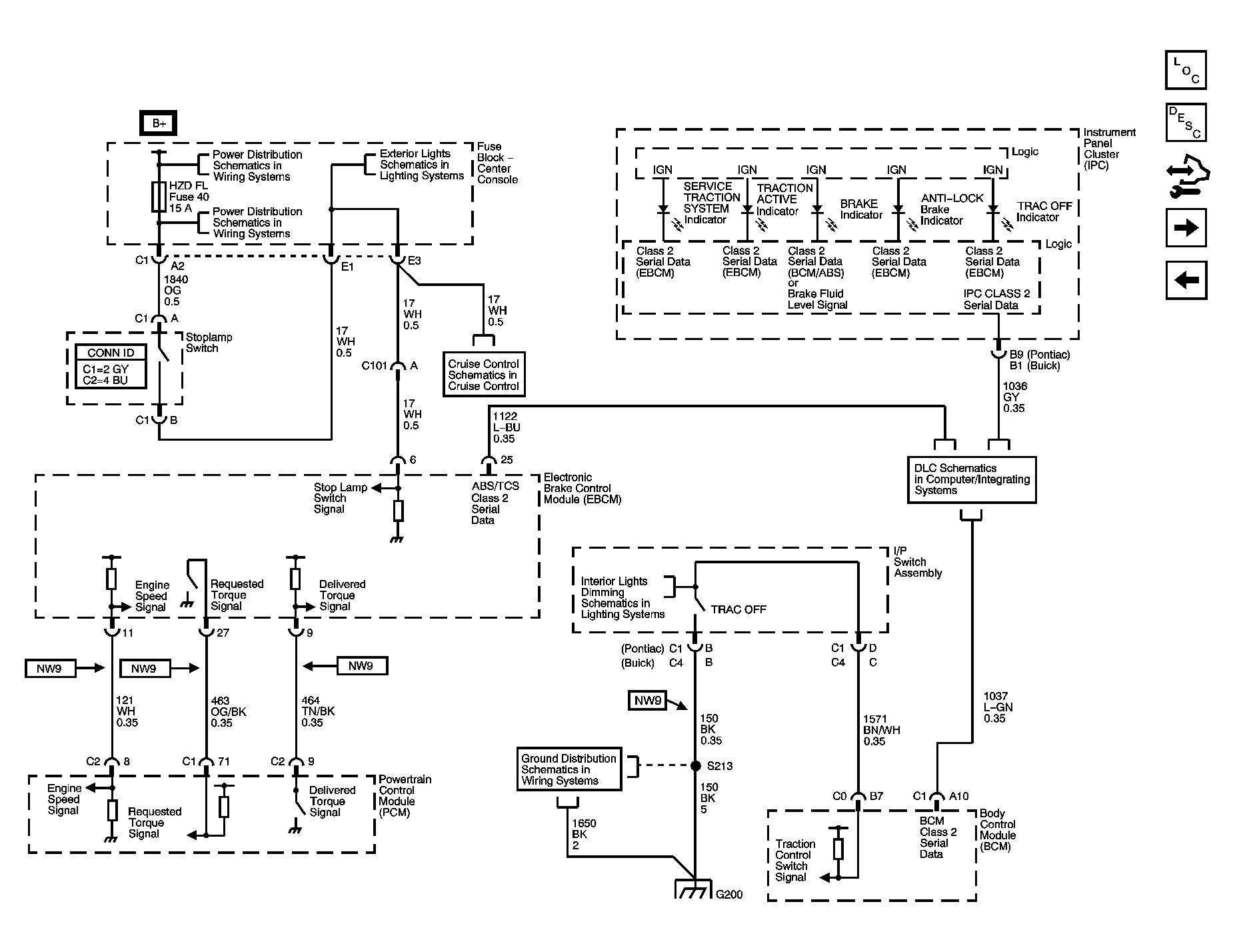

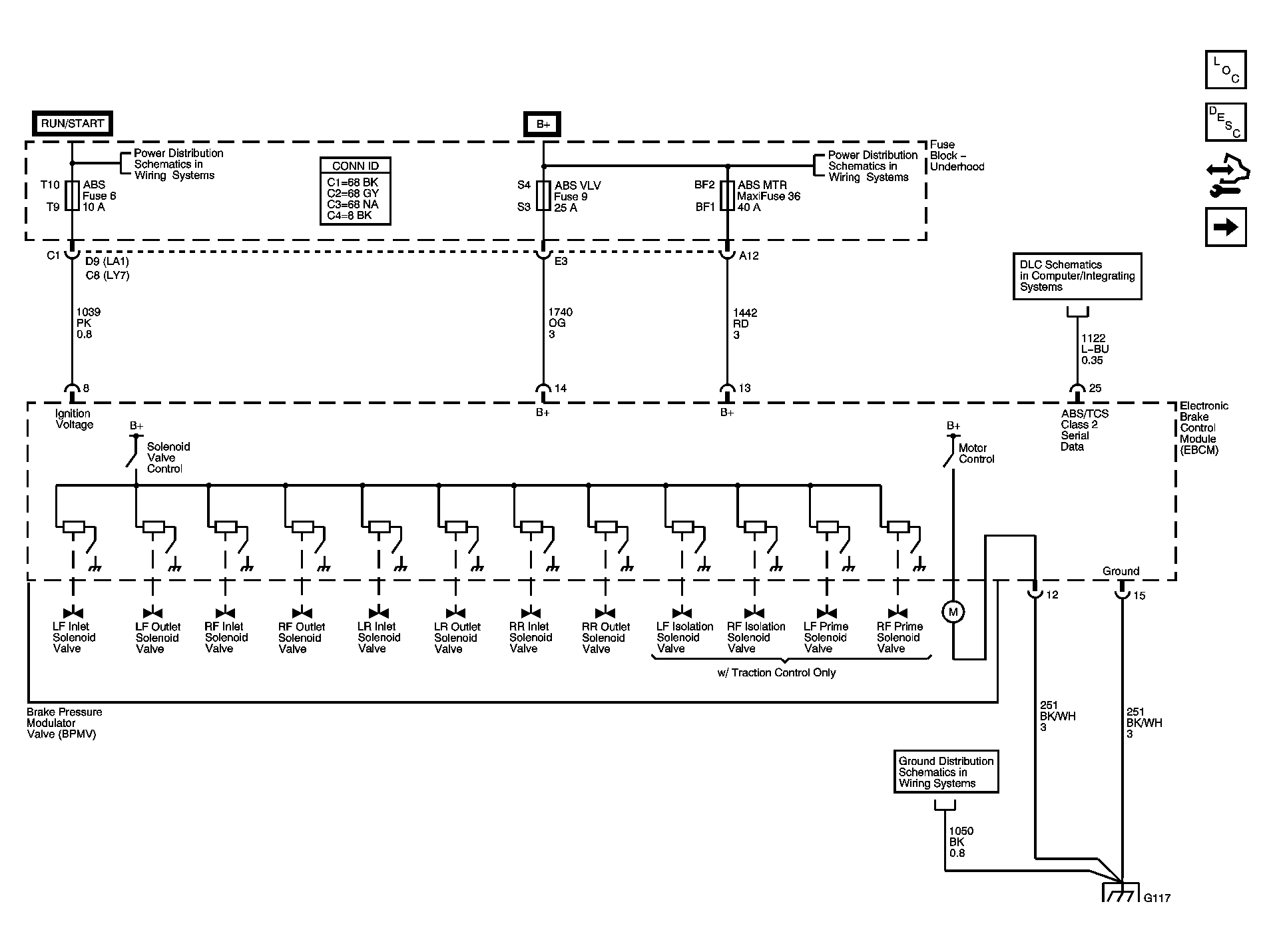

Fig 1: Brake Pressure Modulation, Ground, Power, and Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Fig 2: DLC, Indicators, and Traction Control Switch - 3.4L

Courtesy of GENERAL MOTORS CORP.

Fig 3: DLC, Indicators and Traction Control - 3.6L

Courtesy of GENERAL MOTORS CORP.

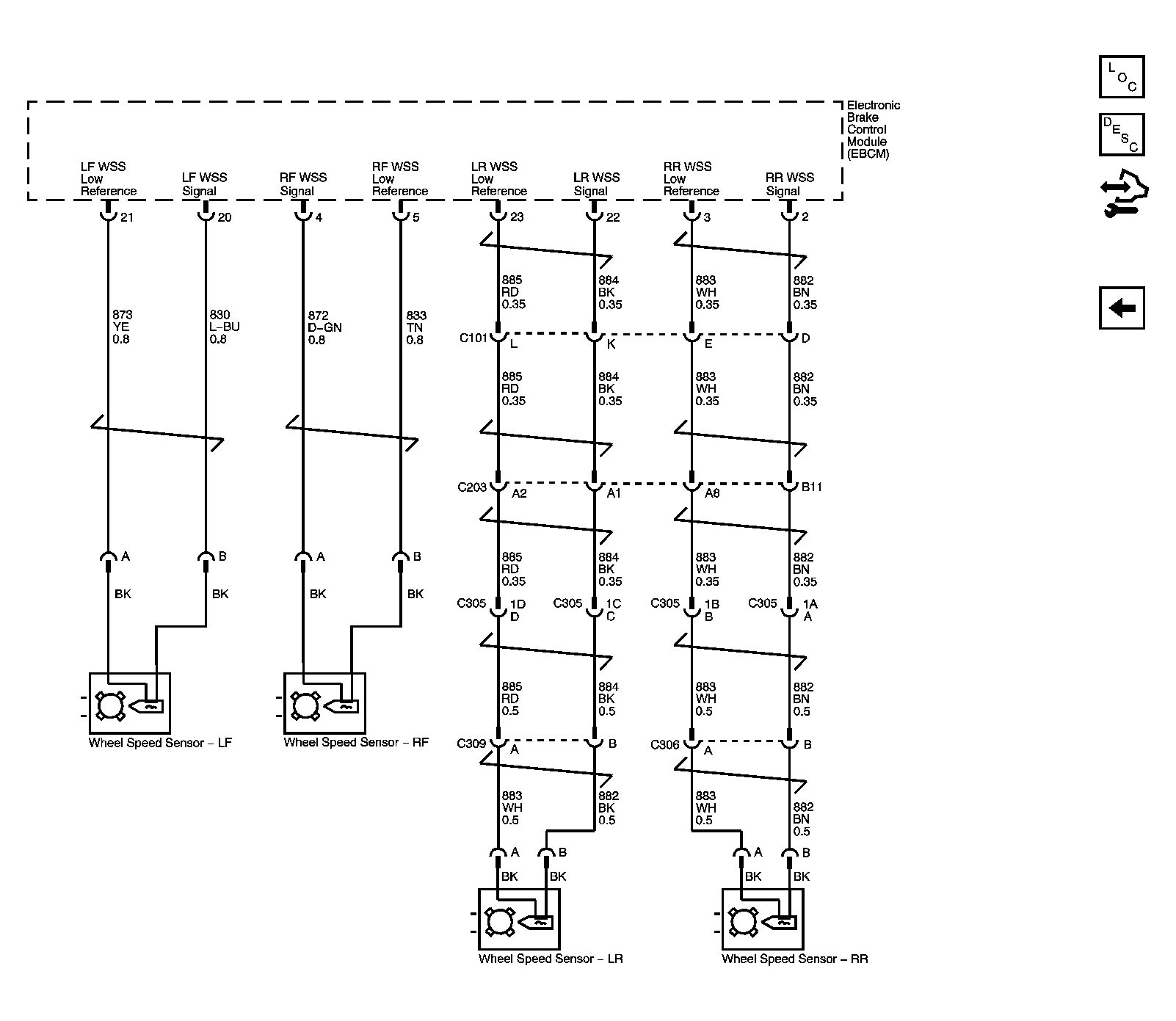

Fig 4: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.
