Starting and Charging Schematics

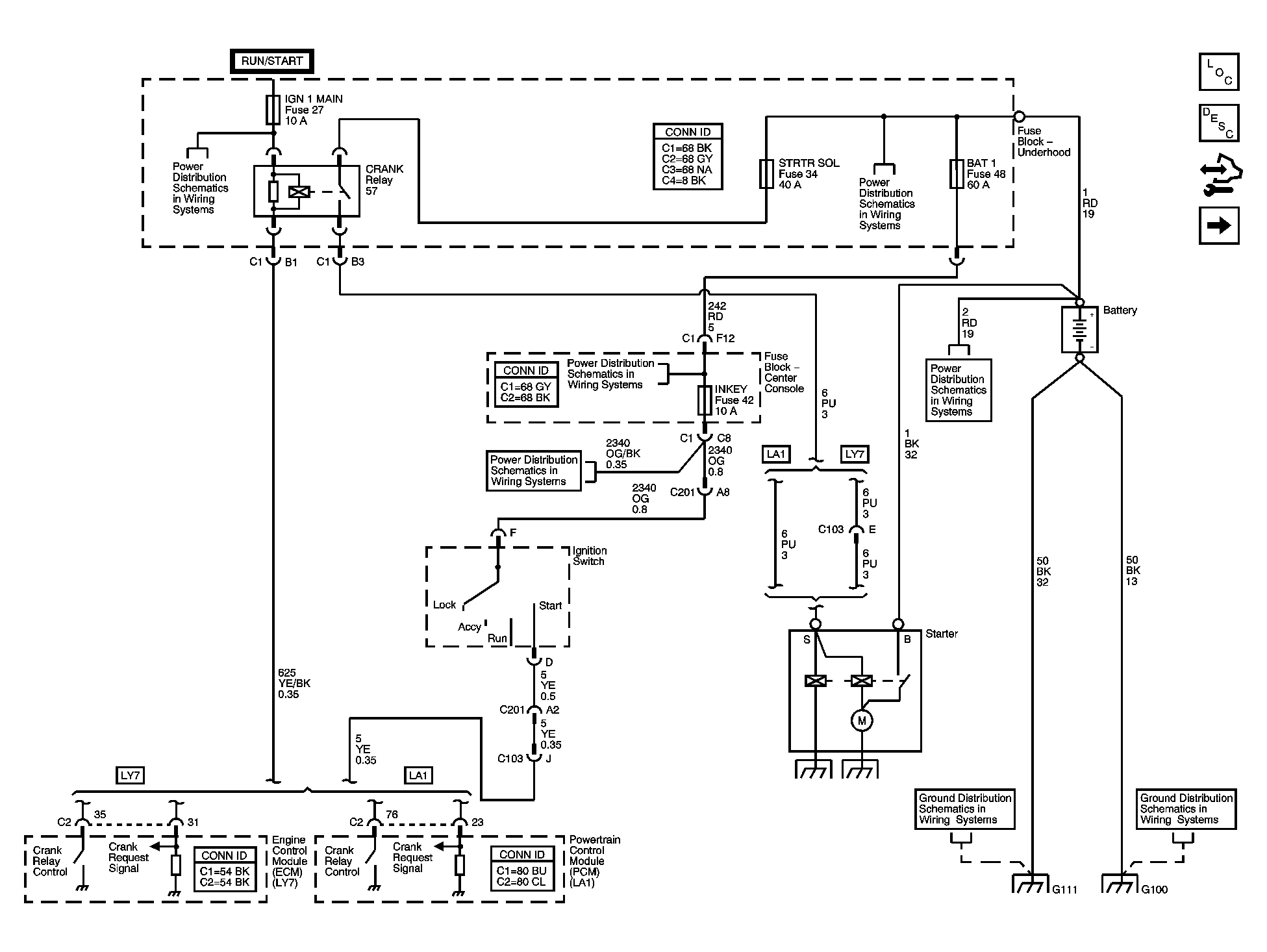

Fig 1: Engine Cranking
GM1499996Courtesy of GENERAL MOTORS CORP.

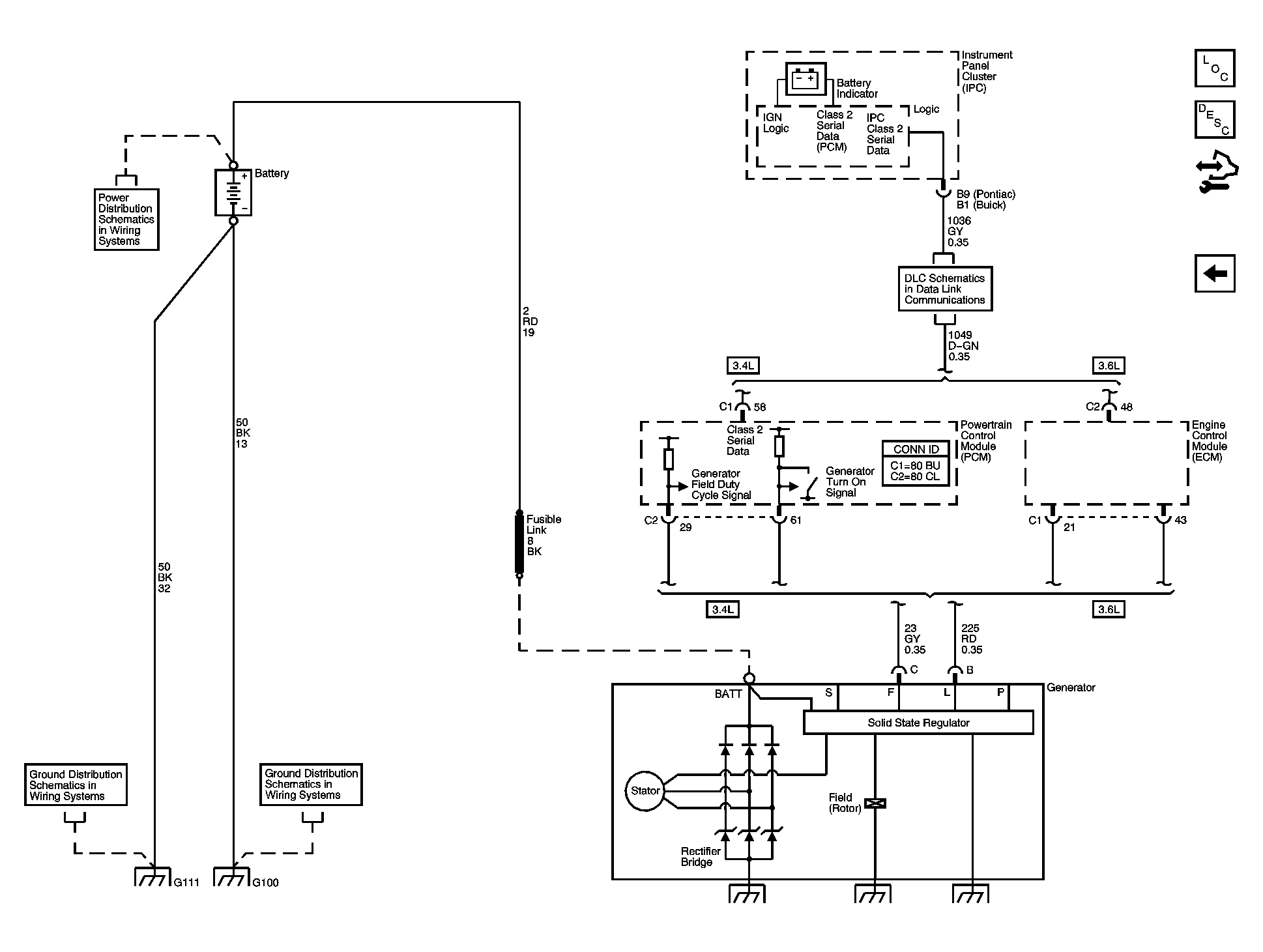

Fig 2: Charging Control, Indicator
GM1499559Courtesy of GENERAL MOTORS CORP.
