Harness Routing Views

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Forward Lamp Harness Component View
GM885131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C106
2 Cooling Fan-Right Connector
3 G101
4 Headlamp Assembly-Left Connector
5 Ambient Air Temperature Sensor Connector (w/U68)
6 Fog Lamp-LF Connector
7 Cooling Fan-Left Connector
8 Horn Assembly Connector
9 Fog Lamp-RF Connector
10 Headlamp Assembly-Right Connector
Fig 2: Right Side Of Engine Compartment Component View
GM514086Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P100
2 Fusible Links (Underhood Junction Block)
Fig 3: Underhood Junction Block Component View
GM487972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C112
2 Junction Block-Underhood (Top and Bottom)

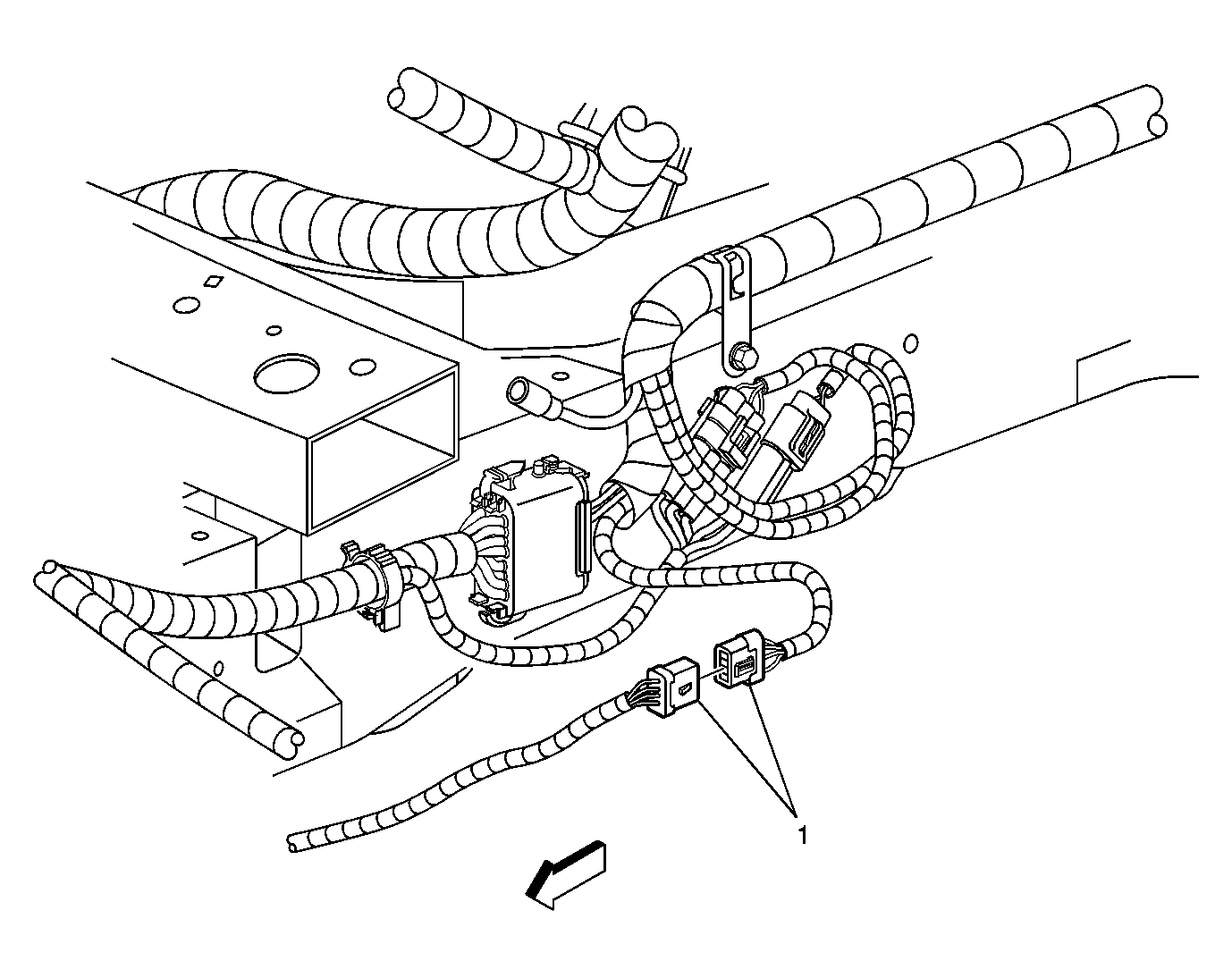

Fig 4: Right Front Of Engine Compartment Component View (w/6J3)
GM592715Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C122
Fig 5: Left Front Of Engine Component View (LA1)
GM619200Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C102
2 Manifold Absolute Pressure (MAP) Sensor
3 Exhaust Gas Recirculation (EGR) Valve
4 Throttle Position (TP) Sensor
5 Idle Air Control (IAC) Valve
6 Exhaust Gas Recirculation (EGR) Valve
7 Evaporative Emission (EVAP) Canister Purge Solenoid
8 Engine Oil Pressure (EOP) Switch
9 Crankshaft Position (CKP) Sensor A Connector and Bracket
10 Knock Sensor (KS)
11 Engine Oil Pressure (EOP) Switch Connector
12 Fusible Links (Starter)
13 A/C Compressor Clutch Diode
14 Knock Sensor (KS)
15 Crankshaft Position (CKP) Sensor A Connector and Bracket
16 Positive Crankcase Ventilation (PCV) Valve
17 Camshaft Position (CMP) Sensor Connector
Fig 6: Left Front Of Engine Component View (L36)
GM741696Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C110
2 C126
3 Evaporative Emission (EVAP) Canister Purge Solenoid
Fig 7: Upper Left Front Of Engine Component View - L67
GM752781Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Idle Air Control (IAC) Valve
2 Throttle Position (TP) Sensor
3 Mass Air Flow (MAF) Sensor Connector
4 Intake Air Temperature (IAT) Sensor Connector
5 Supercharger Boost Control Solenoid
6 Fuel Injector 5
7 Fuel Injector 3
8 Fuel Injector 1
9 C110
10 C126
Fig 8: Lower Right Rear Of Engine Component View - L36/L67
GM743024Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C125 - Knock Sensor Jumper Harness
2 Engine Oil Pressure (EOP) Switch
3 Vehicle Speed Sensor
4 C125 - Engine Harness
Fig 9: Left Center Of Engine Compartment Component View
GM732595Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C101
2 G151
3 A/C Refrigerant Pressure Sensor
4 C113
5 Electronic Brake Control Module (EBCM)
6 Cruise Control Module (CCM)
Fig 10: Forward Of Windshield Component View
GM744499Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper System Module
2 P103
3 P101
Fig 11: Left Side of Instrument Panel Component View
GM741678Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Junction Block-Left I/P
3 Junction Block-Left I/P Connector C2
4 C217
5 Main Body Wiring Harness
6 C217
Fig 12: Lower Center Of Instrument Panel Component View (w/o 9C1/9C3)
GM487935Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G203
2 Inflatable Restraint Steering Wheel Module Coil Connector C1
3 Data Link Connector (DLC)
4 C201
5 Stop Lamp Switch Connectors
6 Cruise Control Release Switch Connector
7 Cruise Control Release Switch
8 G201

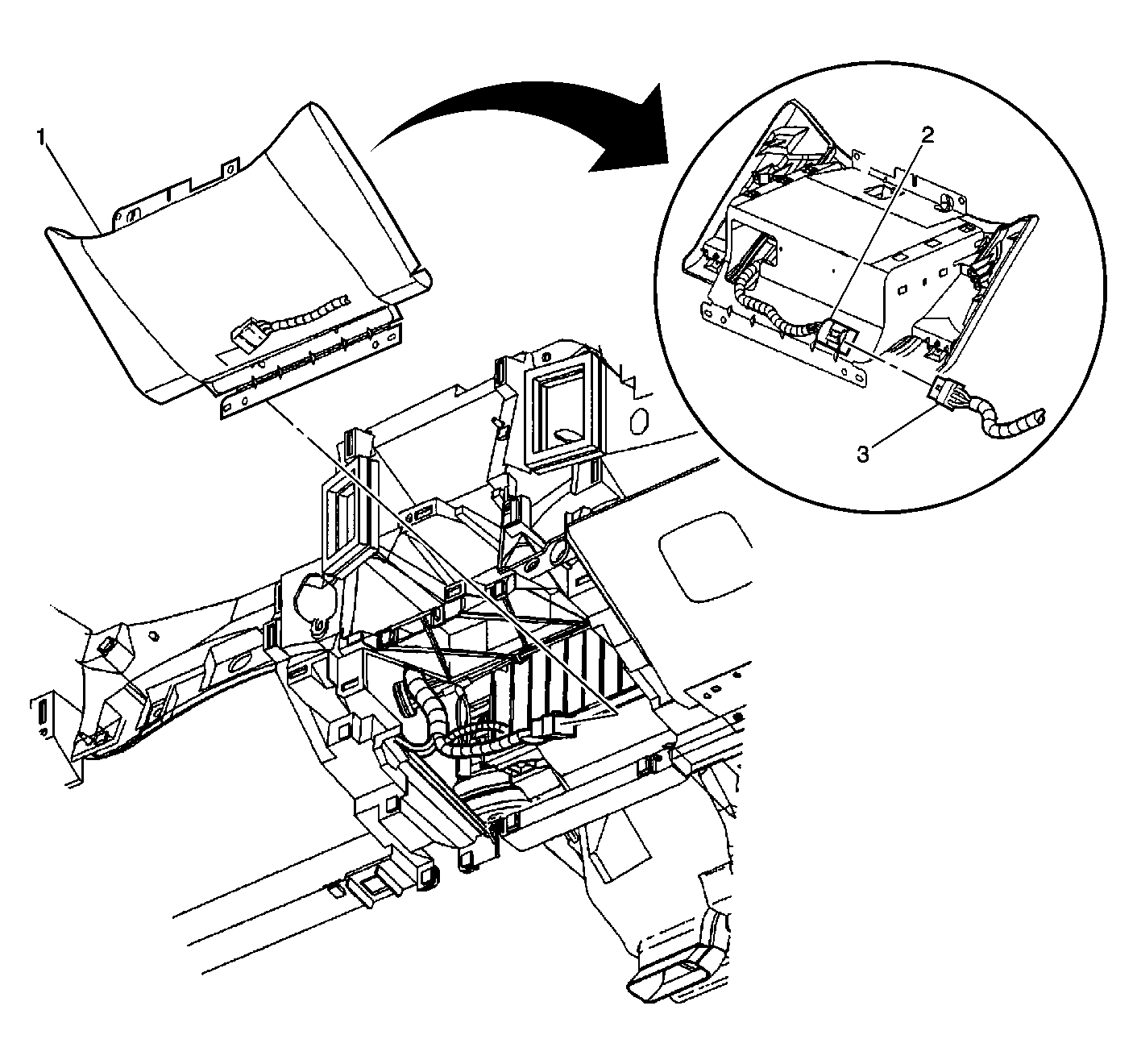

Fig 13: Bottom Center Of Instrument Panel Component View (w/o D55)
GM488022Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ashtray
2 C240
3 C240
Fig 14: Behind Right Side Of Instrument Panel Component View (SEO)
GM741574Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor
2 C255
3 C297
4 Emergency Vehicle Front Lamps Flasher
5 C297
6 C209
7 C299
Fig 15: Lower Left Of Passenger Compartment Component View
GM488359Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Sensor (SIS)-LF (Impala)
2 G301
3 Junction Block-Left IP Connector C2
4 Park Brake Switch Connector
5 C301
6 C205
7 C355 (Impala)
Fig 16: Console & Center Of Floor Component View
GM885136Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter
2 Heated Seat Switch-Driver (Monte Carlo) Connector
3 Heated Seat Switch-Front Passenger (Monte Carlo) Connector
4 C317
5 C315
6 Auxiliary Power Outlet
7 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
8 C312
9 Inflatable Restraint Side Impact Module-LF Connector
10 C311
11 A/T Shift Lock Control Solenoid
Fig 17: Lower Right Of Passenger Compartment Component View
GM858706Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C302
2 C218
3 Junction Block-Right I/P Connector (Main Body Harness Side)
4 C225
5 G302
6 C306 (w/9C1/9C3)
7 C308 (w/9C1/9C3)

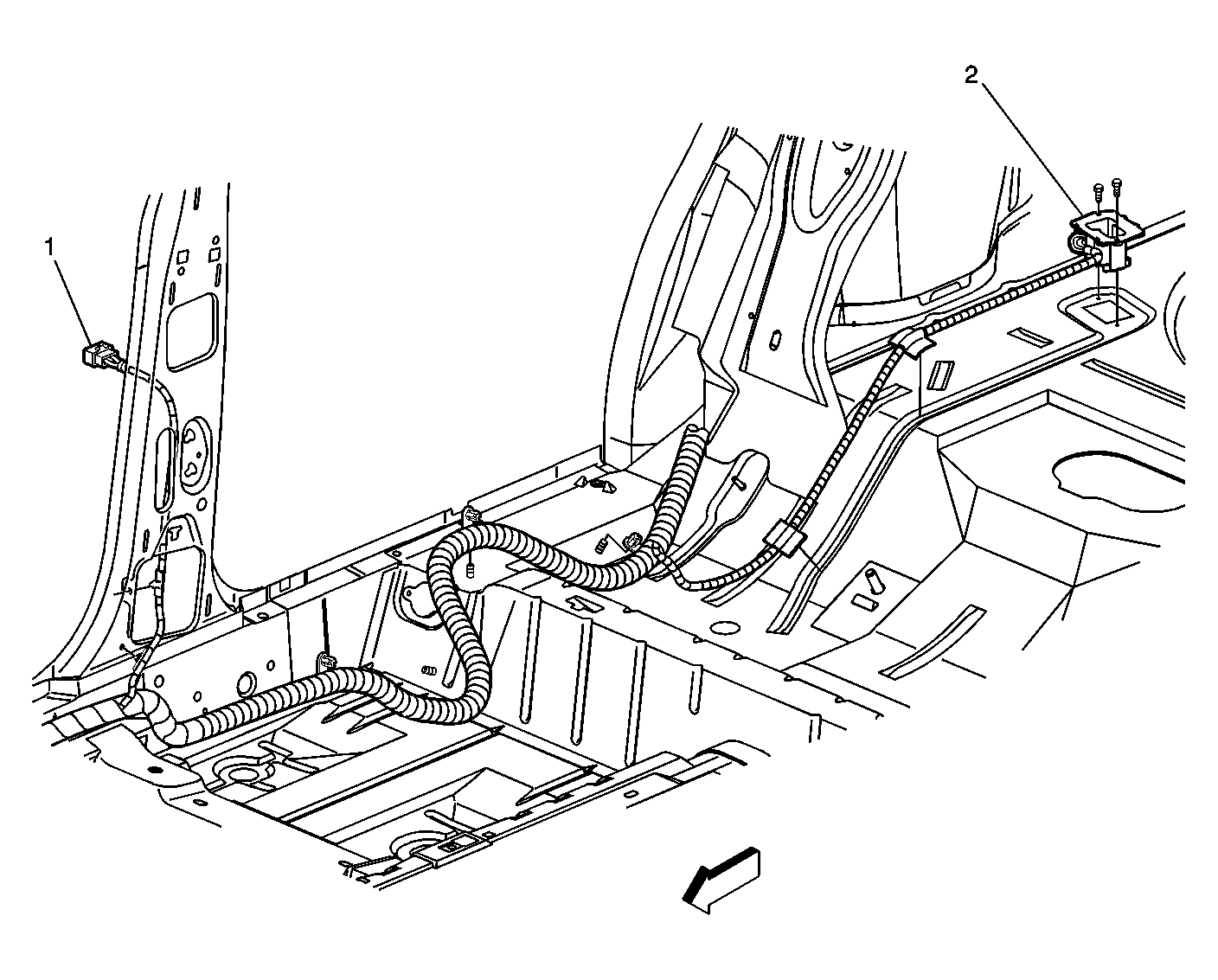

Fig 18: Lower Right Center Rear Of Vehicle Component View
GM488385Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C356
2 C405

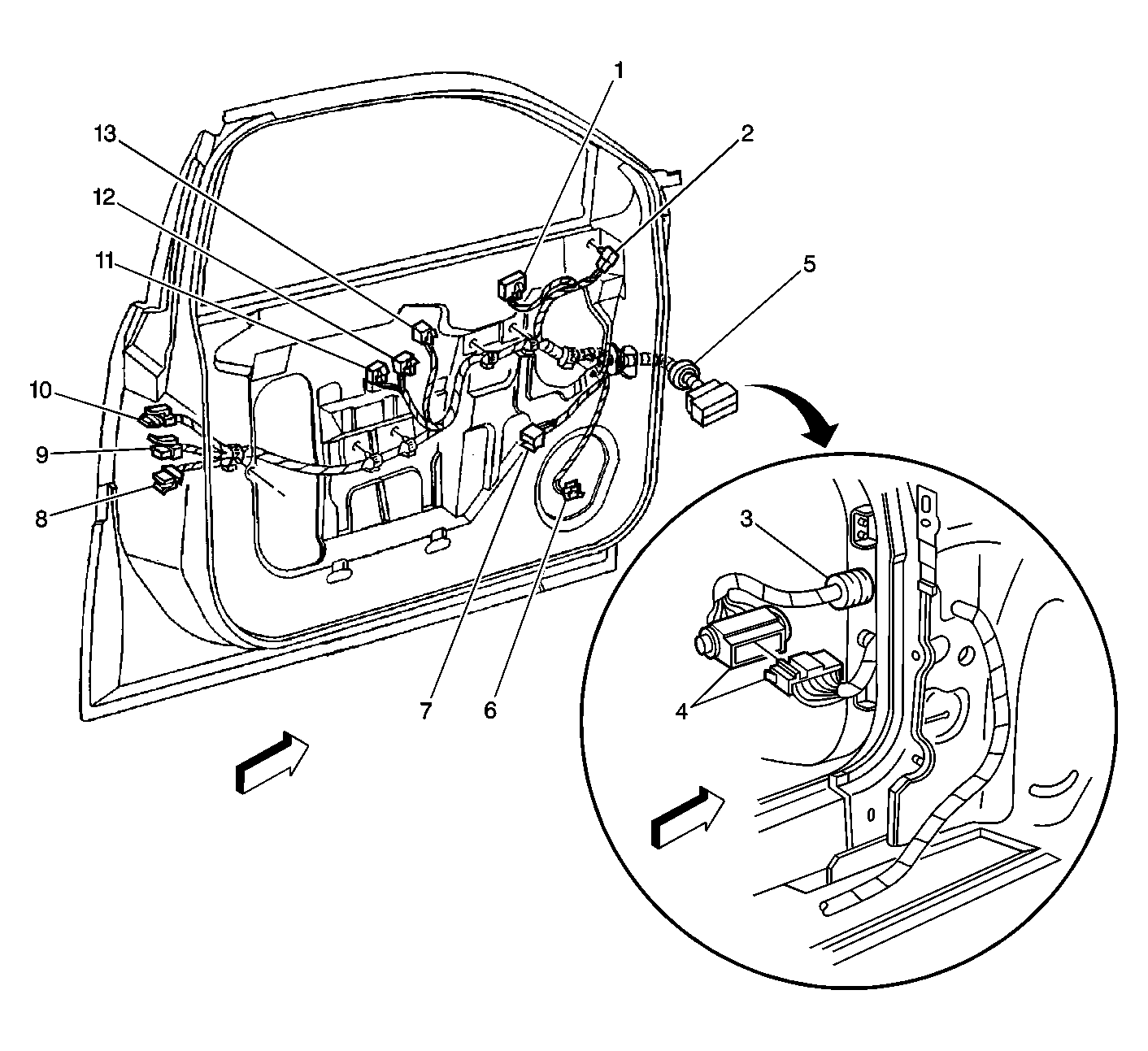

Fig 19: Driver Door Component View (Impala)
GM487902Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror Switch Connector
2 Outside Rearview Mirror-Driver Connector
3 P500
4 C301
5 P500
6 Speaker-LF Door Connector
7 Window Motor-Driver Connector
8 Door Lock-Driver, C1
9 Door Lock-Driver, C2
10 Door Lock Cylinder Switch-Driver Connector (UA6)
11 Window Lockout Switch Connector
12 Window Switch-Driver Connector
13 Door Lock Switch-Driver Connector

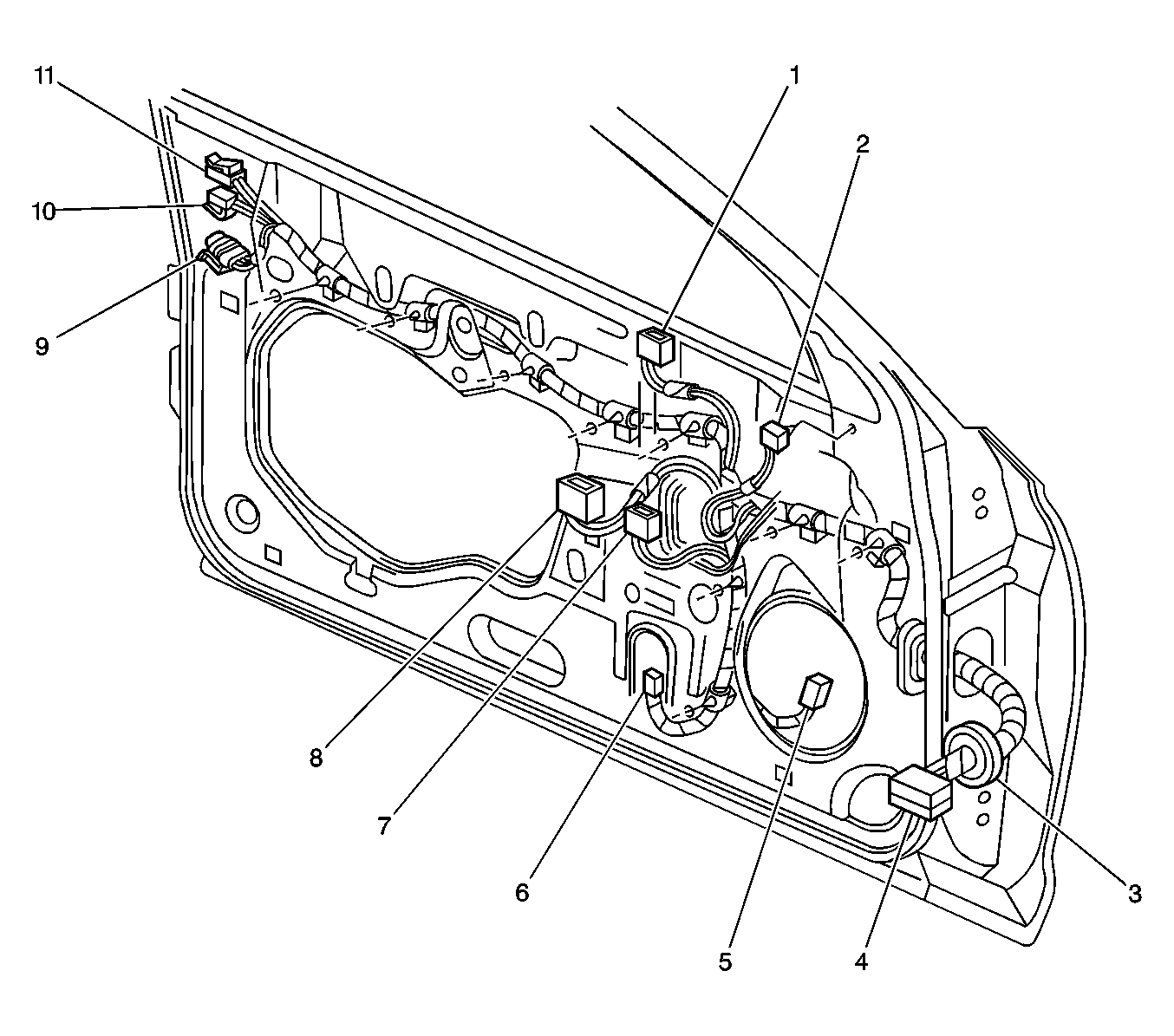

Fig 20: Driver Door Component View (Monte Carlo)
GM488218Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch-Driver Connector
2 Outside Rearview Mirror-Driver Connector
3 P500
4 C301
5 Speaker-LF Door Connector
6 Window Motor-Driver Connector
7 Window Switch-Driver Connector
8 Outside Rearview Mirror Switch Connector
9 Door Lock-Driver, C1
10 Door Lock-Driver, C2
11 Door Lock Cylinder Switch-Driver Connector (UA6)

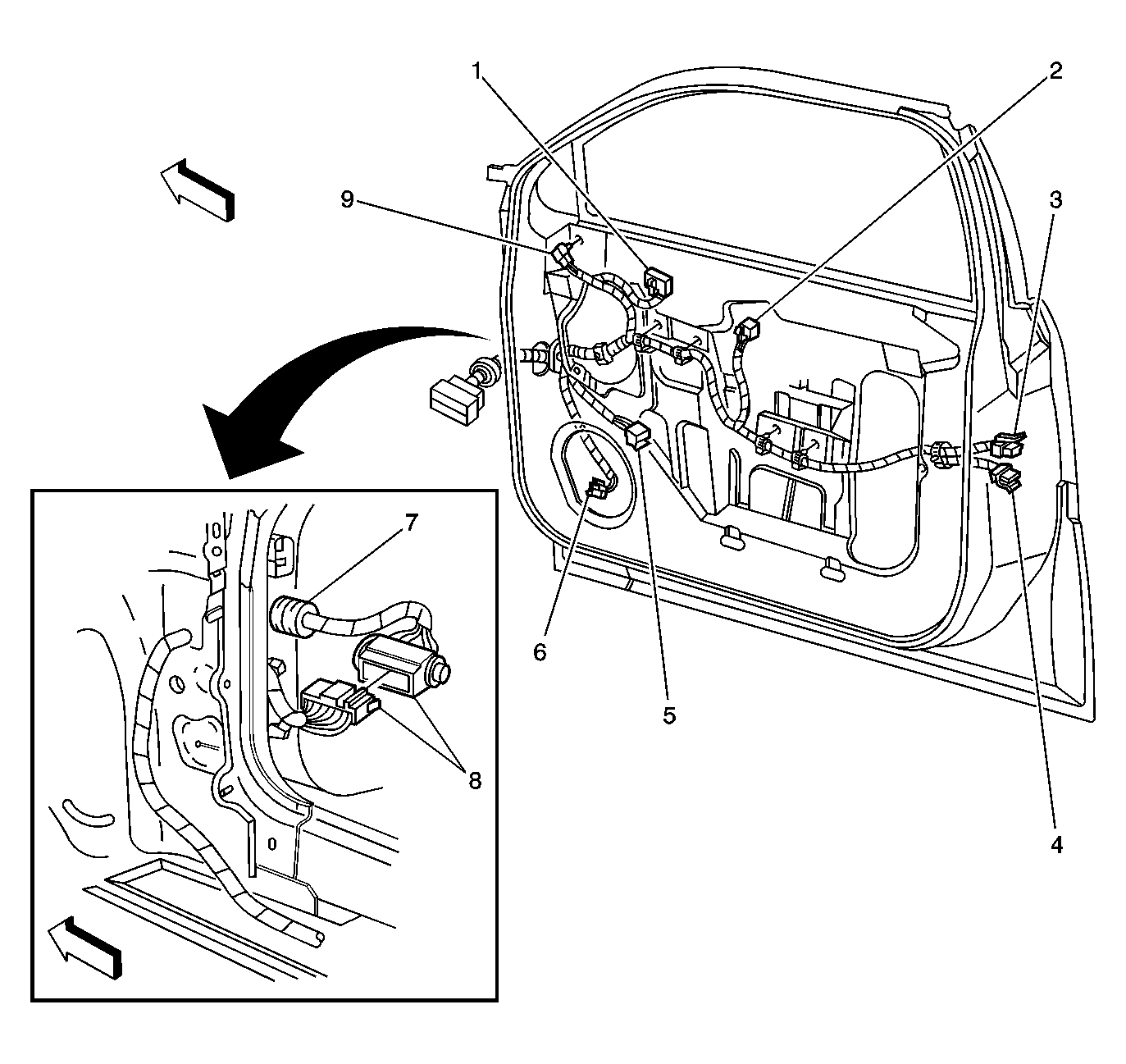

Fig 21: Front Passenger Door Component View (Impala)
GM885133Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch-Front Passenger Connector
2 Window Switch-Front Passenger Connector
3 Door Lock-Front Passenger, C2
4 Door Lock-Front Passenger, C1
5 Window Motor-Front Passenger Connector
6 Speaker-RF Door Connector
7 P600
8 C302
9 Outside Rearview Mirror-Passenger Connector

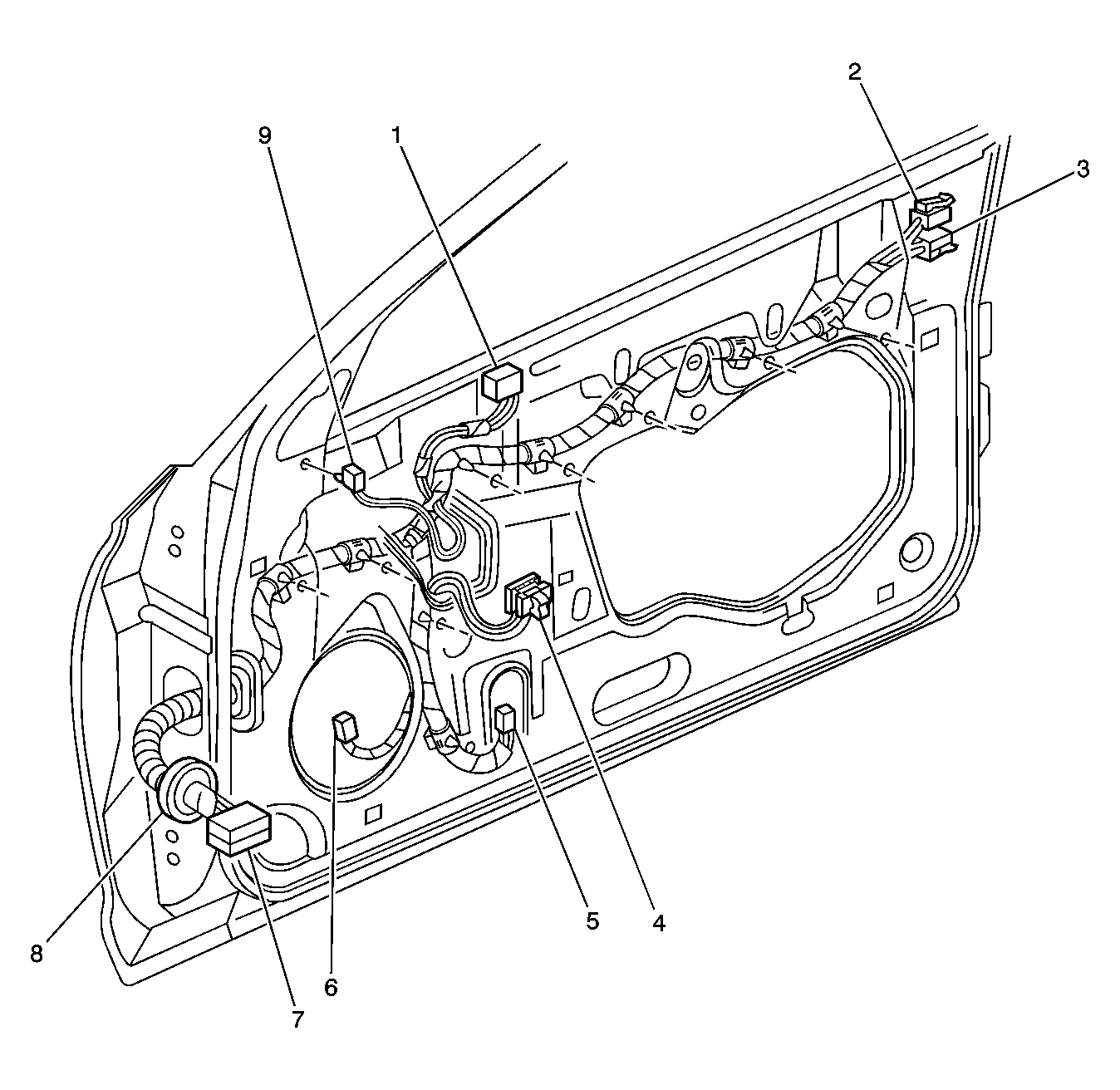

Fig 22: Front Passenger Door Component View (Monte Carlo)
GM885134Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch-Front Passenger Connector
2 Door Lock-Front Passenger, C2
3 Door Lock-Front Passenger, C1
4 Window Switch-Front Passenger Connector
5 Window Motor-Front Passenger Connector
6 Speaker-RF Door Connector
7 C320
8 P600
9 Outside Rearview Mirror-Passenger Connector

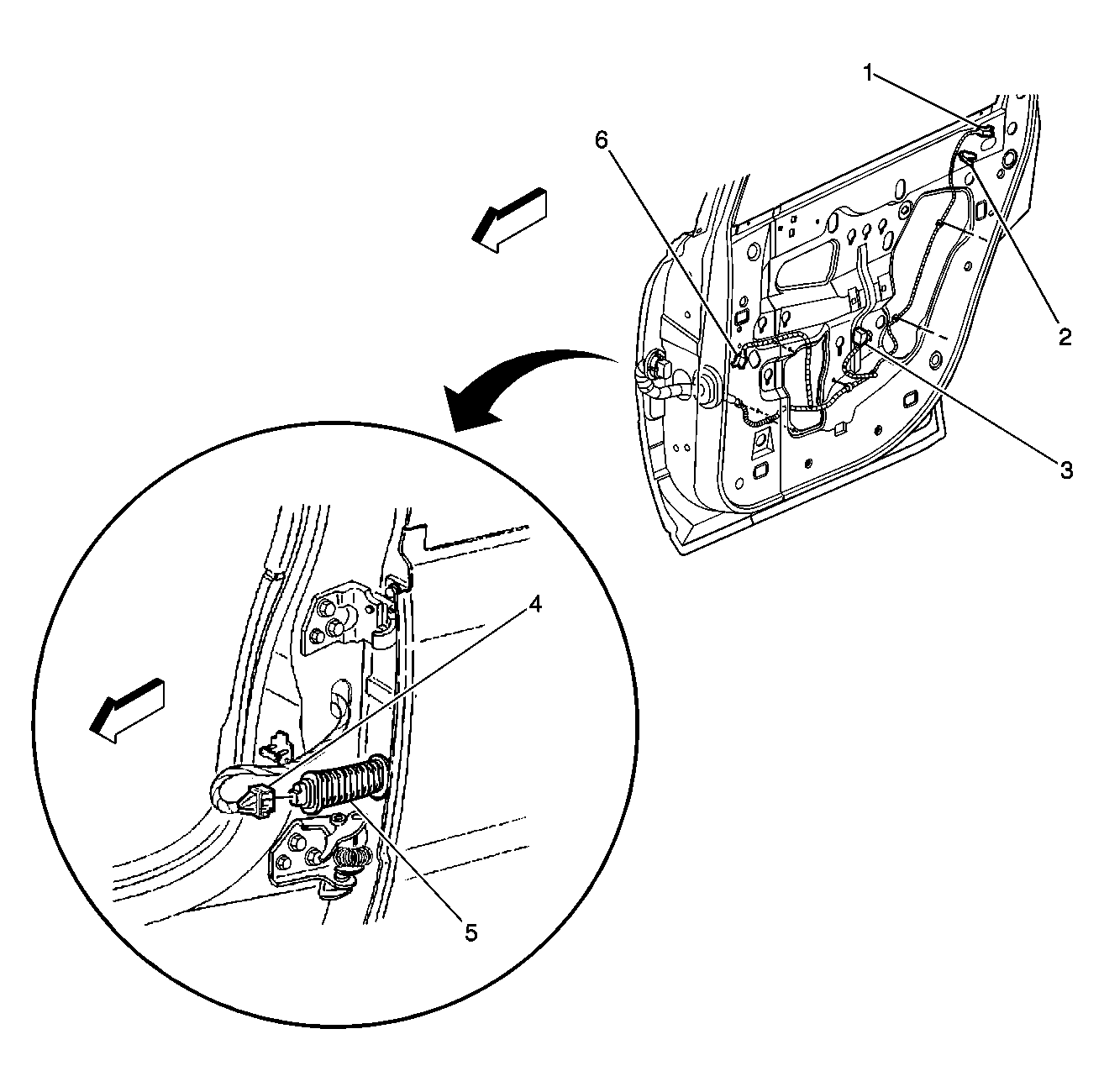

Fig 23: Right Rear Door, Left Rear Similar Component View
GM487907Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock-RR, C2
2 Door Lock-RR, C1
3 Window Switch-RR Connector
4 C356 Shown, C355 Similar
5 P800 Shown, P700 Similar
6 Window Motor-RR Connector
Fig 24: Above Left Side Of Package Shelf Component View
GM695155Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C395
2 C393
3 Cellular Antenna Coax Connector
4 C392
5 Main Body Wiring Harness

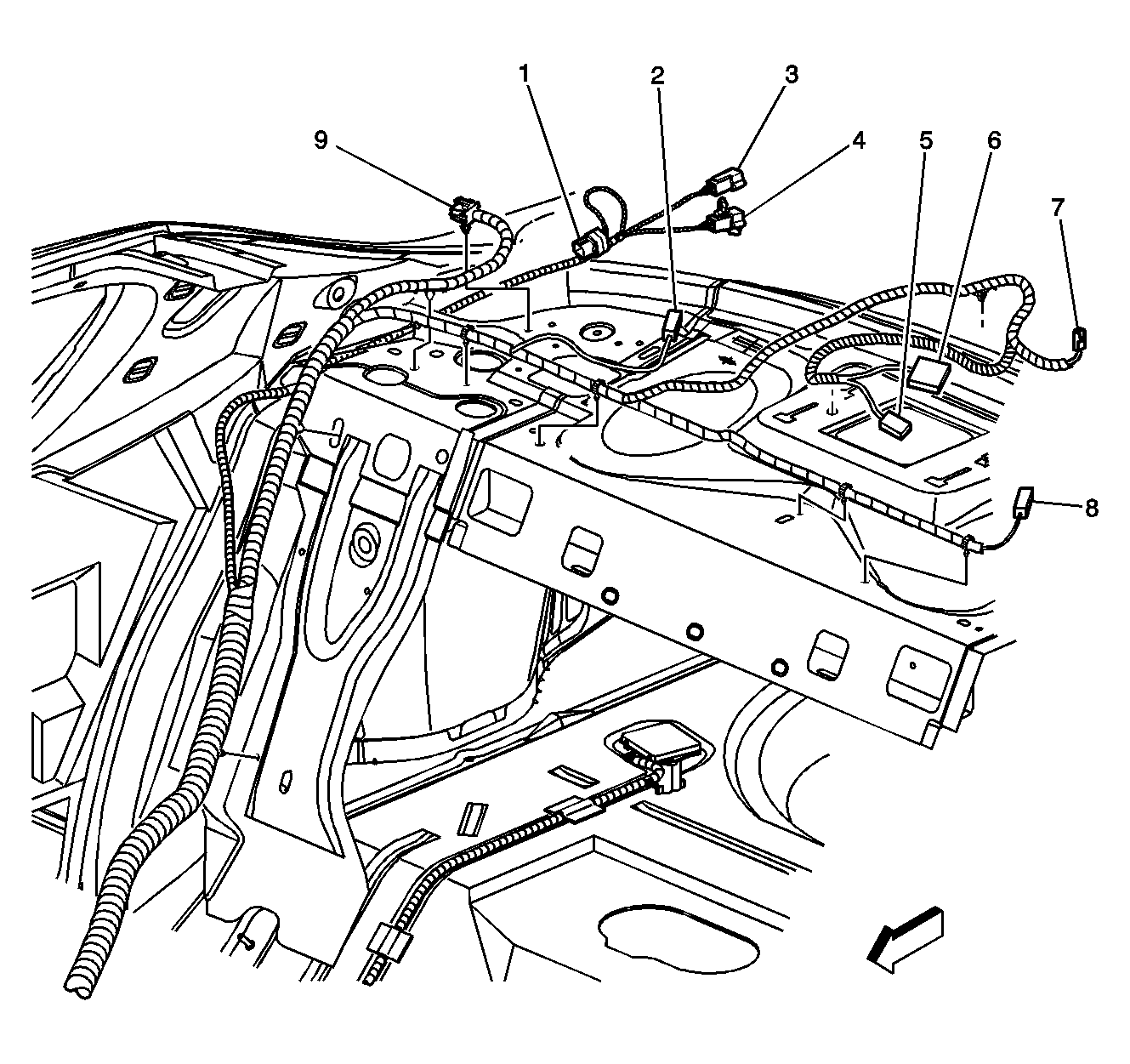

Fig 25: Right Upper Rear Of Passenger Compartment
GM781183Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C435
2 Speaker-RR Connector
3 C430
4 C400
5 Audio Amplifier Connector C2
6 Audio Amplifier Connector C1
7 Rear Compartment Courtesy Lamp Connector
8 Speaker-LR Connector
9 C373

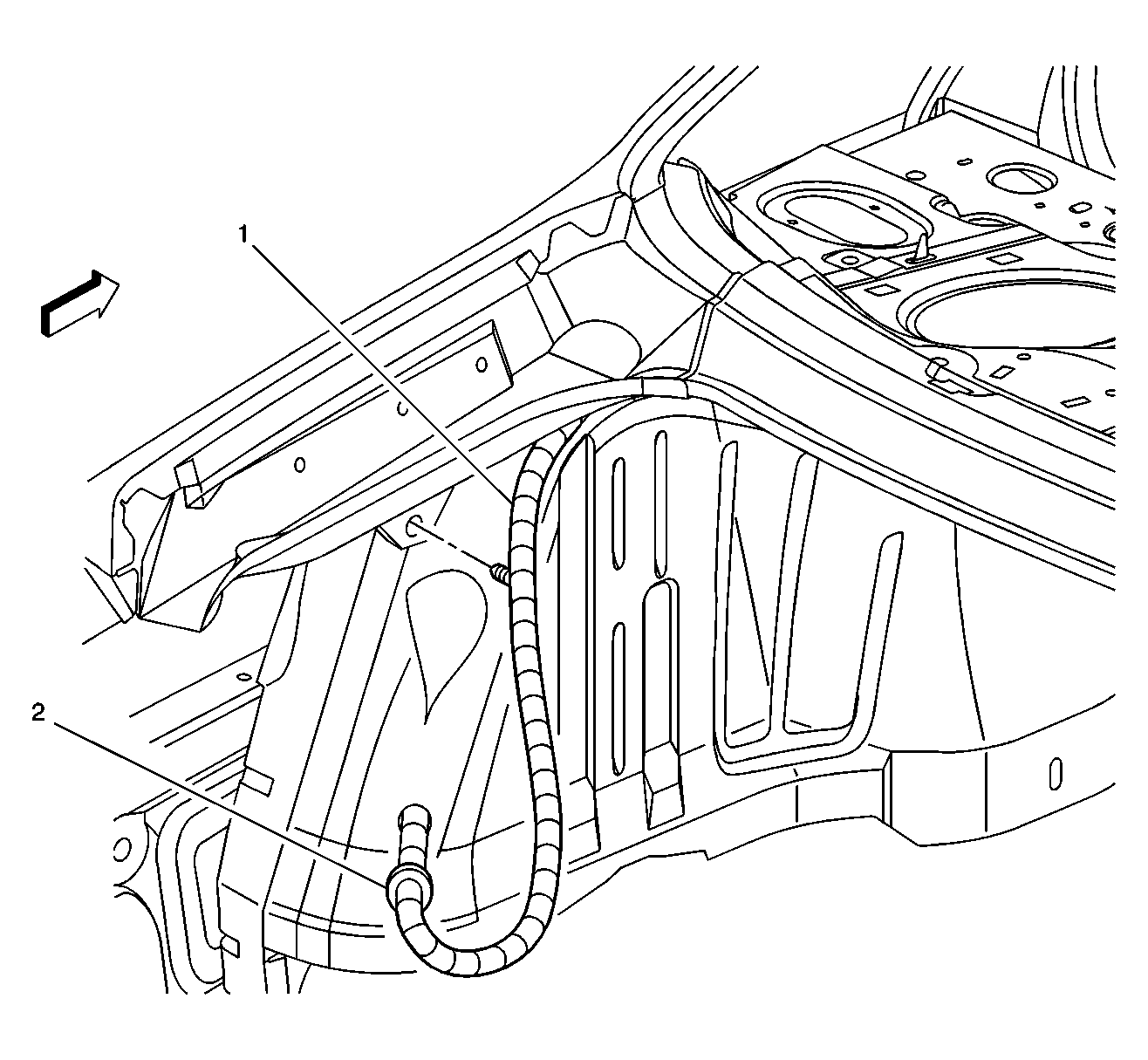

Fig 26: Left Center Of Rear Compartment Component View
GM488377Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Main Body Wiring Harness
2 P408

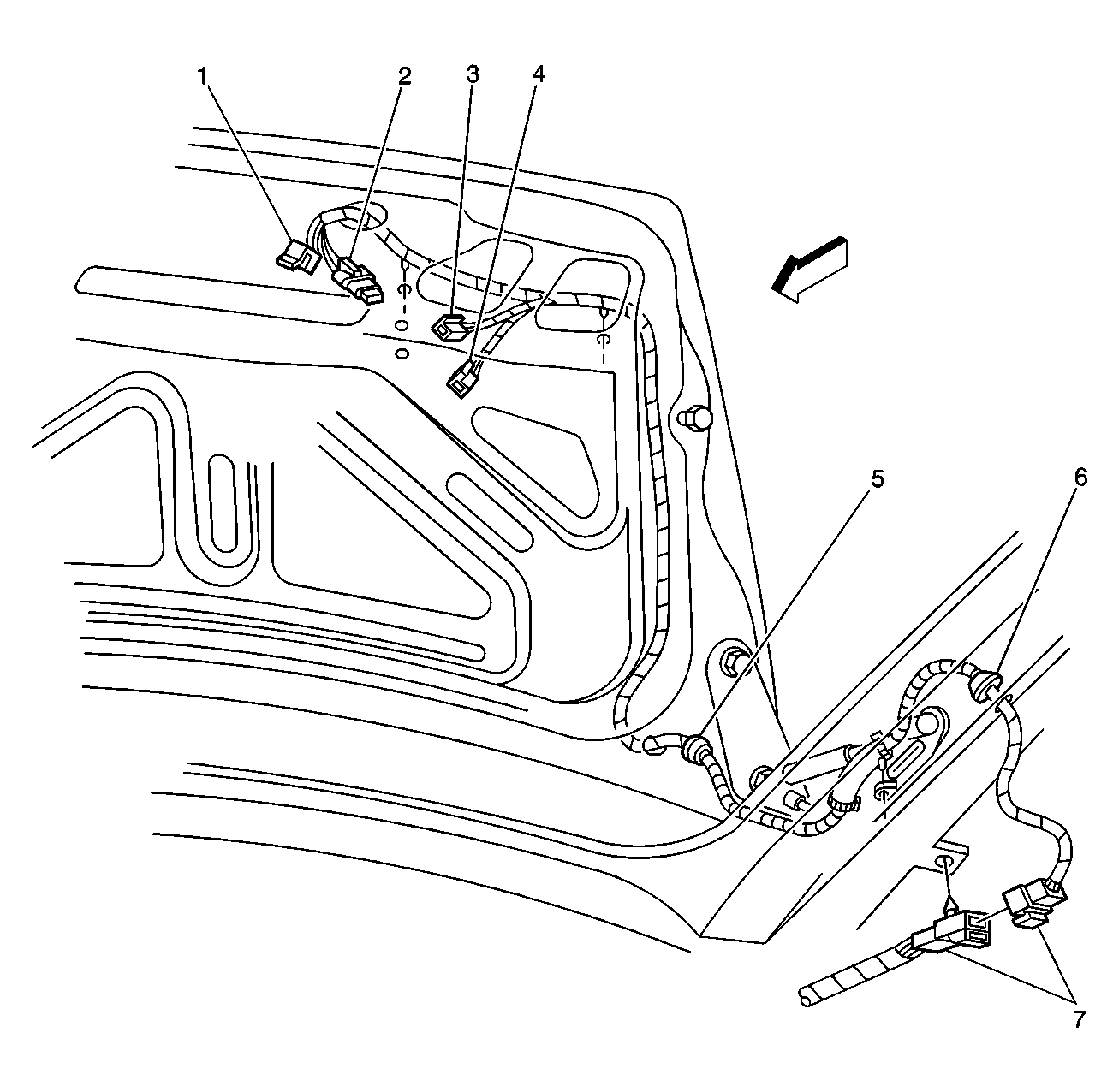

Fig 27: Rear Compartment Lid Component View (Impala)
GM488163Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Release Actuator Connector
2 Rear Compartment Lid Ajar Switch Connector
3 Center High Mounted Stop Lamp (CHMSL) Connector
4 C901
5 P900
6 P401
7 C430

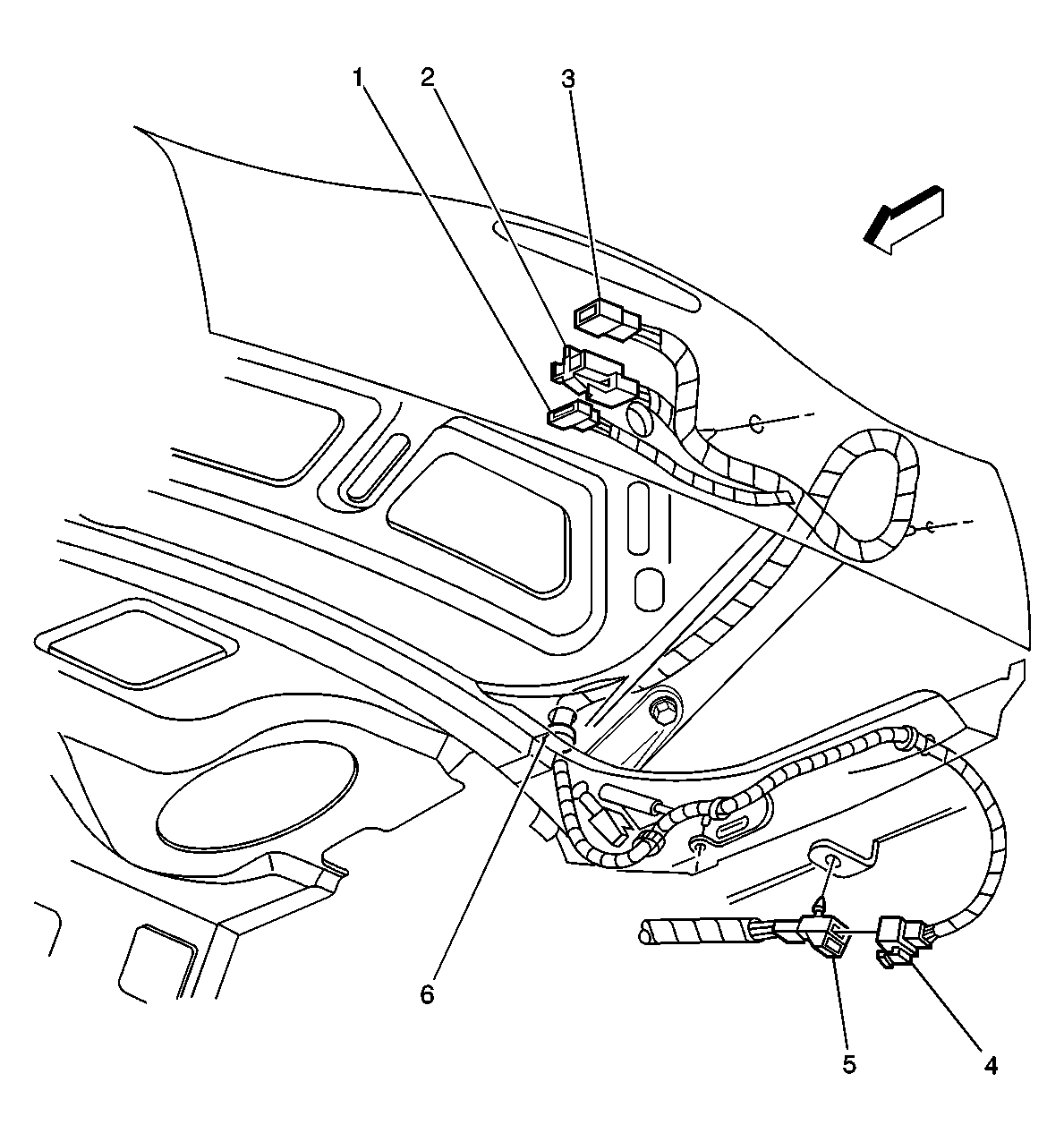

Fig 28: Rear Compartment Lid Component View (Monte Carlo)
GM488185Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Ajar Switch Connector
2 Center High Mounted Stop Lamp (CHMSL) Connector
3 Rear Compartment Lid Release Actuator Connector
4 C430
5 C430
6 P900

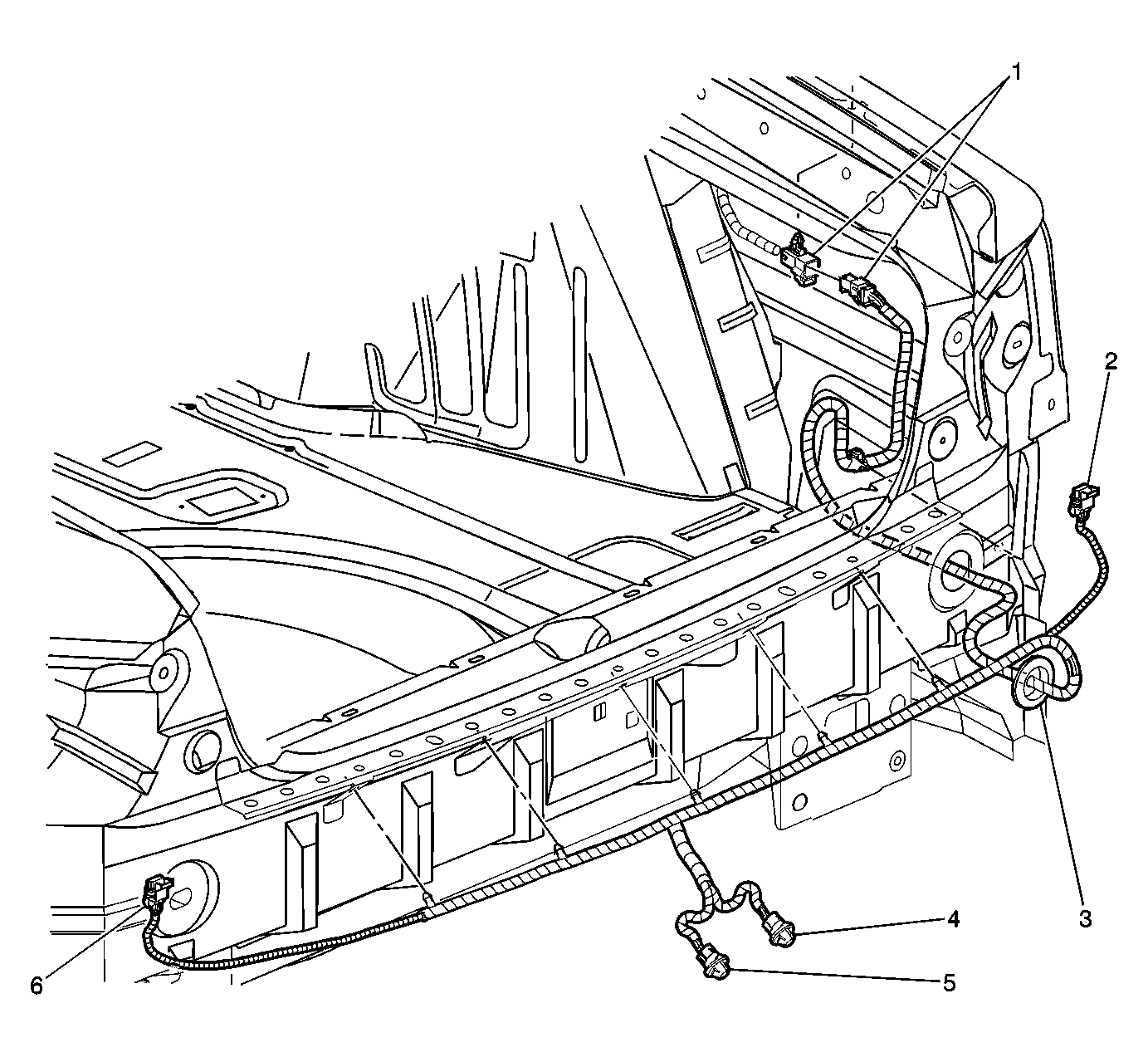

Fig 29: Body Rear End Component View (Impala)
GM487861Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C400
2 Tail Lamp-Right Connector
3 P400
4 License Lamp-Right Socket
5 License Lamp-Left Socket
6 Tail Lamp-Left Connector

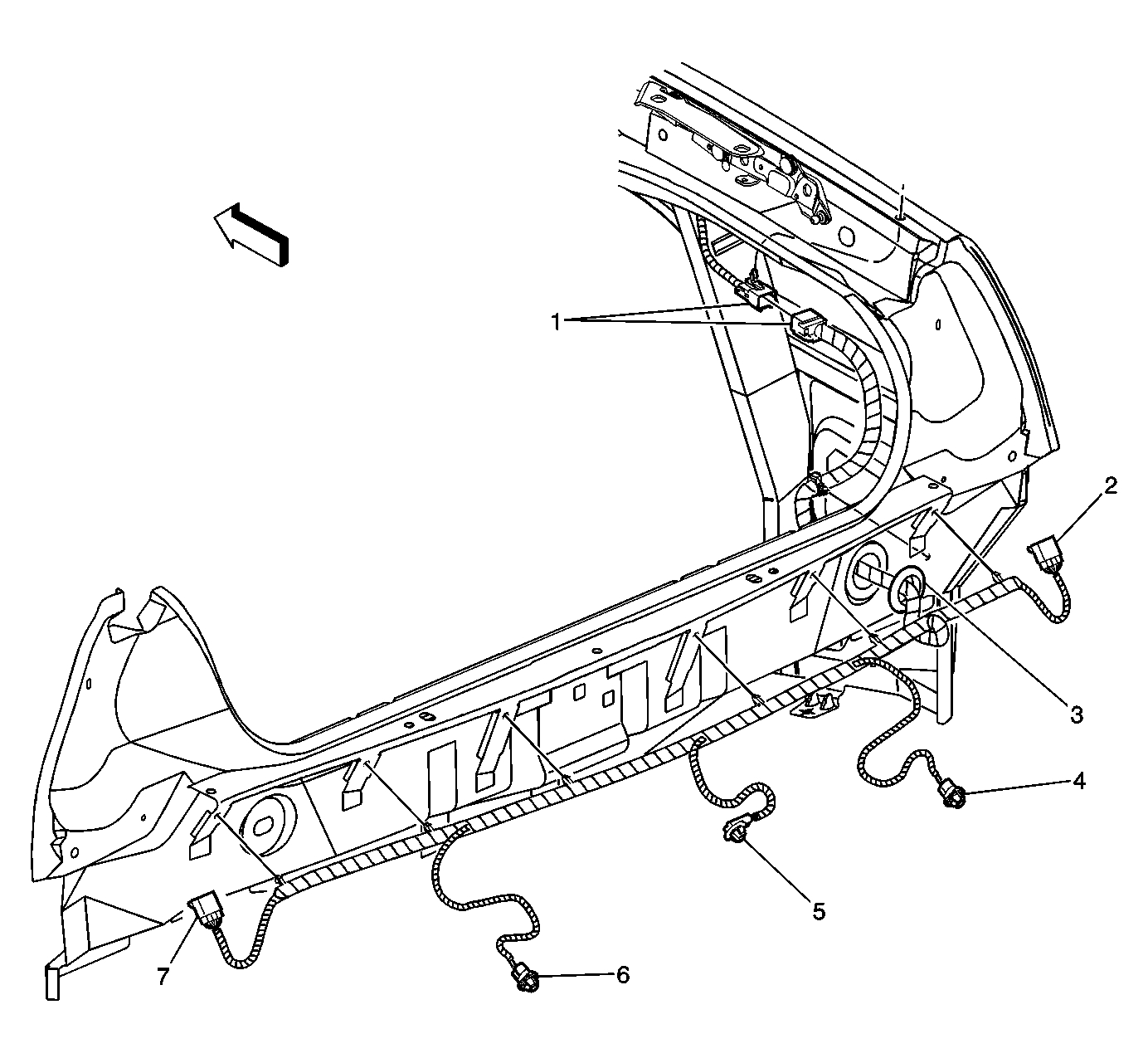

Fig 30: Body Rear End Component View (Monte Carlo)
GM488222Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C400
2 Tail Lamp-Right Connector
3 P400
4 Backup Lamp-Right Socket
5 License Lamp Socket
6 Backup Lamp-Left Socket
7 Tail Lamp-Left Connector
Fig 31: Rear Compartment Lid Component View (Impala)
GM498553Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 P909
2 C901
3 Reflex
4 Reflex
5 Rear Lamp Applique
6 Backup Lamp-Left
