Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the instrument panel (I/P) accessory trim plate rearward slightly for access to the steering column filler. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages, and Console.
  2. Remove the steering column filler. Refer to Steering Column Filler Replacement in Instrument Panel, Gages, and Console.
  3. Tilt the steering wheel to the lowest position.
  4. Grasp the edge of the I/P cluster trim plate. Pull the plate rearward to disengage the retainers.
  5. Disconnect the electrical connector from the dimmer switch.

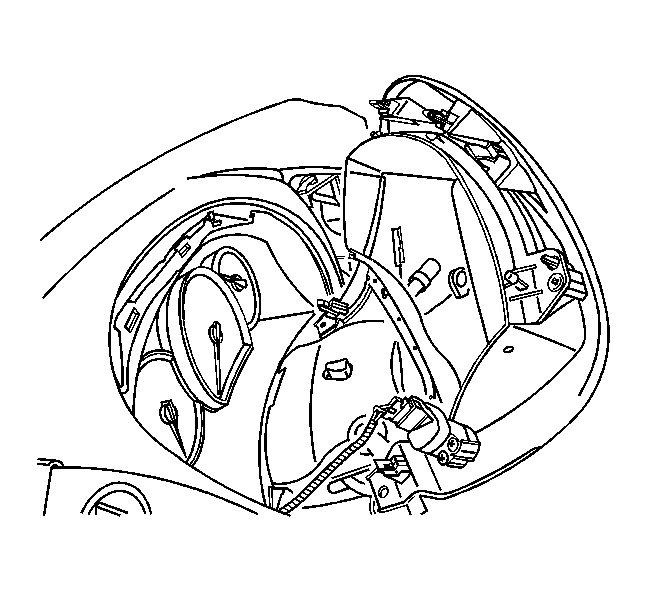

    6. Fig 1: Electrical Connector & Dimmer Switch (I/P)
    GM928956Courtesy of GENERAL MOTORS CORP.
  6. Remove the screws from the dimmer switch.
    7. Fig 2: Dimmer Switch Screws (I/P)
    GM928608Courtesy of GENERAL MOTORS CORP.
    Fig 3: Dimmer Switch (I/P)
    GM928662Courtesy of GENERAL MOTORS CORP.
  7. Remove the dimmer switch.
