Installation Procedure

    Fig 1: View Of Manual 2-1 Band Servo
    GM164811Courtesy of GENERAL MOTORS CORP.
  1. Install the manual 2-1 band servo cover gasket (105) into the case. Lubricate the manual 2-1 band servo cover gasket with automatic transmission fluid.
  2. Install the manual 2-1 band servo (106-116).

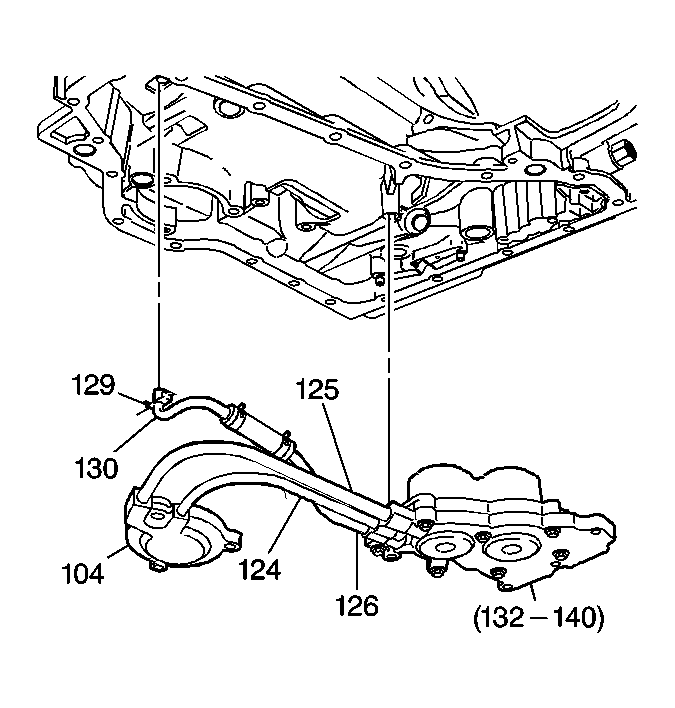

    3. Fig 2: Identifying Accumulator
    GM164810Courtesy of GENERAL MOTORS CORP.
  3. Install the manual 2-1 band servo cover (104).
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the manual 2-1 band servo cover bolts (103).

    Tighten:  Tighten the manual 2-1 band servo cover bolts (130) to 25 N.m (18 lb ft).

  5. Install the accumulator (132).
  6. Install the lube oil pipe (130) into the case at the lube hole for the front differential carrier internal gear.
  7. Use a flat-bladed tool in order to lock the lube oil pipe retainer (129) into the case.

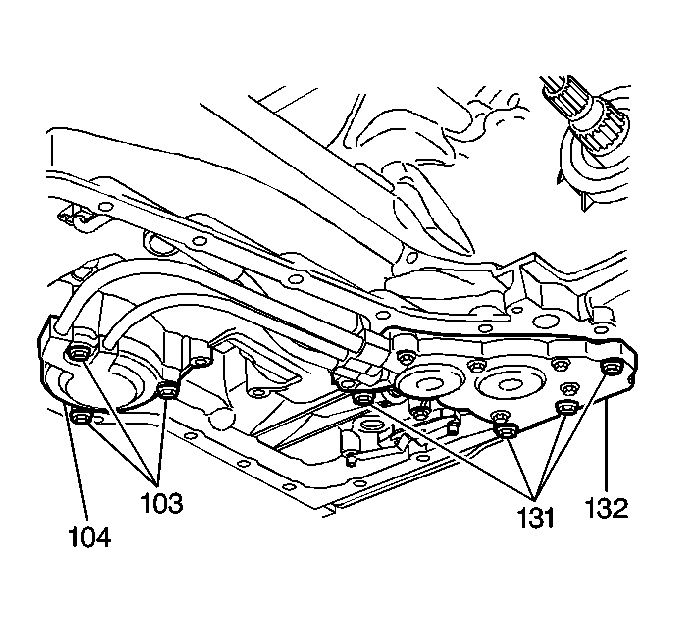

    8. Fig 3: Identifying Accumulator & Manual 2-1 Band Servo Cover Bolts
    GM164809Courtesy of GENERAL MOTORS CORP.
  8. Install the accumulator cover bolts (131).

    Tighten:  Tighten the accumulator cover bolts (131) to 12 N.m (106 lb in).

  9. If removed, install a new filter seal.
  10. Install the filter. Refer to Oil Filter and Seal Replacement .
  11. Install the oil pan. Refer to Oil Pan Replacement .
  12. Lower the vehicle.
