Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement .

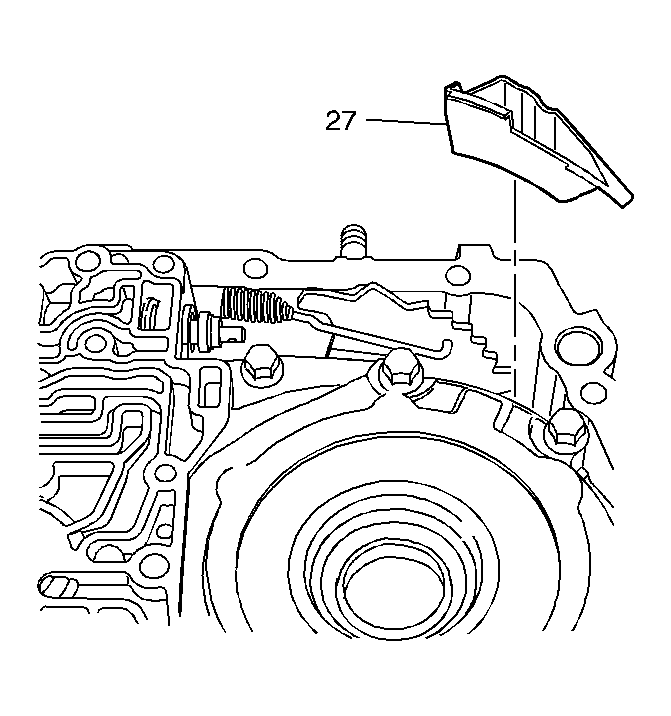

    2. Fig 1: Identifying Oil Reservoir Weir
    GM48191Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil reservoir weir (27).
