Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Install the assist strap to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the assist strap screws (2).
Tighten: Tighten the screws to 2 N.m (18 lb in).
Install the plastic cover. Press the cover into place until fully seated.

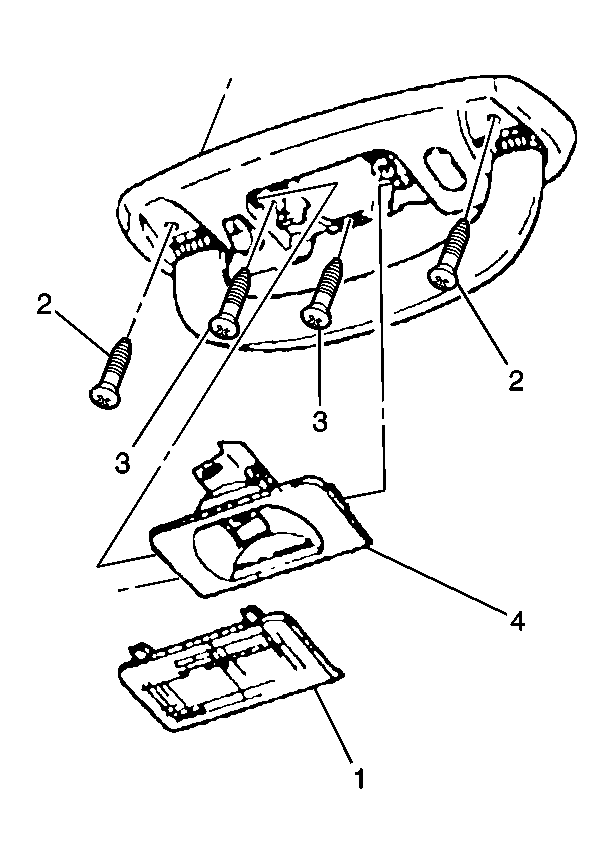

Fig 1: Rear Assist Handle & Components

Courtesy of GENERAL MOTORS CORP.
