Installation Procedure

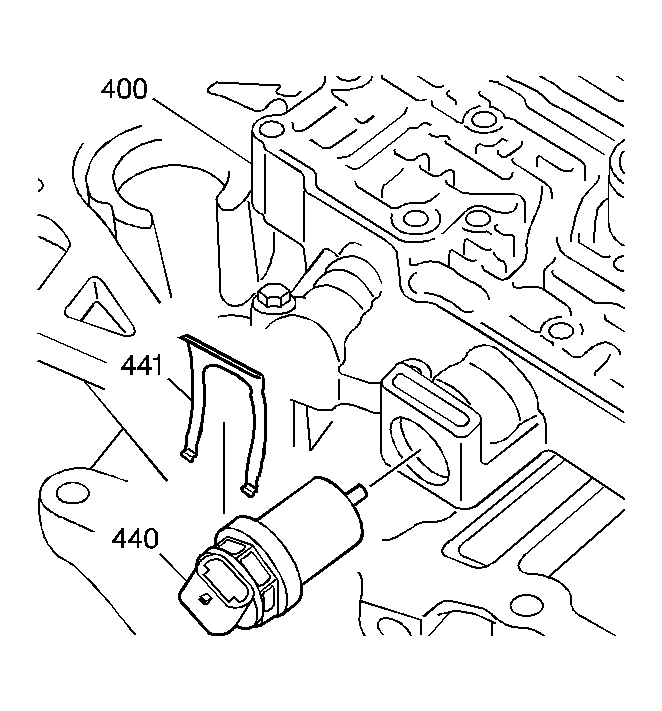

    Fig 1: View Of Input Speed Sensor
    GM48196Courtesy of GENERAL MOTORS CORP.
  1. Install the input speed sensor (440) into the case cover.
  2. Install the input speed sensor clip (441) into the case cover.
  3. Connect the transaxle wiring harness.
  4. Install the case side cover. Refer to Case Side Cover Replacement .
