Computer/Integrating Systems Component Views

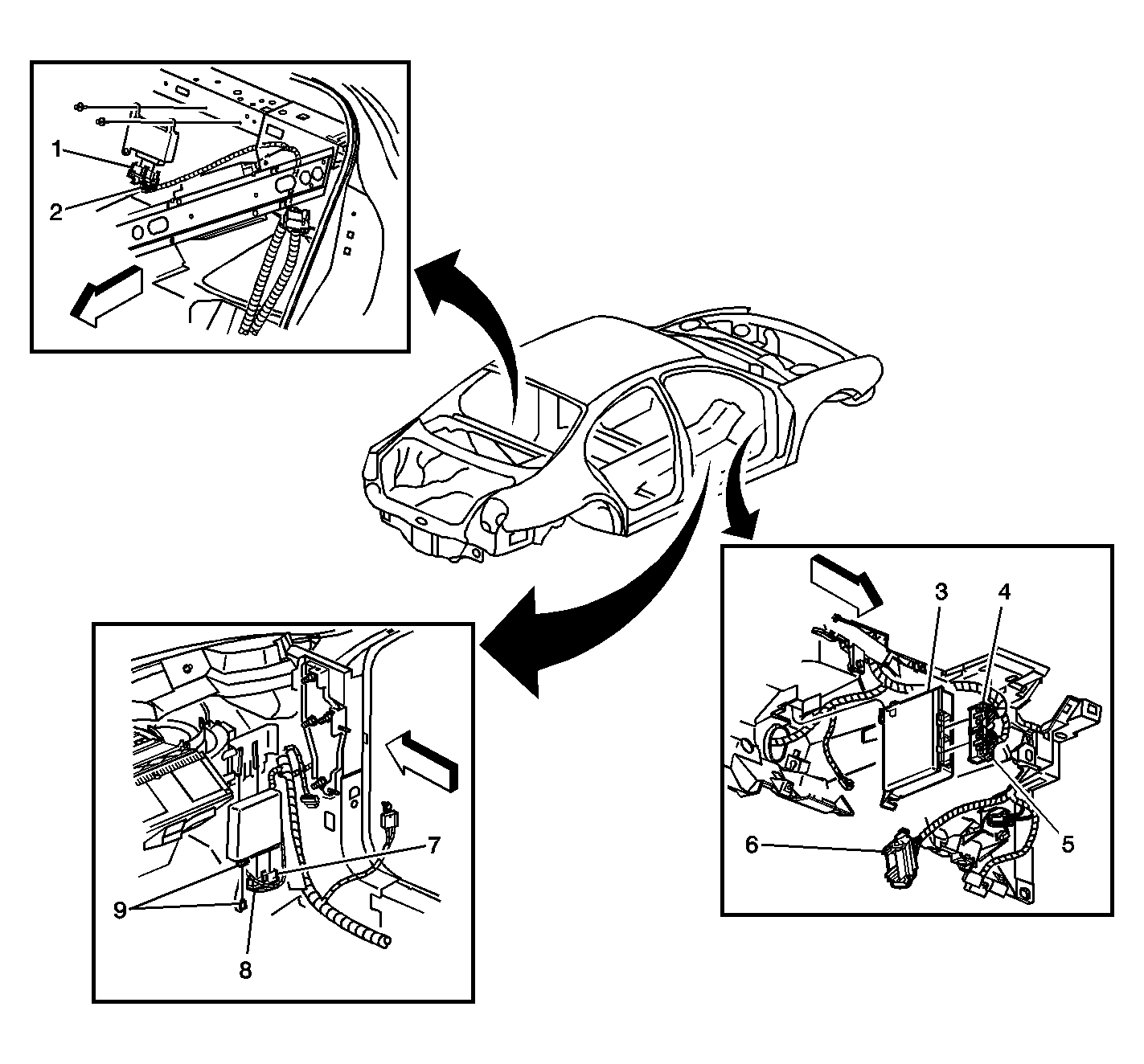

Fig 1: Identifying Body Control Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Integration Module (RIM) C1
2	Rear Integration Module (RIM) C2
3	Instrument Panel Integration Module (IPM)
4	Instrument Panel Integration Module (IPM) C1
5	Instrument Panel Integration Module (IPM) C2
6	C201
7	Dash Integration Module (DIM) C3
8	Dash Integration Module (DIM) C2
9	Dash Integration Module (DIM) C1

Fig 2: Identifying Data Link Communications (DLC) Connector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Connector (DLC)
