Keyless Entry Component Views

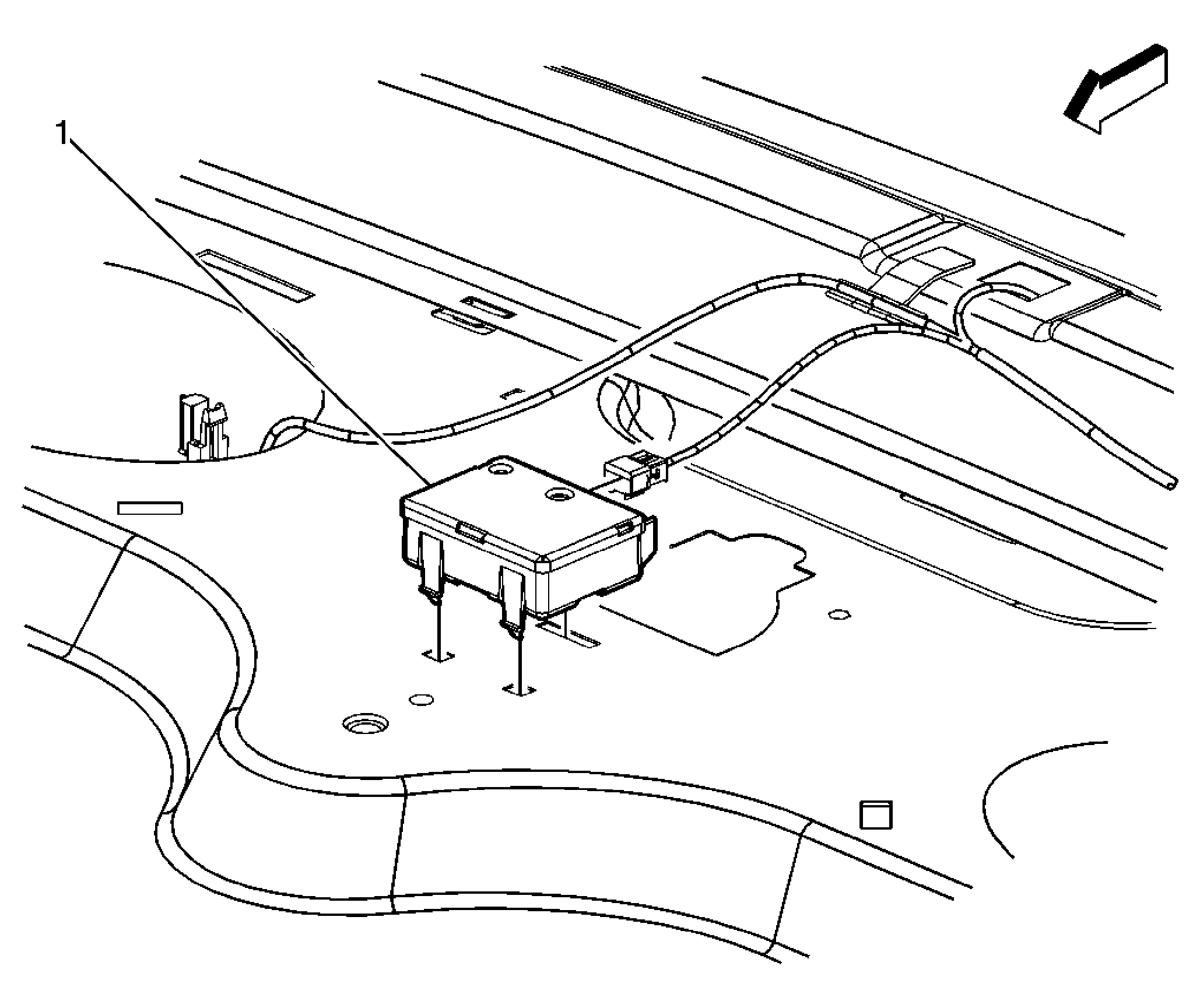

Fig 1: Remote Control Door Lock Receiver (RCDLR) - Sedan

GM1266723

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
