Bezel Replacement - Front Door Switch

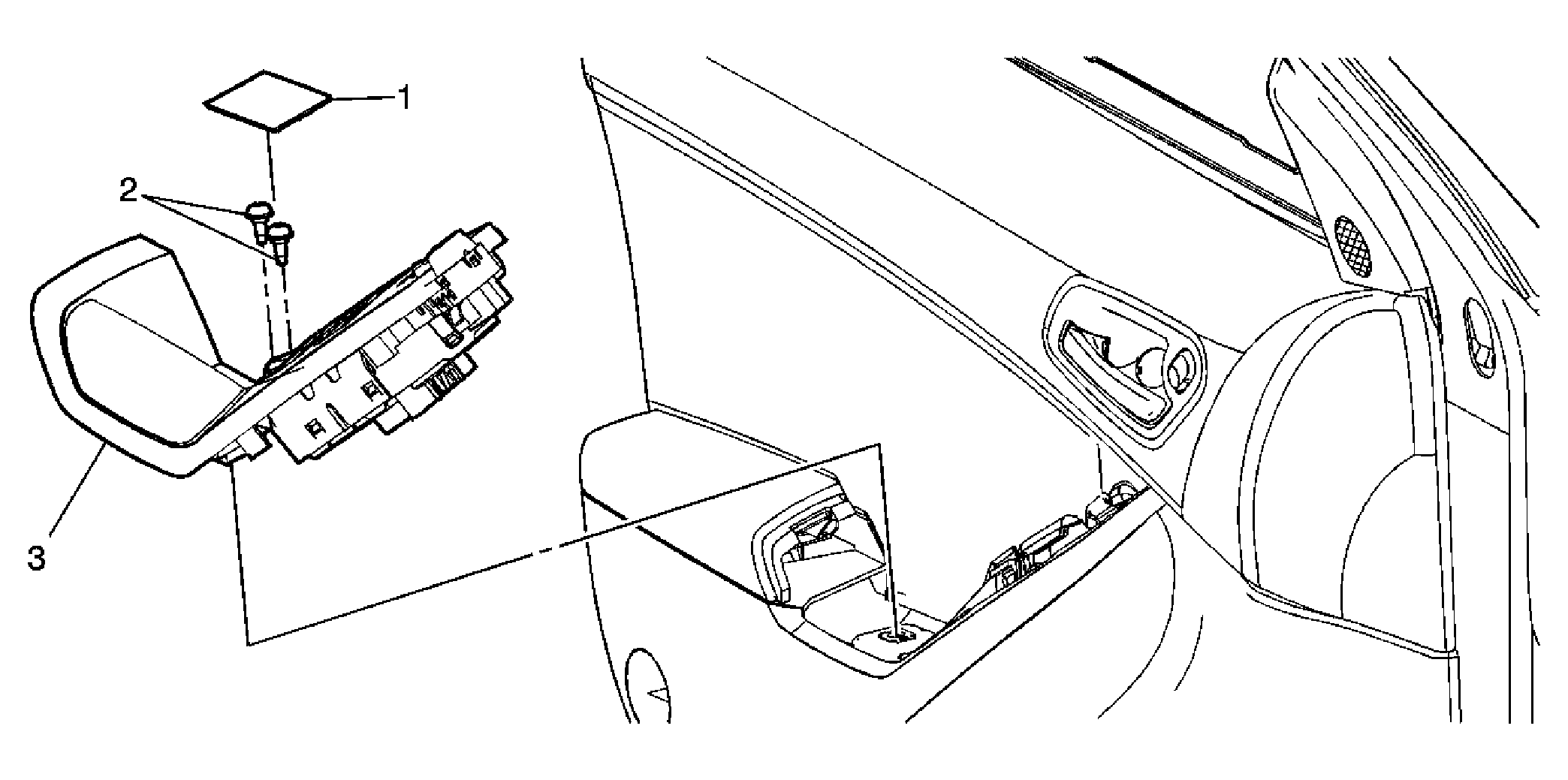

Fig 1: Replacing Front Door Switch Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cover, Side Window Switch Bezel
2	Screw, Side Window Switch Bezel Assembly Tighten: 8 N.m (70 lb in)
3	Bezel Assembly, Side Window Switch
