Power Door Lock Switch Replacement

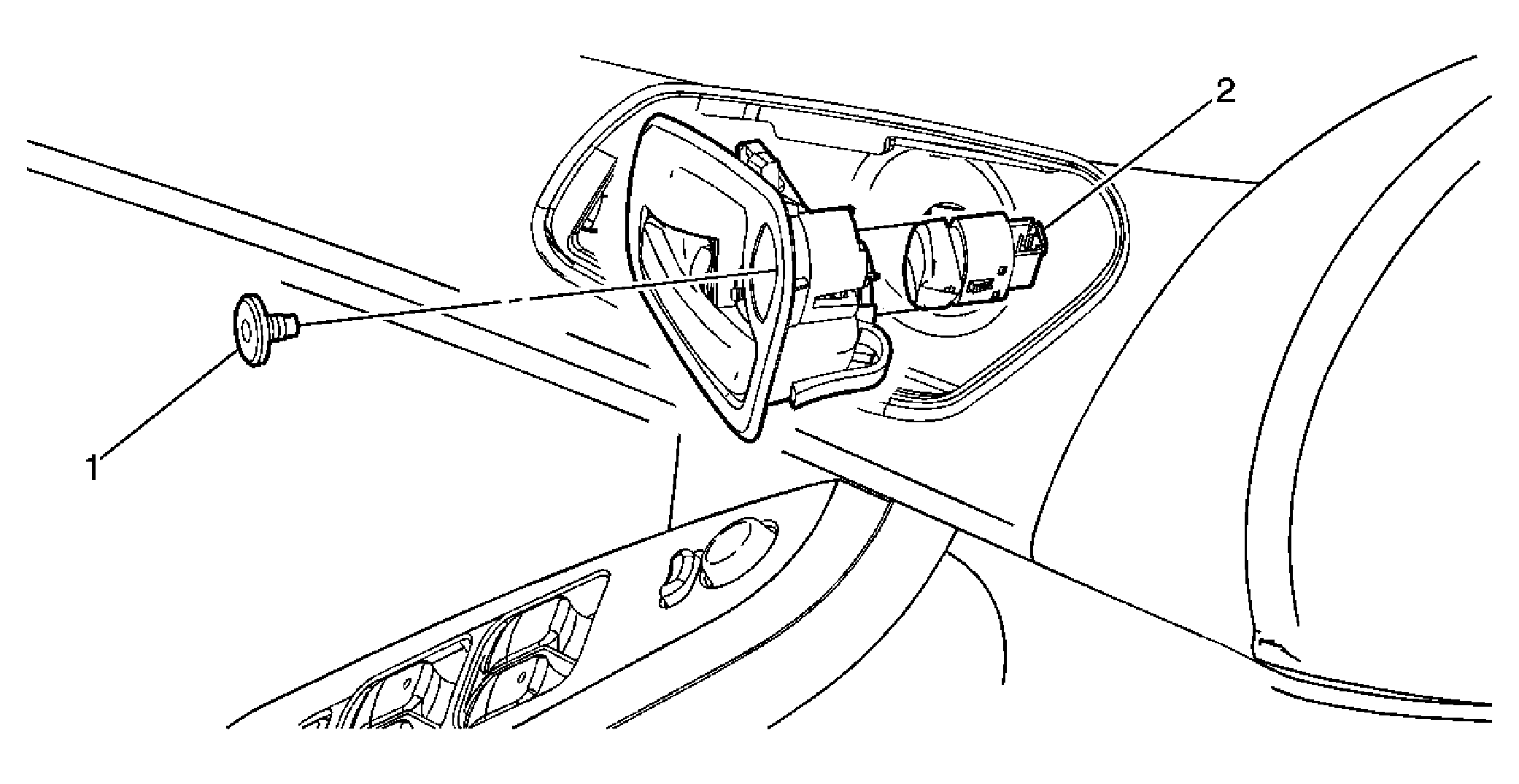

Fig 1: Replacing Power Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Power Door Lock Switch Replacement

Callous	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Bolt, Handle Assembly Inside Door Tighten:  8 N.m (70 lb in)
2	Switch Assembly, Door Lock
