Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure
- Remove the right console trim plate. Refer to Console Trim Panel Replacement - Right .
- Remove the left console trim panel. Refer to Console Trim Panel Replacement - Left .
- Remove the parking brake lever bezel. Refer to Parking Brake Lever Bezel Replacement .
|

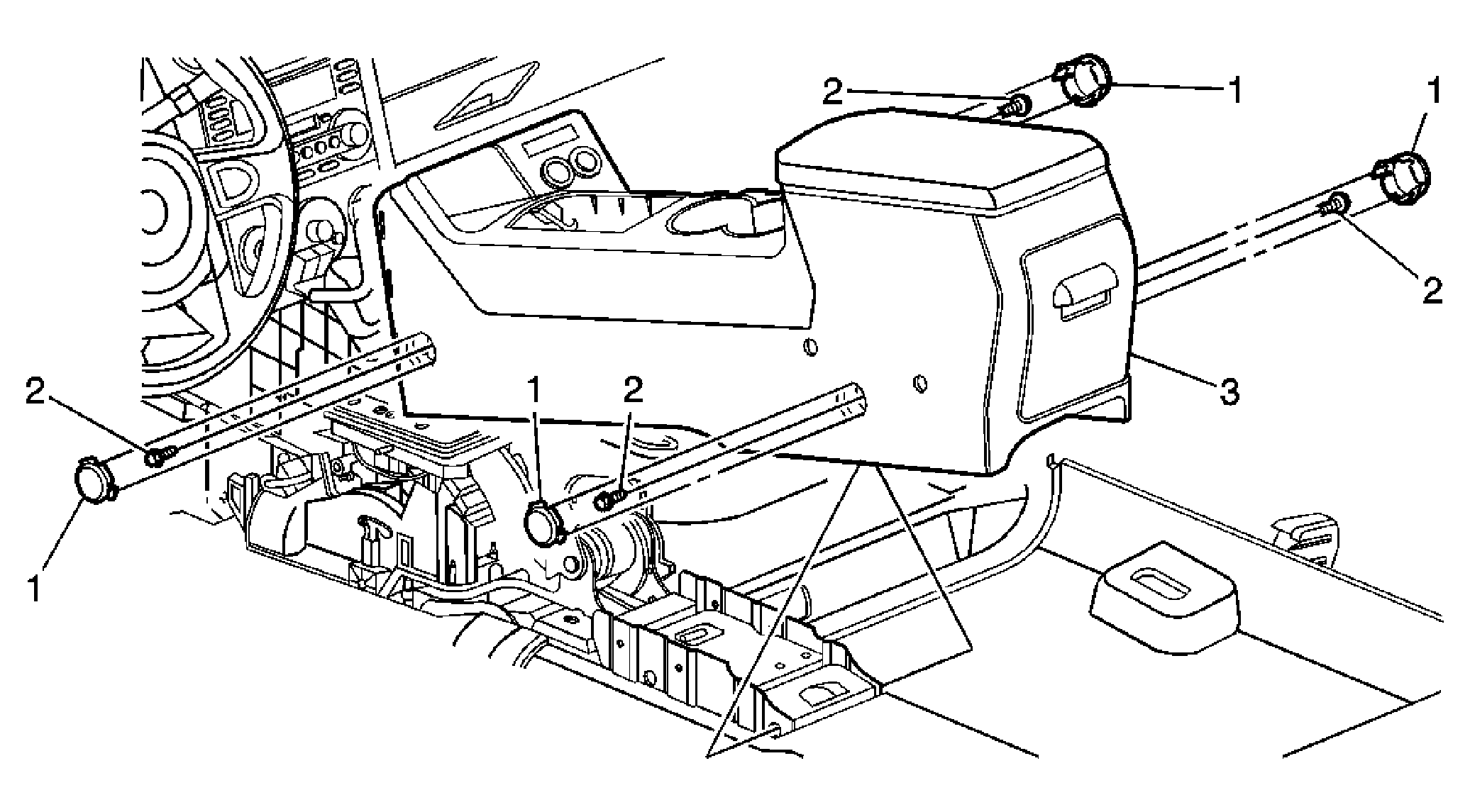

| 1 |
Trim Cover, Console Bolt (Qty: 4)
Tip:
- To gain access to the front console bolts and covers, the front seats need to be positioned in the full rearward position.
- To gain access to the rear console bolts and covers, the front seats need to be positioned in the full forward position.
|
| 2 |
Bolt, Front Floor Console (Qty: 4) Tighten:
6 N.m (53 lb in)
|
| 3 |
Console Assembly, Front Floor
Tip:
- There are 2 retainer clips located at the rearward edge of the shifter bezel. Care must be taken when lifting the console from this area to avoid damaging the shifter bezel.
- Disconnect the electrical connectors.
|
