Removal Procedure

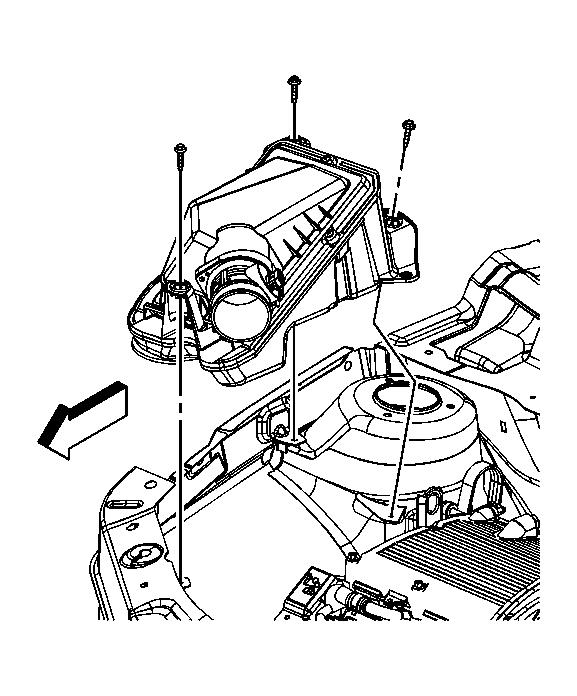

    Fig 1: Removing Air Cleaner Assembly
    GM1459598Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
  2. Remove the air cleaner assembly bolts.
  3. Remove the air cleaner assembly.
