Installation Procedure

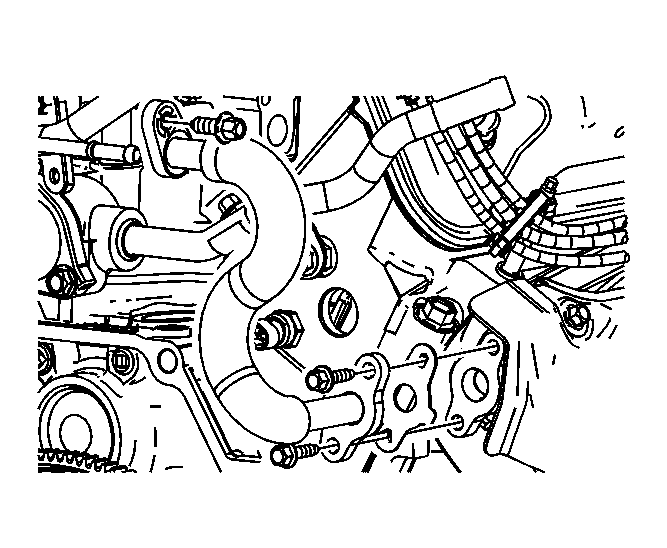

Fig 1: Removing EGR Pipe

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the EGR pipe to the exhaust manifold.
Tighten: Tighten the EGR pipe bolts to 25 N.m (18 lb ft).
Install the EGR pipe to the EGR valve.
Install the EGR pipe bolt.
Tighten: Tighten the bolt to 30 N.m (22 lb ft).
