High Mounted Stop Lamp Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

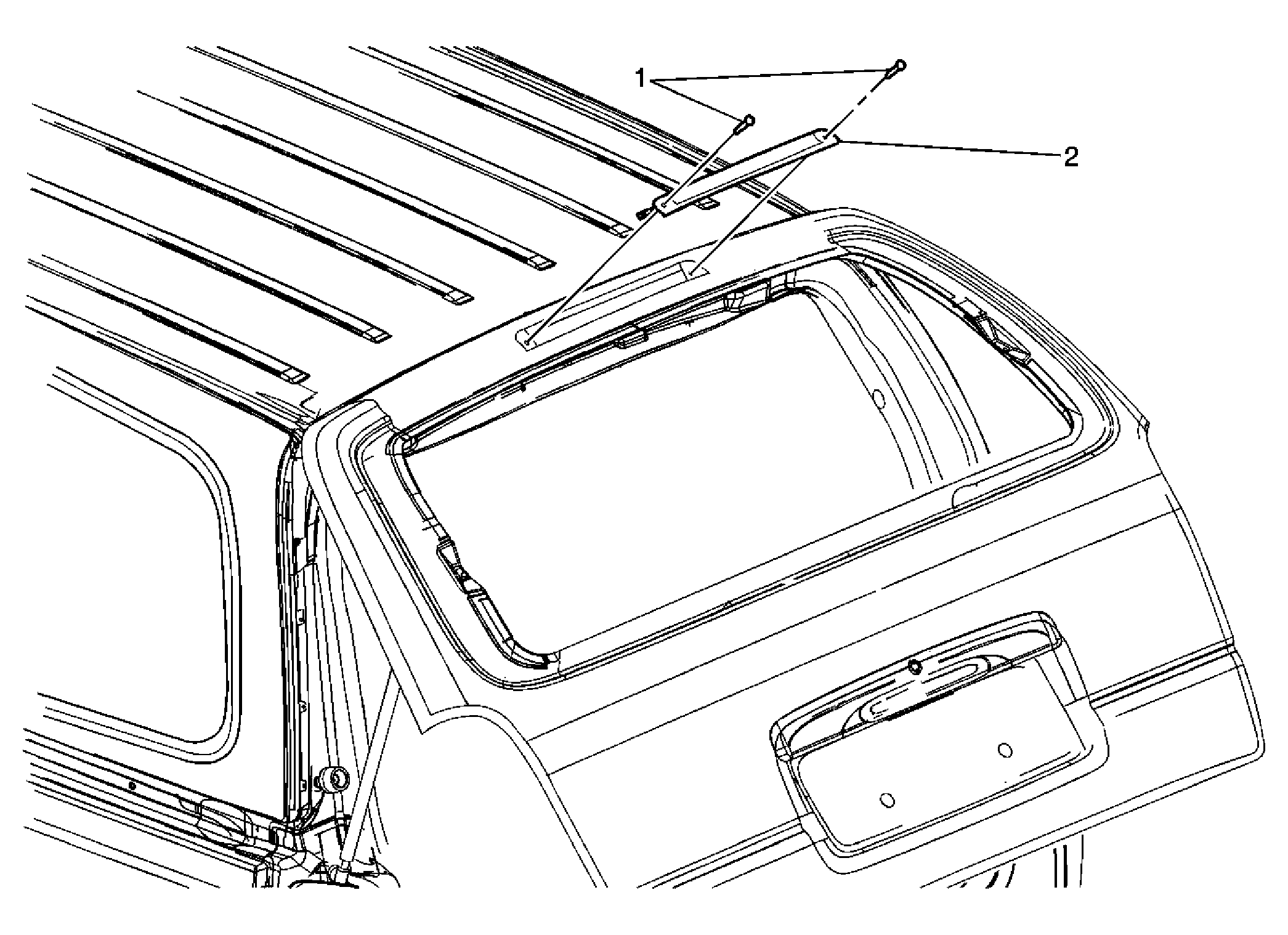

Fig 1: Replacing High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screw, High Mounted Stop Lamp (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Lamp Assembly, High Mounted Stop Tip: Pull the high mounted stop lamp assembly rearward to remove. Disconnect the electrical connector. There are no bulbs to be replaced, the lamp assembly has LED lights and must be replaced as an assembly.
