Object Detection Schematics

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

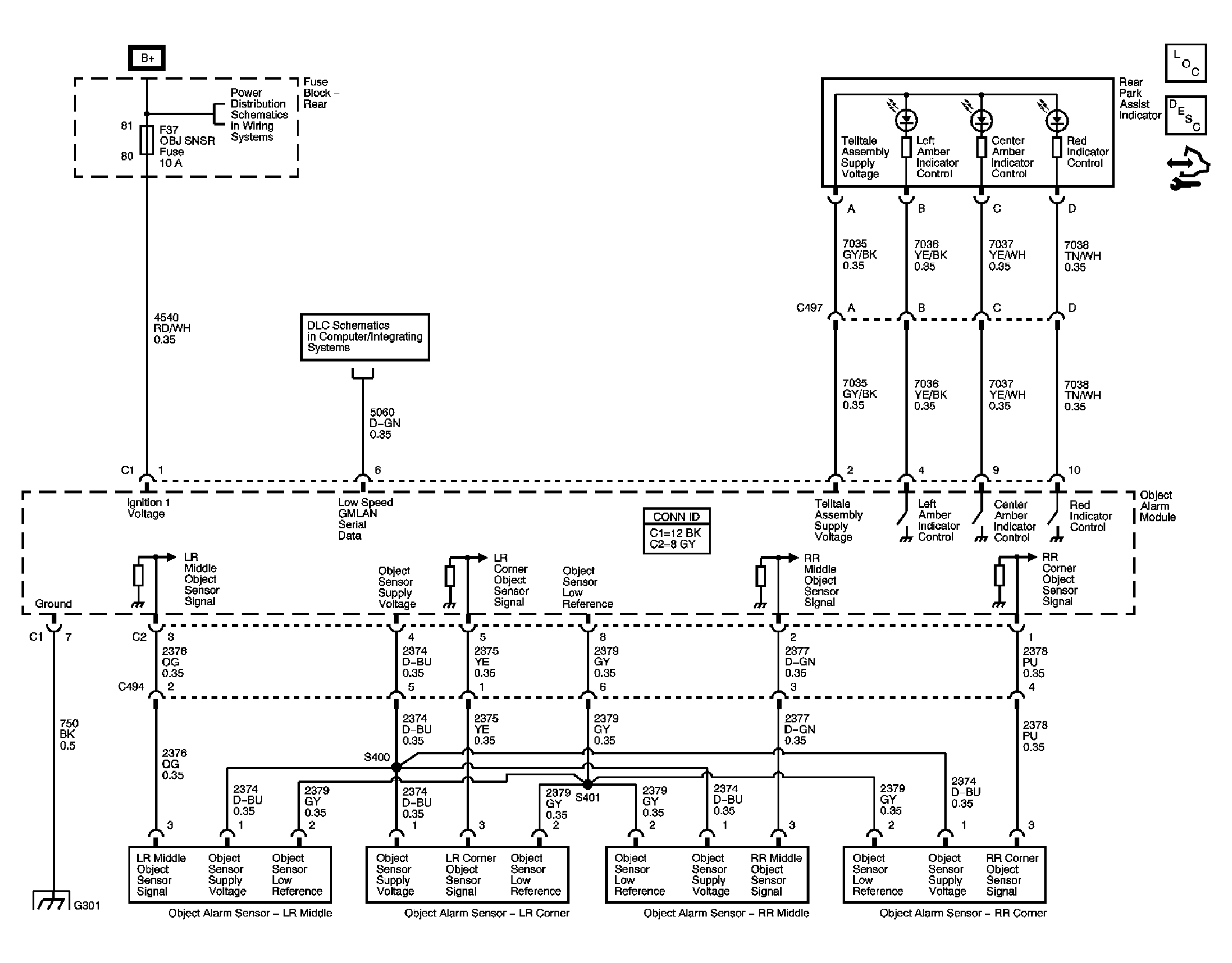

Fig 1: Rear Park Assist Schematic - UD7

Courtesy of GENERAL MOTORS CORP.
