Automatic Transmission Shift Lock Control Component Views

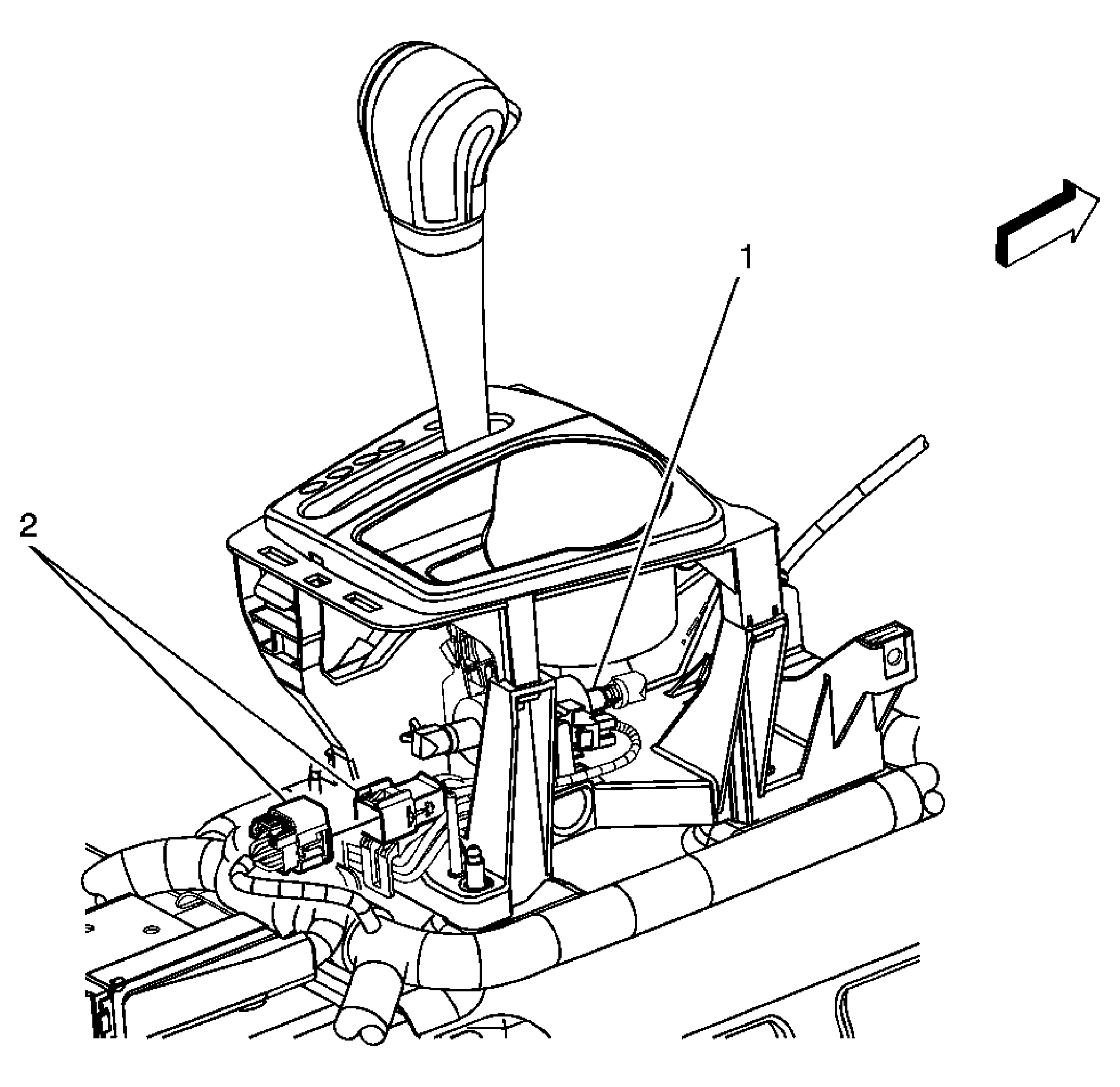

Fig 1: Automatic Transmission Shift Lock Control Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	A/T Shift Lock Control Assembly, Connector
