Power Door Systems Component Views

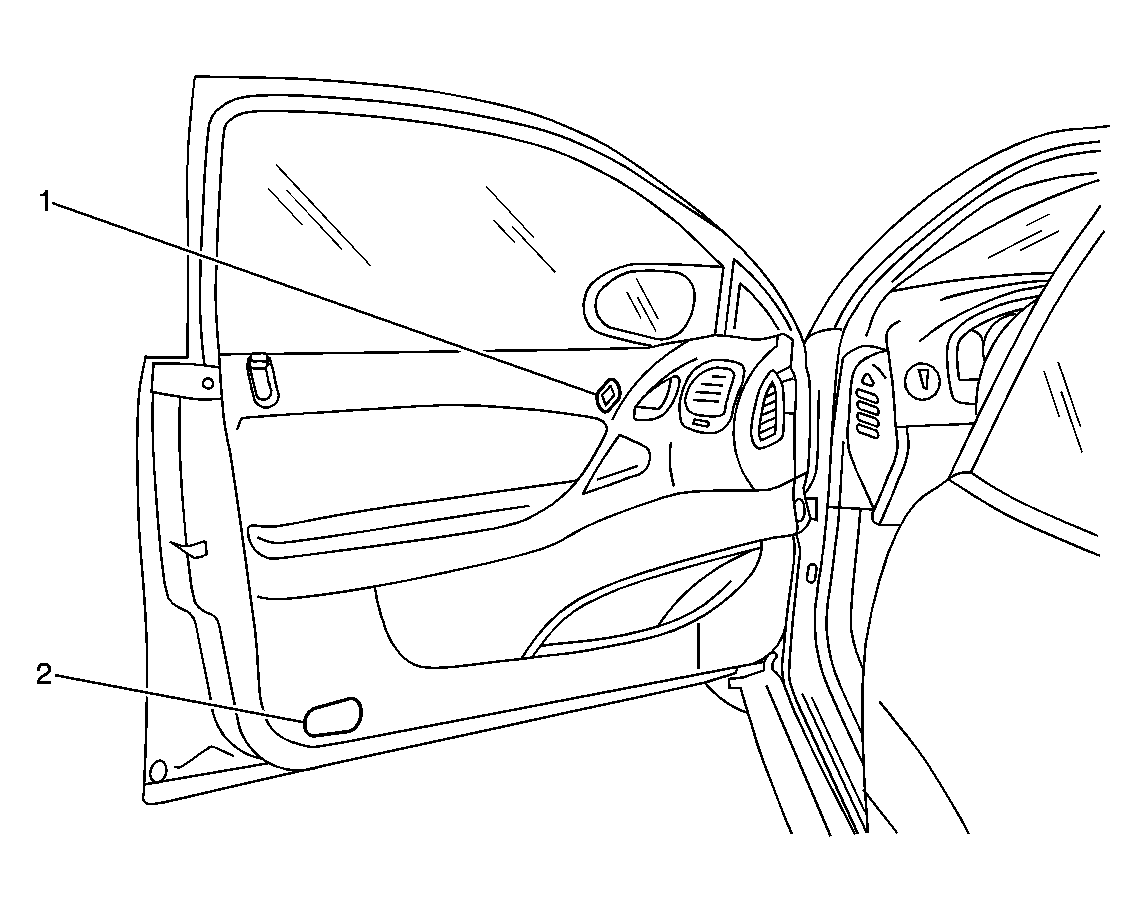

Fig 1: Left Front Door Schematic

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Mirror Switch
2	Driver Door Courtesy Lamp

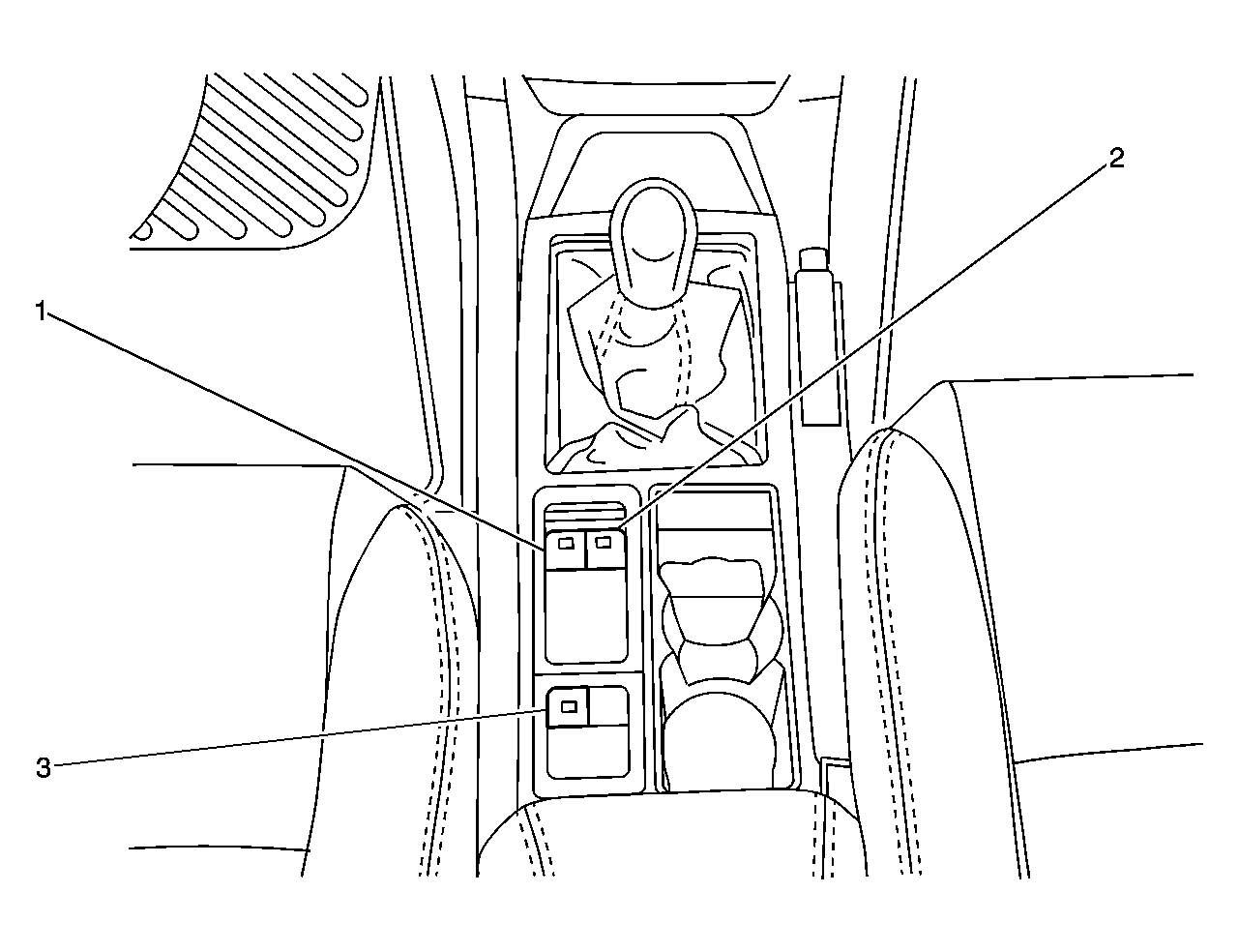

Fig 2: Power Window Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Window Switch
2	Passenger Window Switch
3	Traction Control Switch
