Installation Procedure

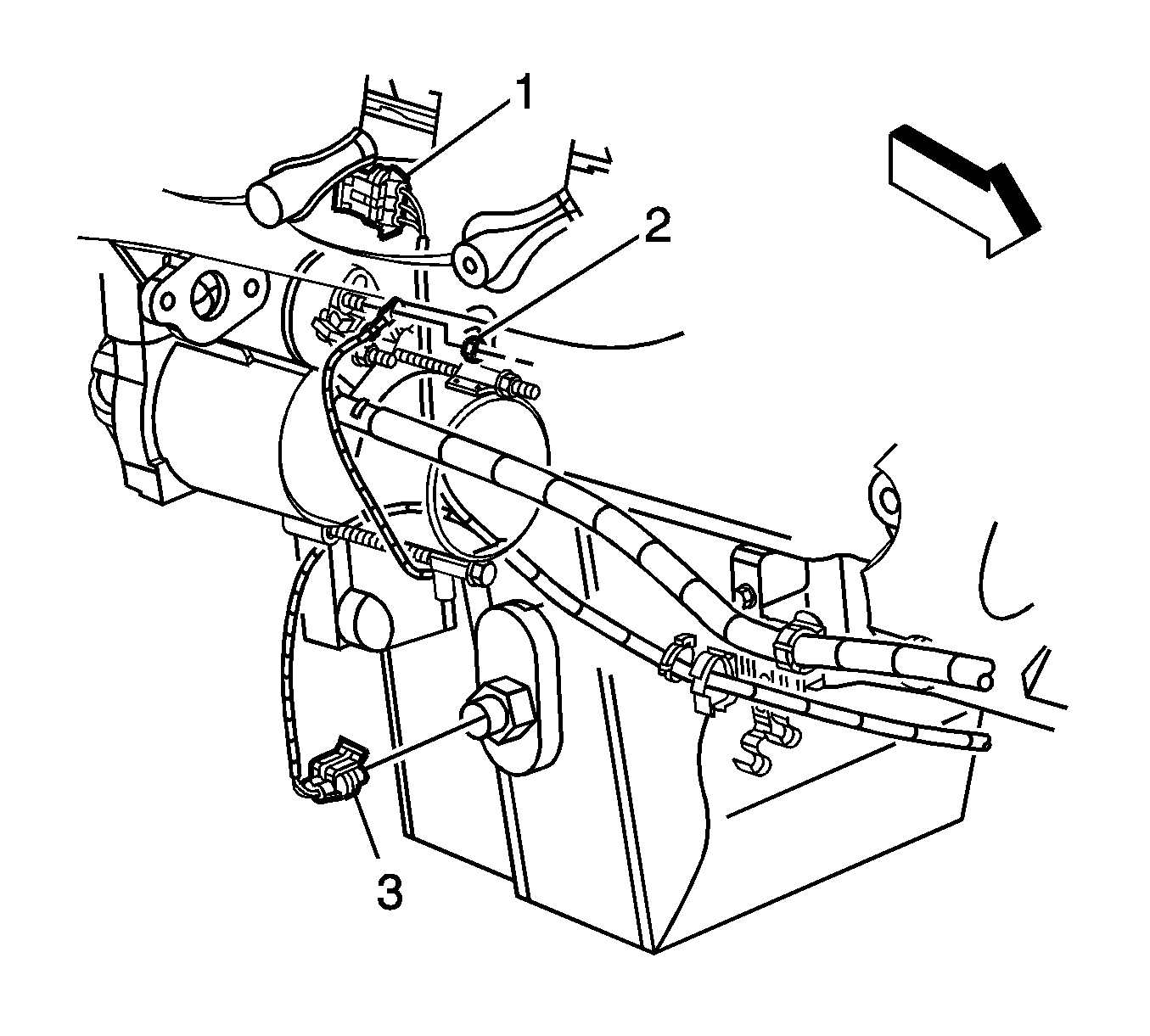

Fig 1: View Of Oil Level Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the drain plug.
Tighten: Tighten the drain plug to 25 N.m (18 lb ft).
Install the engine oil level sensor.
Tighten: Tighten the drain plug to 20 N.m (15 lb ft).

Fig 2: View Of Oil Level Sensor & CKP Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Reconnect the electrical connector (3).
Lower the vehicle.
Refill the engine. Refer to Capacities - Approximate Fluid in General Information.
