Installation Procedure

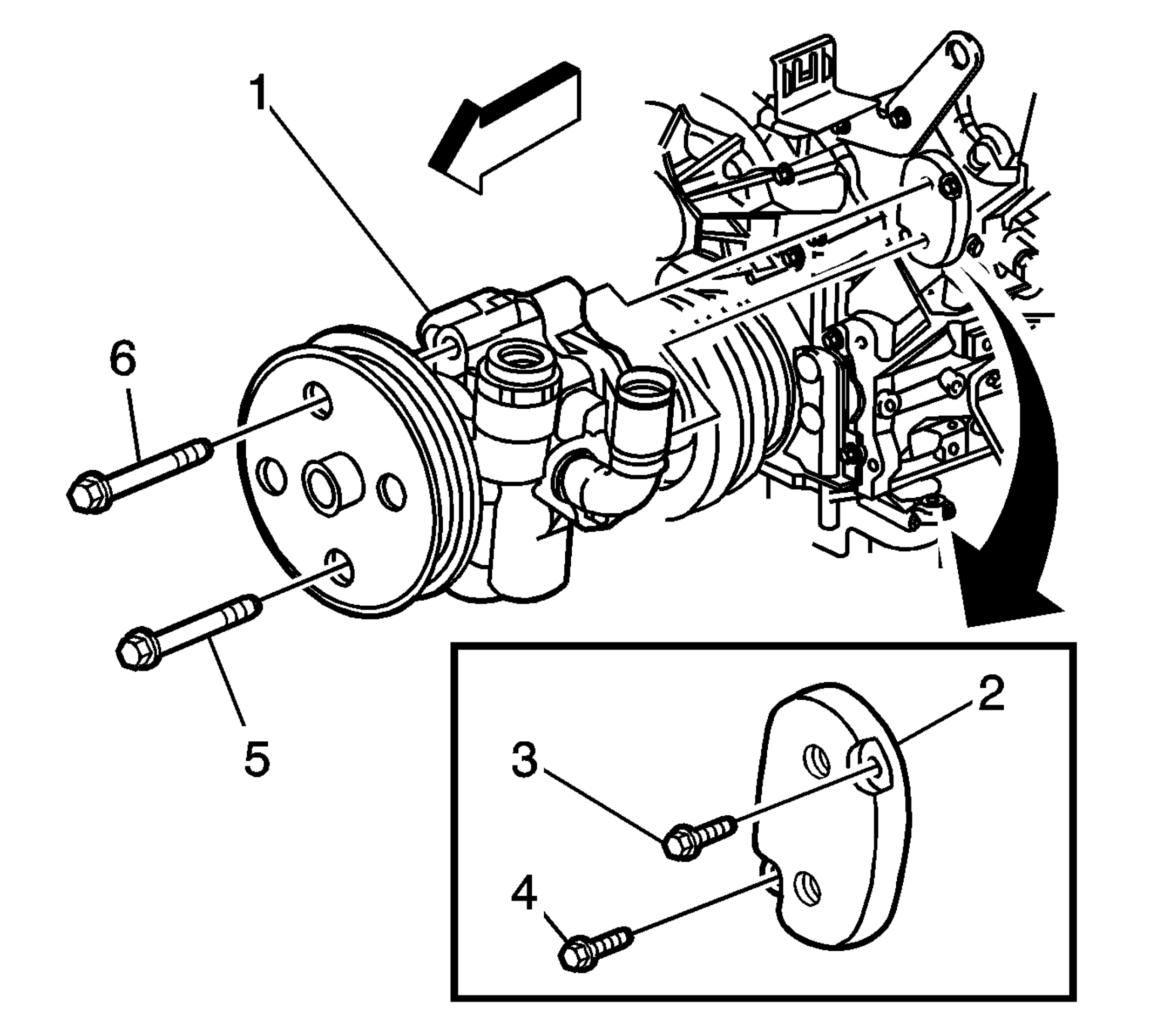

    Fig 1: Removing/Installing Power Steering Pump & Bracket
    GM1548138Courtesy of GENERAL MOTORS CORP.
  1. Install the mounting bracket (2) to the cylinder head.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 2 bolts (3,4) to the bracket.

    Tighten:  Tighten the 2 bolts to 28 N.m (21 lb ft).

  3. Install the power steering pump to the bracket. Refer to Power Steering Pump Replacement .
