Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Fig 1: Exploded View Of Stabilizer Shaft Link
    GM1383151Courtesy of GENERAL MOTORS CORP.
  4. Use a wrench in order to hold the stabilizer shaft link upper stud (7).
  5. Remove the upper nut (1).
  6. Remove the upper washer (2).
  7. Remove the upper insulator (3).
  8. Remove the retainer (4).
  9. Separate the wheel speed sensor harness and the insulator from the strut bracket.
  10. Turn the sleeve that retains the brake hose to the strut bracket.
  11. Align the flats on the sleeve with the strut bracket opening.
  12. Separate the brake hose from the strut bracket.
  13. Position a jack and a block of wood below the control arm ball joint.
  14. Raise the jack in order to support the control arm.

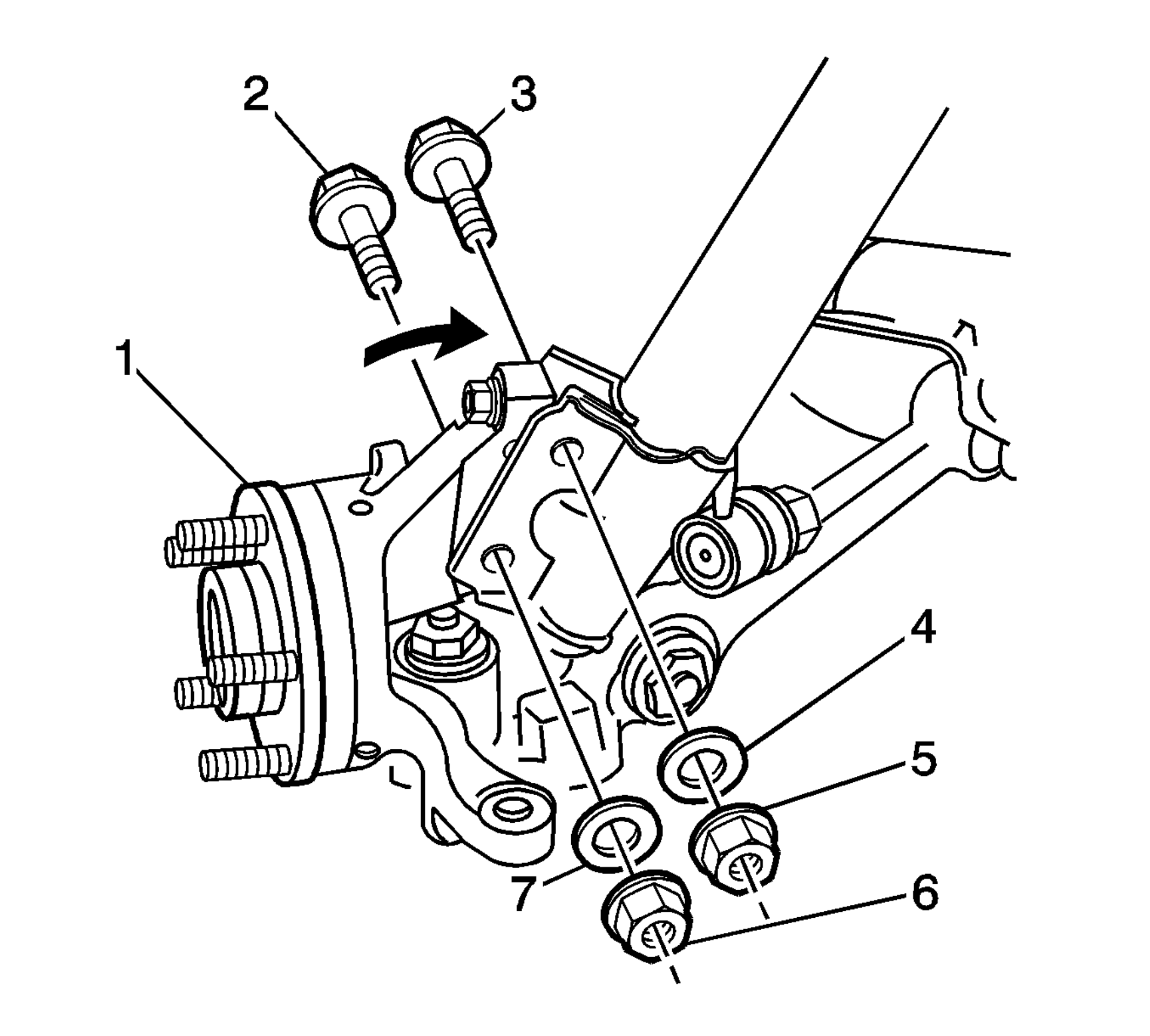

  15. Fig 2: Identifying Knuckle-To-Strut Bolts & Nuts
    GM1548052Courtesy of GENERAL MOTORS CORP.
  16. Remove and discard the 2 nuts (5,6).
  17. If equipped, remove the 2 washers (4,7).
  18. Remove and discard and the 2 bolts (2,3).
  19. Fig 3: View Of Wheel Speed Sensor Connector & Bolts
    GM1353809Courtesy of GENERAL MOTORS CORP.
  20. Lift the locking tab on the wheel speed sensor connector (4).
  21. Disconnect the wheel speed sensor connector from the knuckle.
  22. Separate the knuckle from the strut.
  23. Fig 4: Exploded View Of Strut Assembly
    GM1386824Courtesy of GENERAL MOTORS CORP.
  24. Remove the strut nut cap (1).
  25. Use a wrench in order to hold the end of the strut rod shaft (4).
  26. Remove and discard the strut nut (2).
  27. Remove the strut bumper stop (3).
  28. Lower the strut assembly.
  29. Remove the stabilizer shaft link from the strut bracket.
  30. Remove the strut assembly from the vehicle.
