Front Caster Adjustment

  1. Remove the front lower control arm rod insulator bushing. Refer to Front Lower Control Arm Rod Insulator Bushing Replacement in Front Suspension.

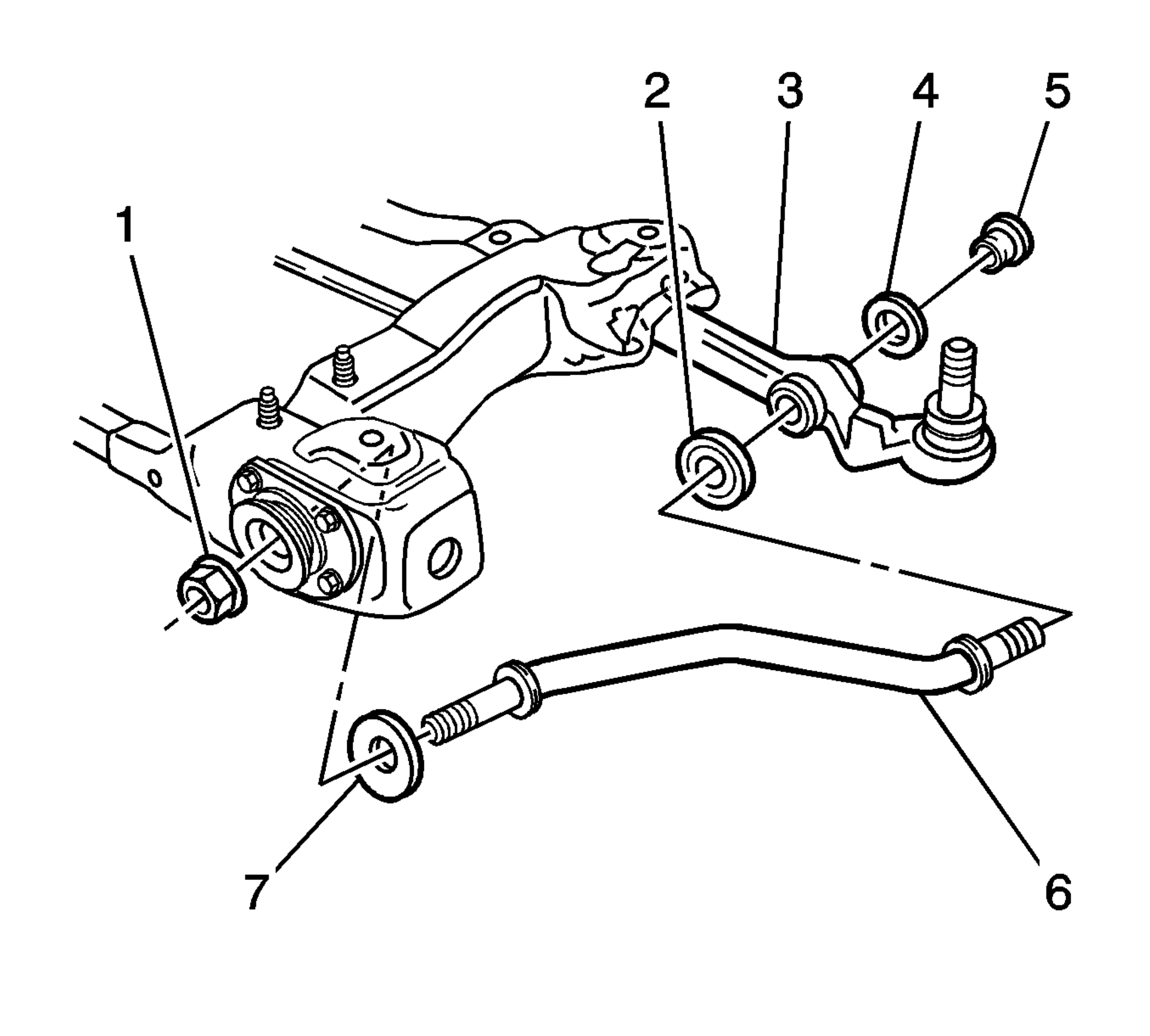

    2. Fig 1: View Of Front Lower Control Arm Rod Assembly
    GM1382523Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: At the factory, 1 washer is on the front of the left control arm rod. Do not add more than 1 washer to a control arm rod.
  2. On the side of the vehicle with the higher caster reading, install 1 washer (7) to the front of the control arm rod.
  3. Install the rod insulator bushing. Refer to Front Lower Control Arm Rod Insulator Bushing Replacement in Front Suspension.
