Computer/Integrating Systems Component Views

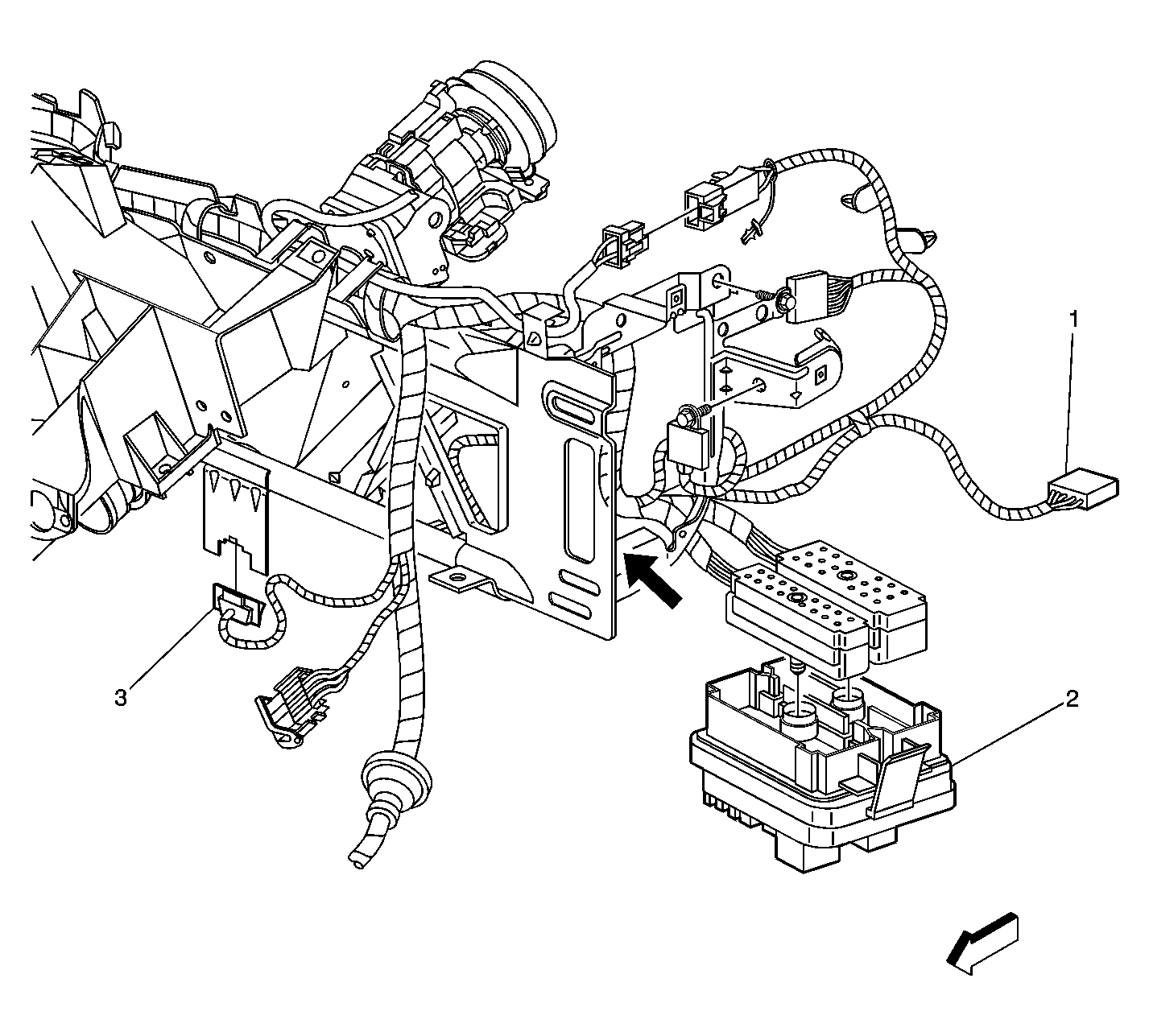

Fig 1: View Of Left Side Of The Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch Connector
2	Fuse Block - Left I/P
3	Data Link Connector (DLC)

Fig 2: I/P Harness - RH Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Assembly Connector
2	Blower Motor
3	Fuse Block - Right I/P, C1 and C2
4	Inflatable Restraint I/P Module Connector
5	Splice Pack, SP203
6	G203
7	Body Control Module (BCM)
8	Blower Motor Resistor Assembly
