Installation Procedure

    Fig 1: View Of Power Window Switch & Plate
    GM802628Courtesy of GENERAL MOTORS CORP.
  1. Install the power window switch to the switch plate.
  2. Press the power window switch into the switch plate until fully seated.
  3. Connect the electrical connector to the power window switch.

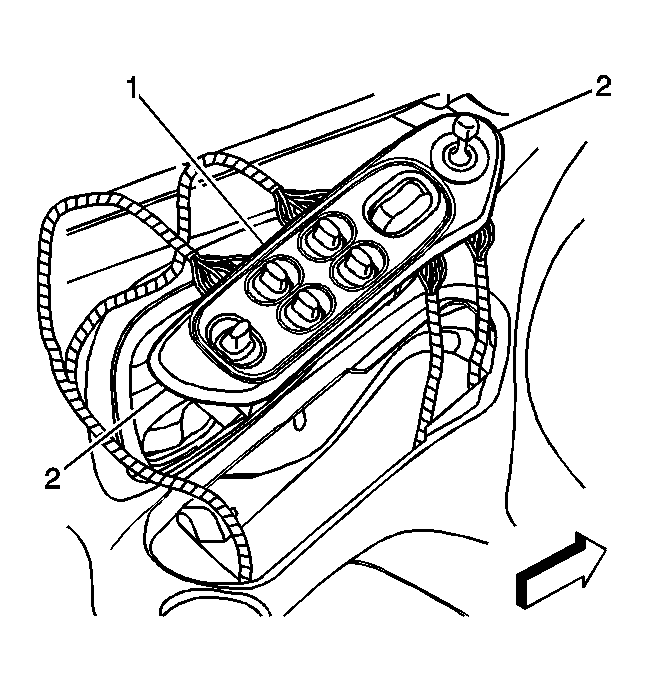

    4. Fig 2: View Of Accessory Switch Plate
    GM585394Courtesy of GENERAL MOTORS CORP.
  4. Install the switch plate (1) to the door trim panel. Press the switch plate (1) into the trim panel until the retaining clips (2) are fully engaged.
