ABS Component Views

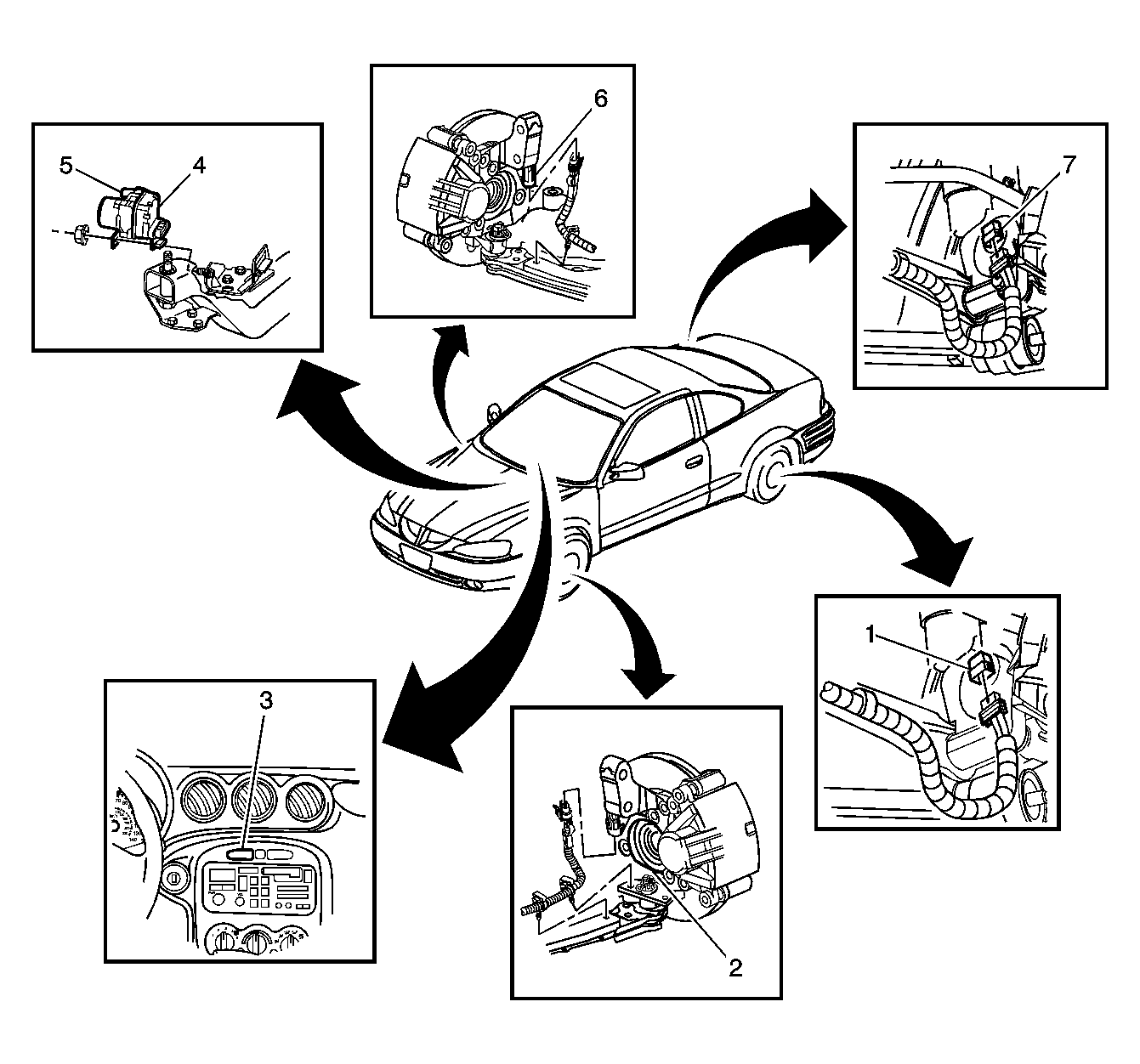

Fig 1: ABS Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - LR
2	Wheel Speed Sensor (WSS) - LF
3	Traction Control Switch
4	Electronic Brake Control Module (EBCM)
5	Brake Pressure Modulator Valve (BPMV)
6	Wheel Speed Sensor (WSS) - RF
7	Wheel Speed Sensor (WSS) - RR
