Engine Electrical Component Views

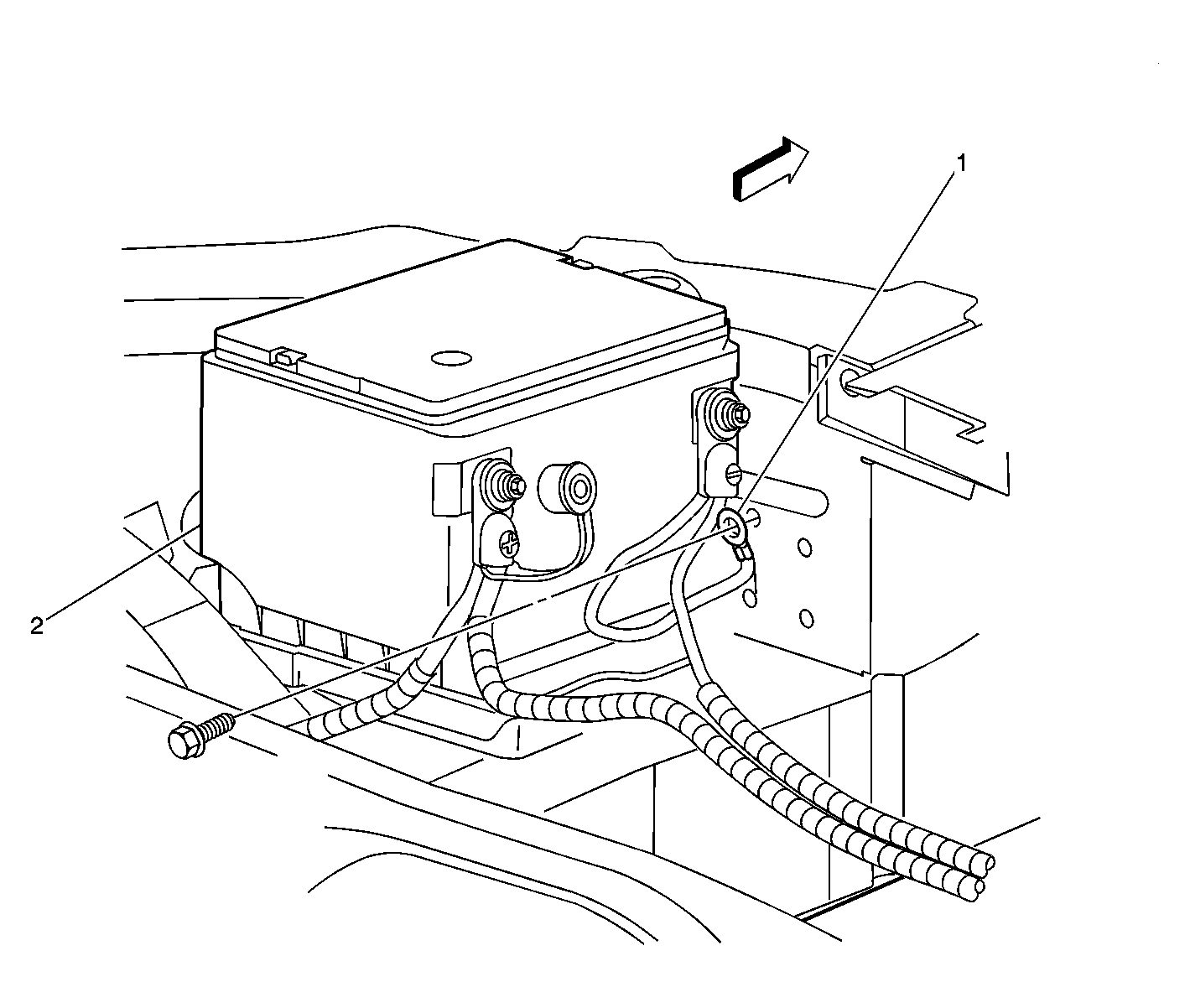

Fig 1: Left Front Side Of Engine Compartment Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	Battery

Fig 2: Starter Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Terminal at Starter Solenoid
2	Fusible Link
3	Starter Solenoid
4	S Terminal
5	Starter

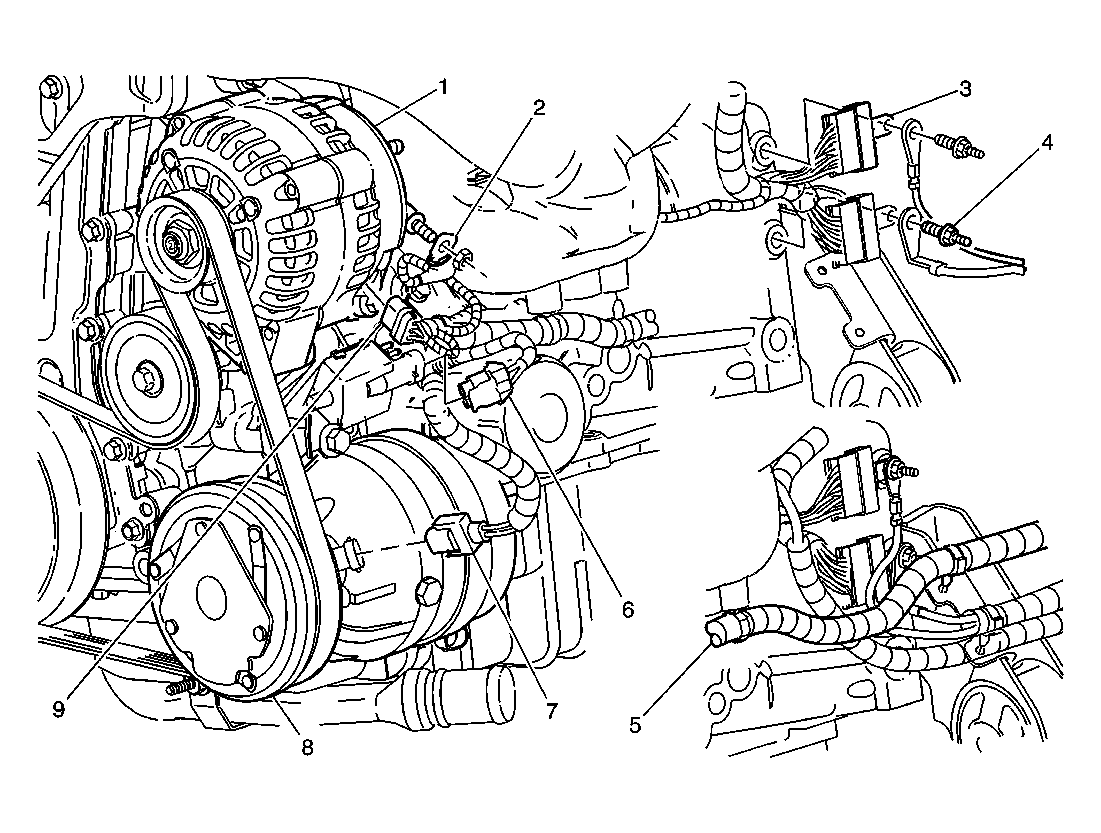

Fig 3: Right Hand Front Of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Generator Lead
3	Ground Splice Pack
4	Ground Splice Pack
5	Engine Wiring Harness
6	Evaporative Emission (EVAP) Canister Purge Solenoid
7	A/C Compressor Clutch Connector
8	A/C Compressor Clutch
9	Generator Connector
