Installation Procedure

  1. Install the valve and pipe assembly to the AIR hose.

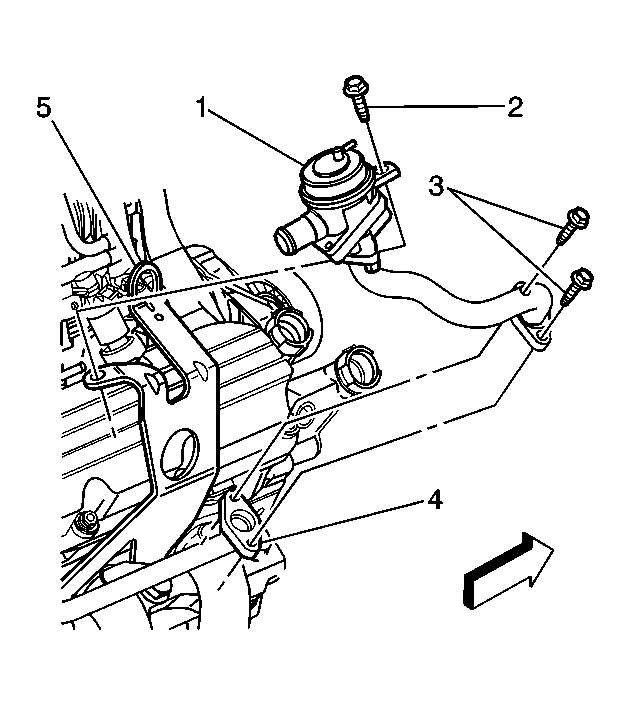

    2. Fig 1: Secondary Air Injection (AIR) Components
    GM507669Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fastener (2) that retains the valve (1) to the bracket (5).

    Tighten:  Tighten the mounting bolt to 9 N.m (80 lb in).

  3. Install the AIR pipe fasteners.

    Tighten:  Tighten the mounting bolts to 9 N.m (80 lb in).

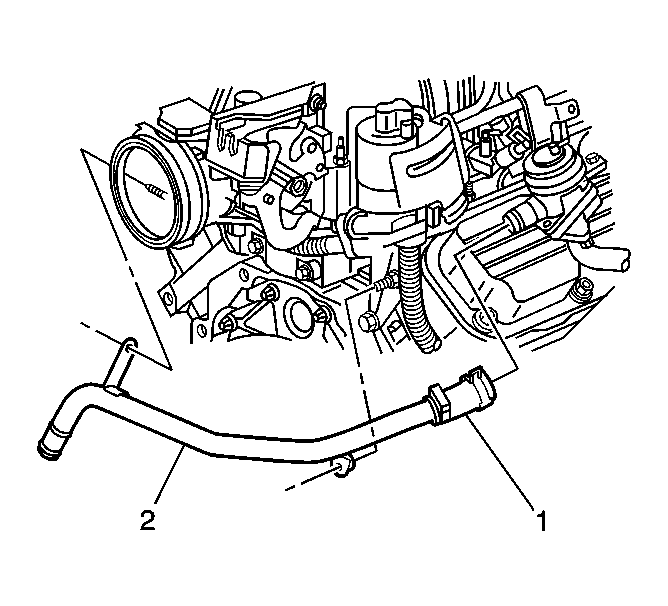

    4. Fig 2: Secondary Air Injection (AIR) Hose
    GM507664Courtesy of GENERAL MOTORS CORP.
  4. Install the pinch clamp (1) back into position.
  5. Connect the vacuum line to the combination valve.
