Installation Procedure

  1. Insert the cable through the driver's floor opening.
    2. Fig 1: View Of Floor Pan Grommet
    GM851242Courtesy of GENERAL MOTORS CORP.
  2. Install the grommet flush with the floor opening.
  3. Install the driver's side front carpet.
    4. Fig 2: View Of Shift Control
    GM851244Courtesy of GENERAL MOTORS CORP.
  4. Connect the shift cable to the shift control assembly.
  5. Install the console. Refer to Console Replacement - Front Floor in Instrument Panel, Gages, and Console.
  6. Raise the vehicle.

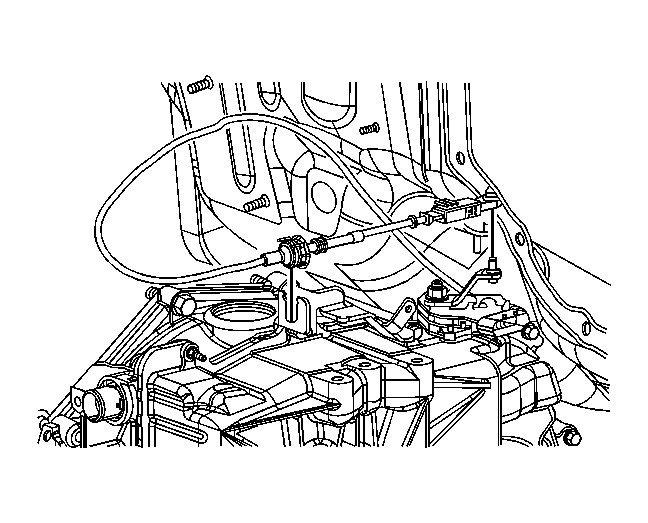

    7. Fig 3: Identifying Shift Cable
    GM1521639Courtesy of GENERAL MOTORS CORP.
  7. Connect the shift cable to the park/neutral position switch.
  8. Connect the shift cable to the transmission cable bracket.

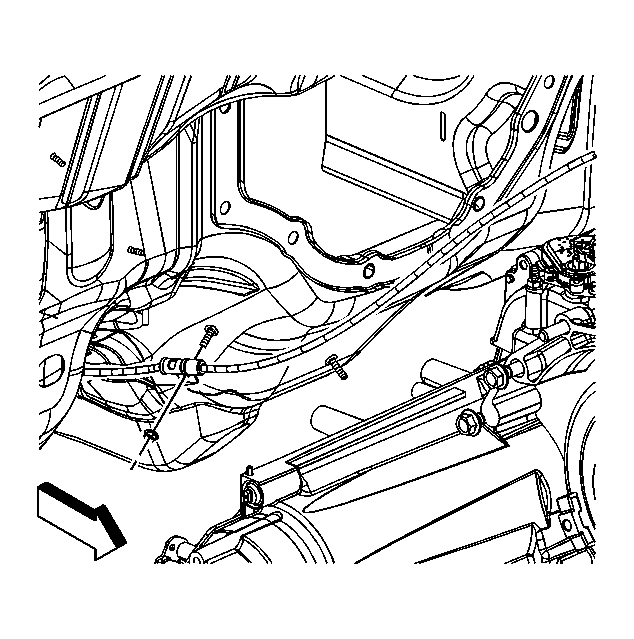

    9. Fig 4: Identifying Shift Cable Retaining Nut
    GM1521636Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  9. Install the shift cable retaining nut near the exhaust heat shield.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  10. Lower the vehicle.
