Installation Procedure

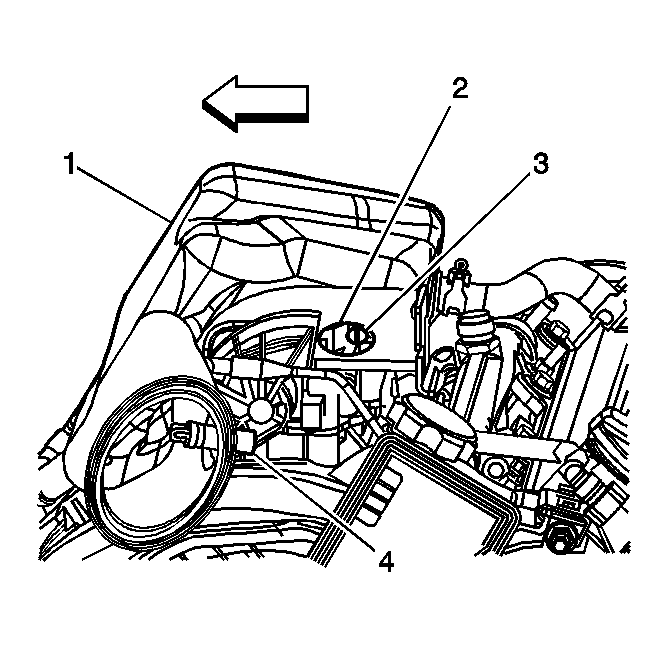

    Fig 1: Locating IAT Sensor
    GM785335Courtesy of GENERAL MOTORS CORP.
  1. Press the IAT sensor (4) into the air cleaner resonator (1).
  2. Connect the IAT sensor harness connector.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Connect the air cleaner duct to the air cleaner resonator.

    Tighten:  Tighten the clamp to 5 N.m (44 lb in).
