Cooling System Component Views

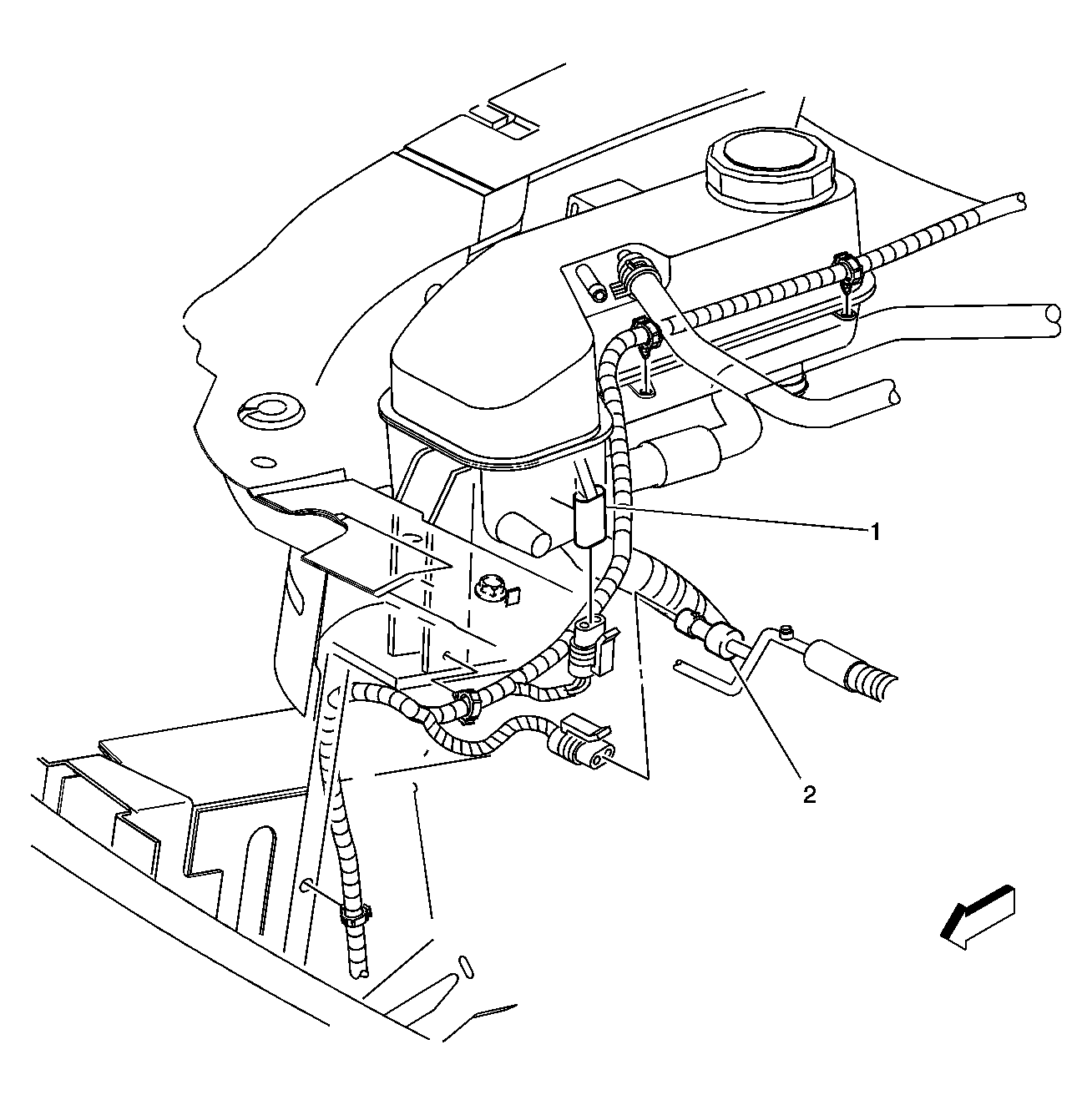

Fig 1: A/C Refrigerant Pressure Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	A/C Refrigerant Pressure Sensor

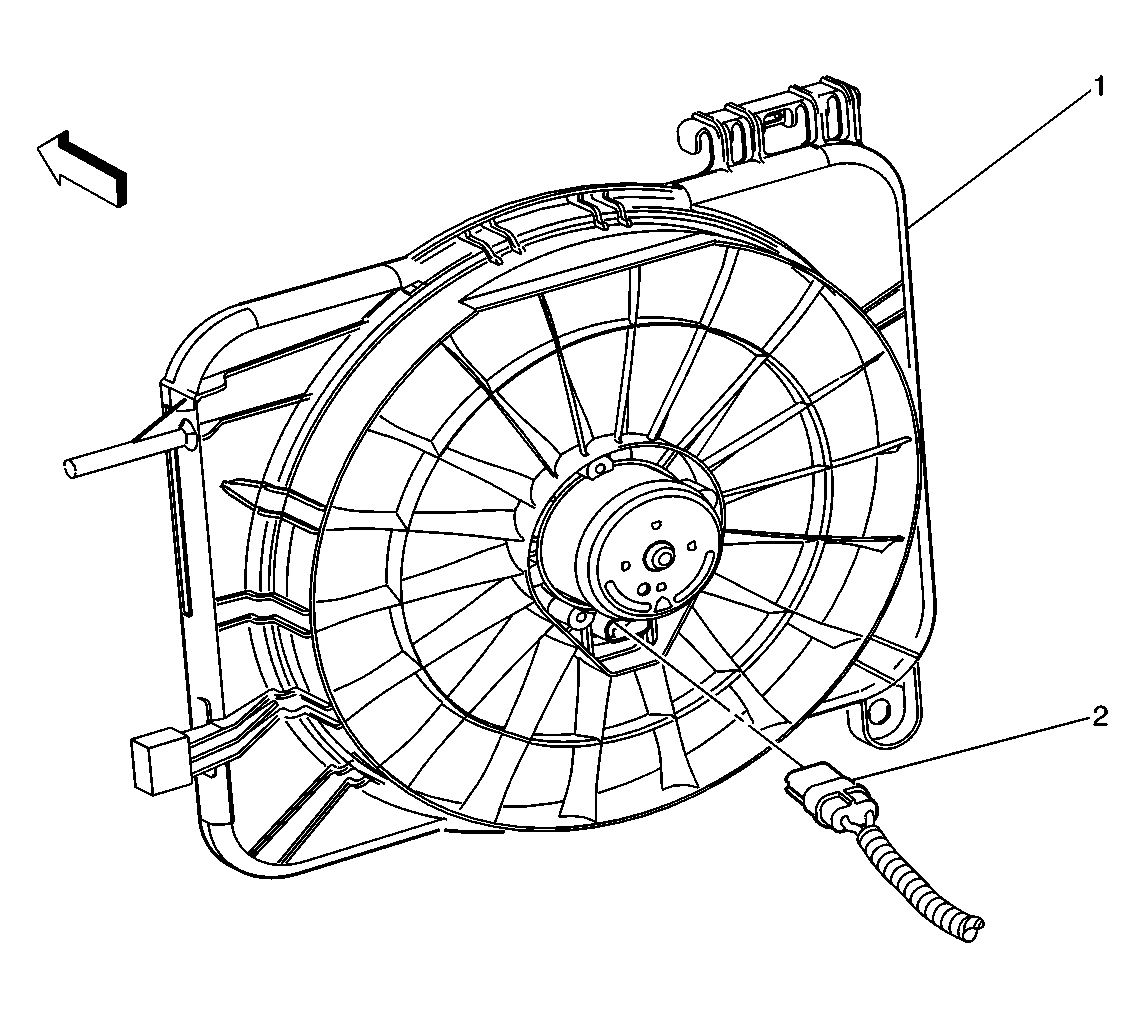

Fig 2: Cooling Fan Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan
2	Cooling Fan Motor Connector
