Repair and Diagnosis
›
Brakes
›
Antilock Brake System, Traction Control System & Stability Control System
›
Schematic and Routing Diagrams
›
ABS Schematics
ABS Schematics
Fig 1: Brake Pressure Modulator Valve (BPMV) Power and Ground - JL9 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: Brake Pressure Modulator Valve (BPMV) Power and Ground - JL4 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 3: Brake Pressure Modulator Valve (BPMV), Steering Angle Sensor, Yaw and Lateral Acceleration Sensor - JL4 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 4: Brake Pressure Modulator Valve (BPMV), Powertrain Control Module (PCM) - JL4 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 5: Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module Schematic
Courtesy of GENERAL MOTORS CORP.

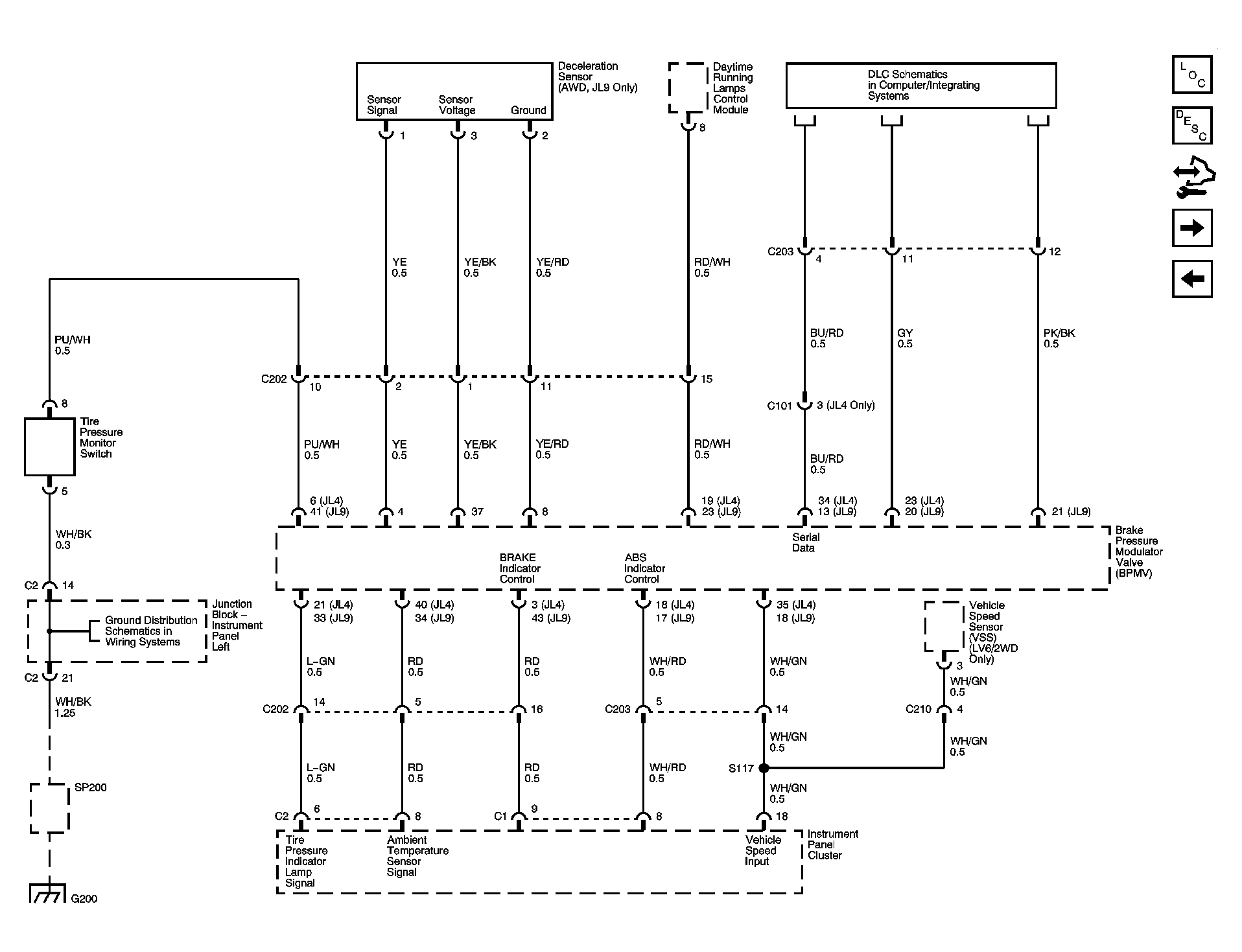

Fig 6: Brake Pressure Modulator Valve (BPMV), Tire Pressure Monitor Switch, Data Link Connector (DLC), Deceleration Sensor, Instrument Panel Cluster (IPC) Schematic
Courtesy of GENERAL MOTORS CORP.

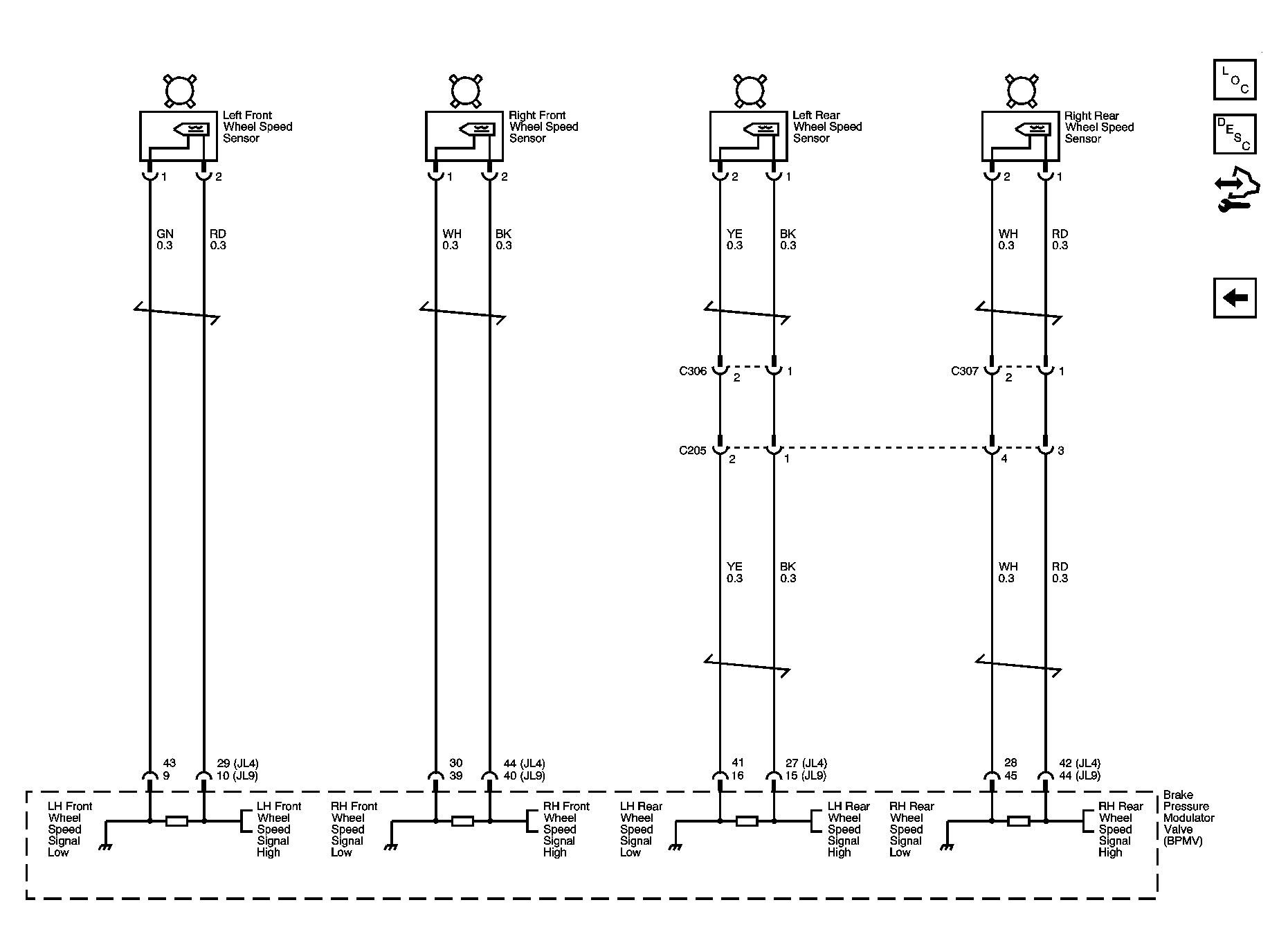

Fig 7: Wheel Speed Sensors Schematic
