Body Control System Schematics

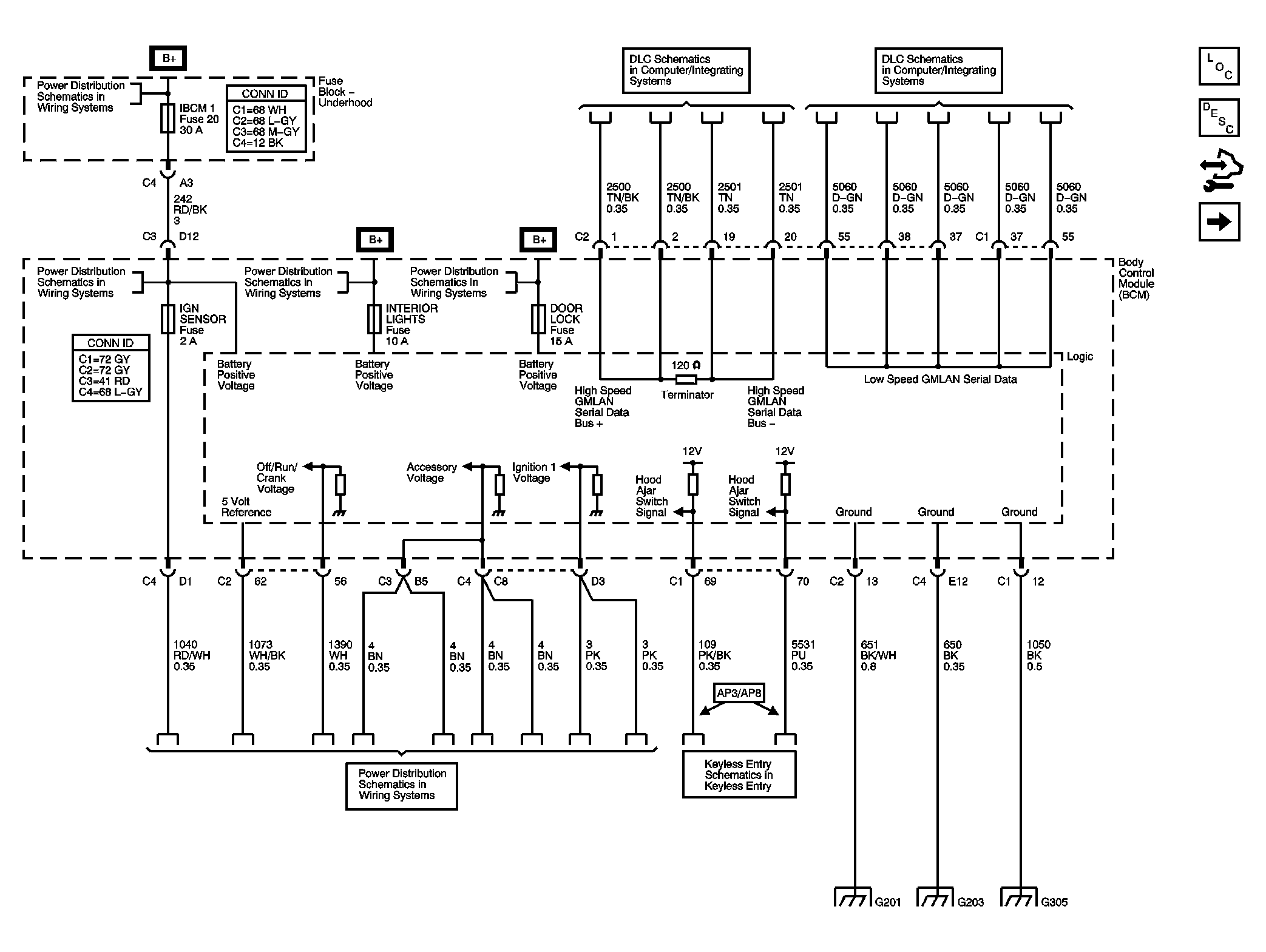

Fig 1: Power, Ground, and DLC

Courtesy of GENERAL MOTORS CORP.

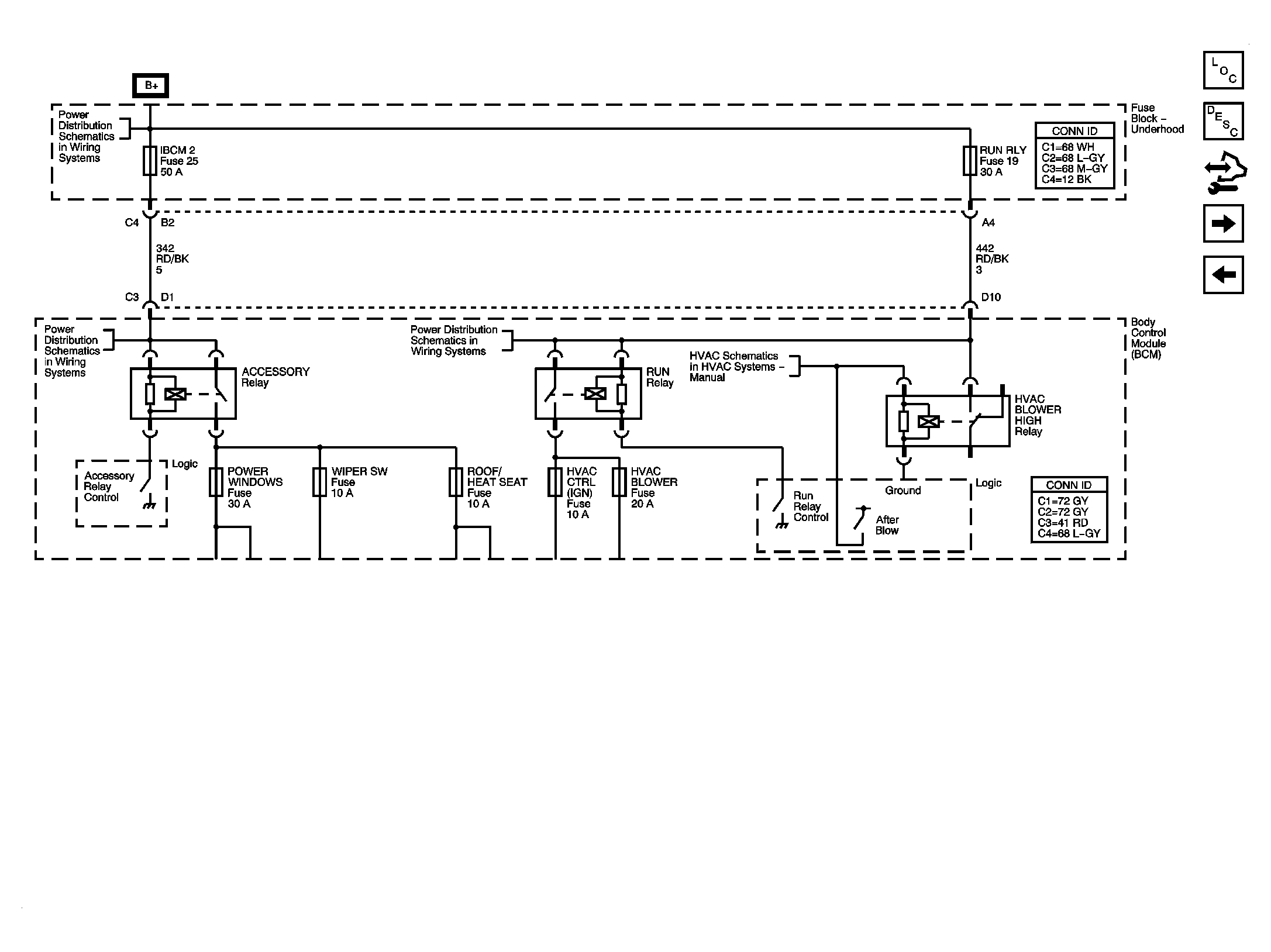

Fig 2: ACCESSORY, HVAC BLOWER HIGH and RUN Relays

Courtesy of GENERAL MOTORS CORP.

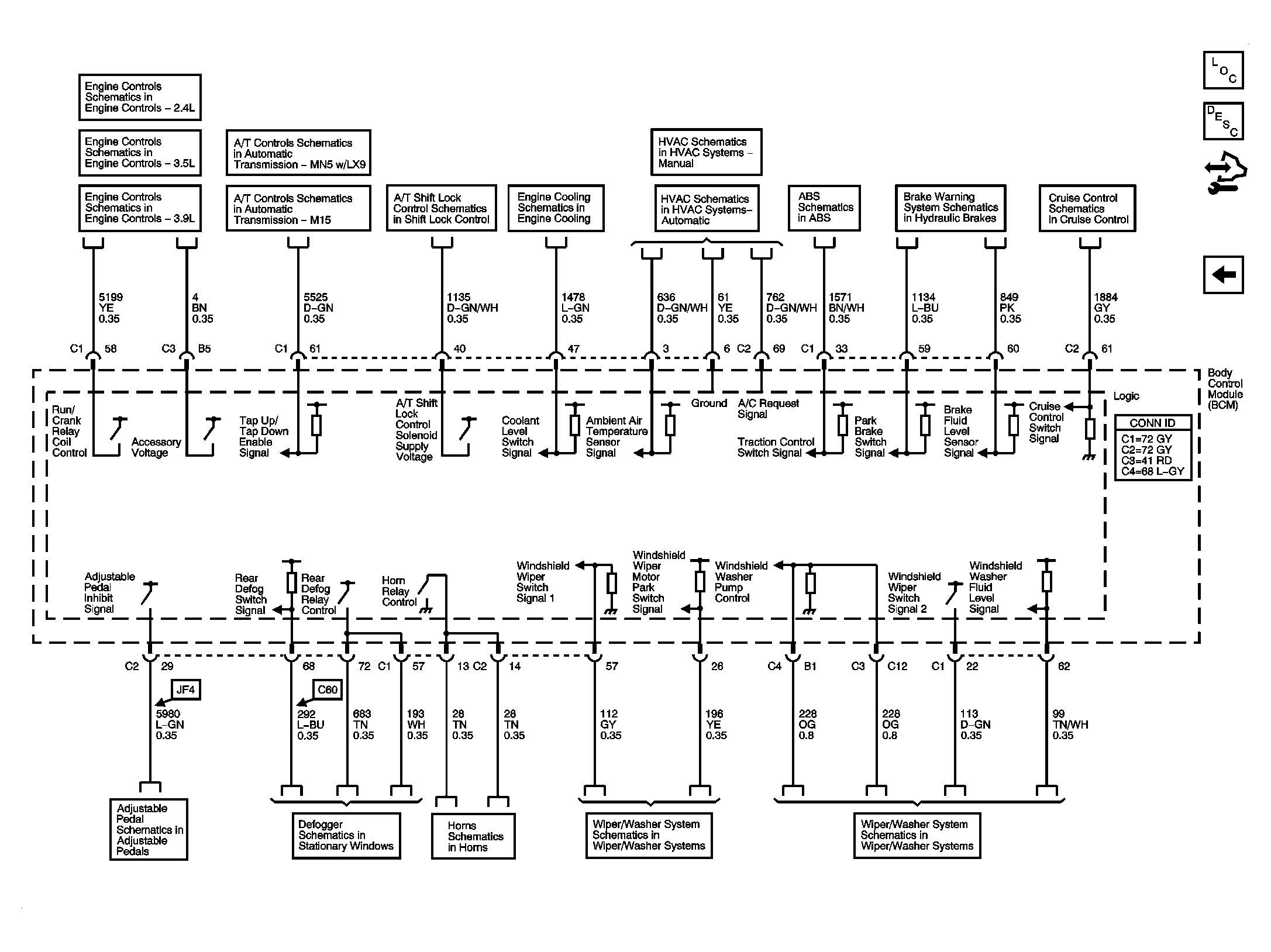

Fig 3: Controlled/Monitored Subsystem References - (1 of 3)

Courtesy of GENERAL MOTORS CORP.

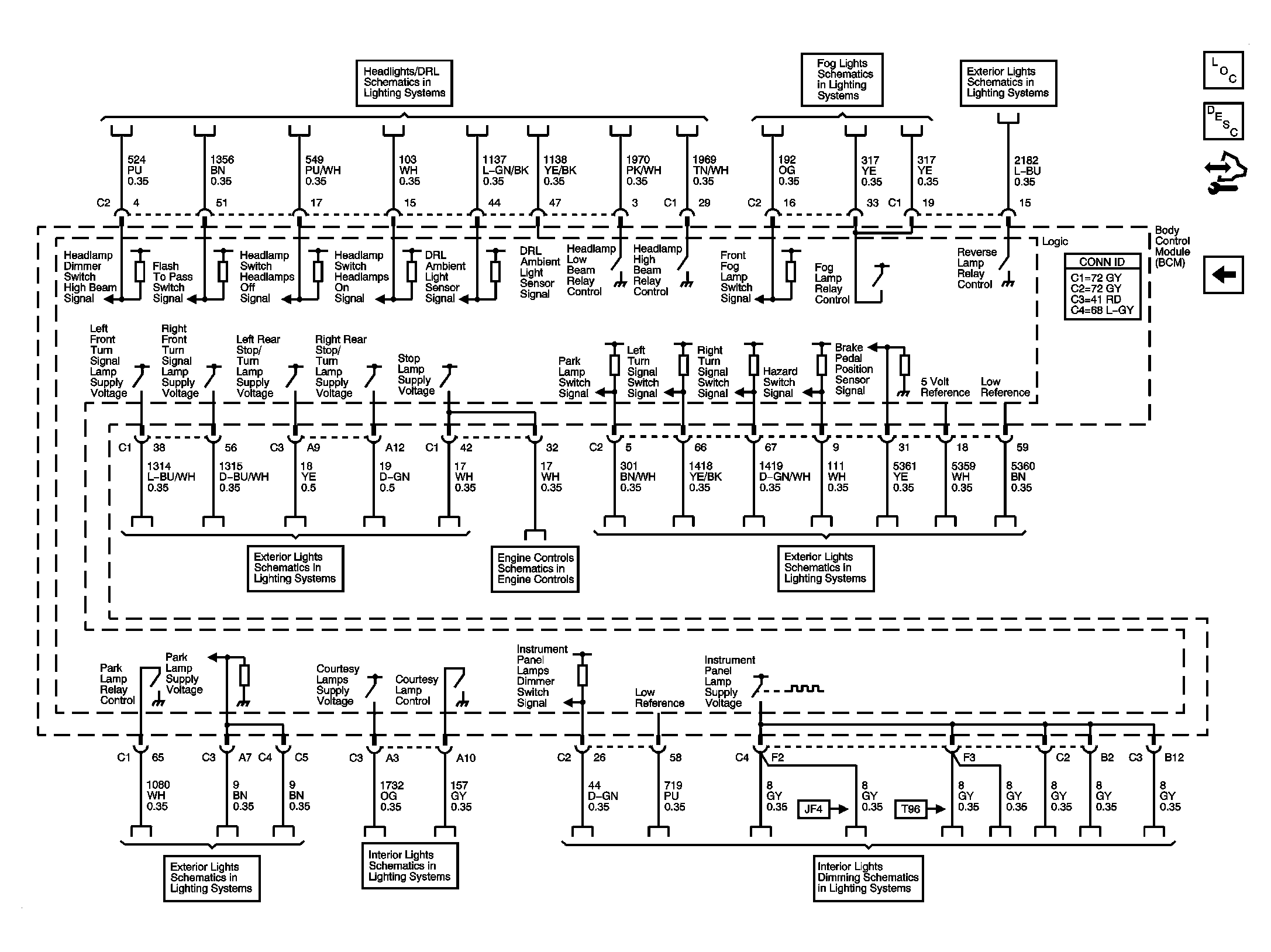

Fig 4: Controlled/Monitored Subsystem References - (2 of 3)

Courtesy of GENERAL MOTORS CORP.

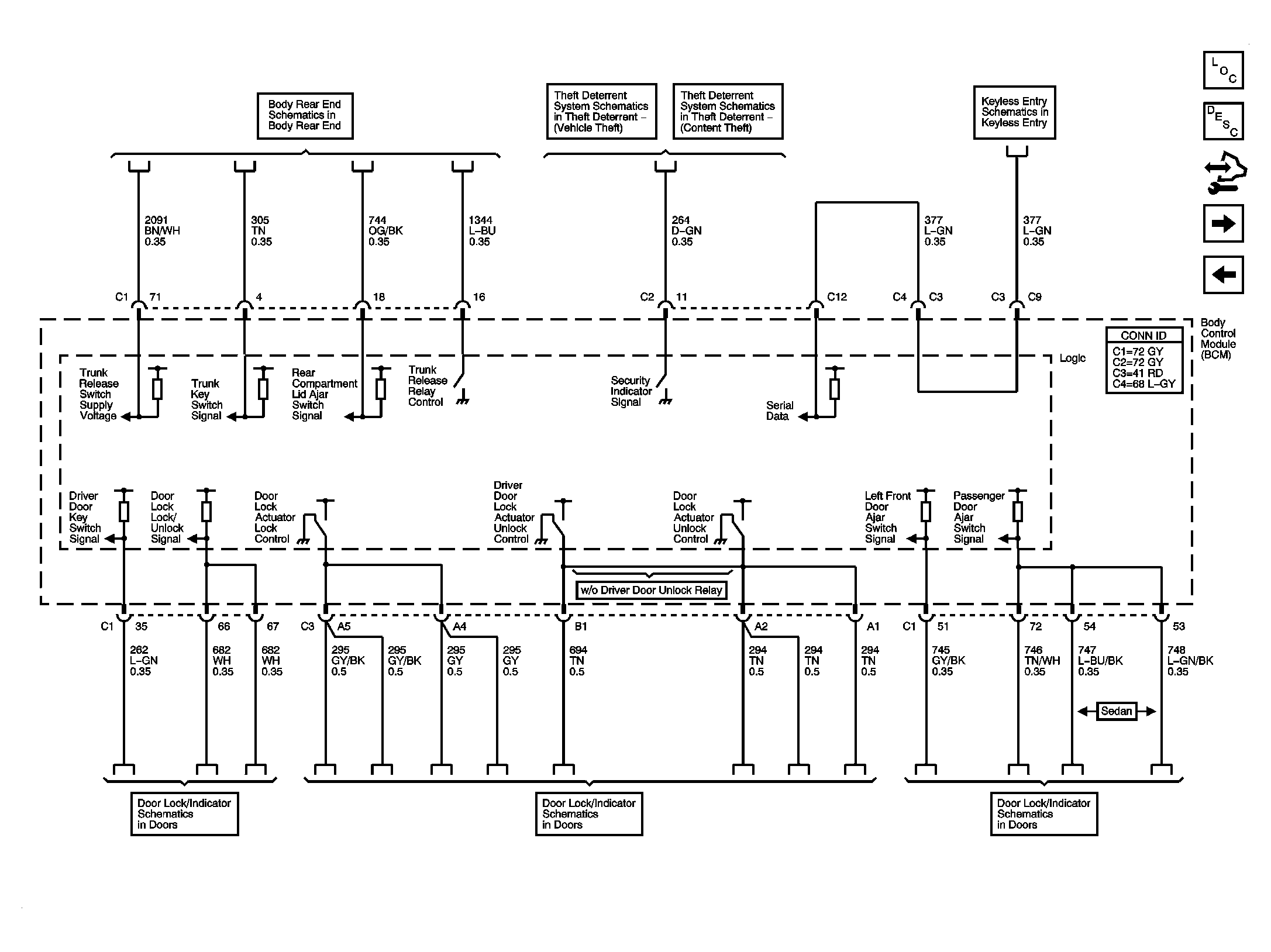

Fig 5: Controlled/Monitored Subsystem References - (3 of 3)

Courtesy of GENERAL MOTORS CORP.
