Front Door Frame Applique Replacement

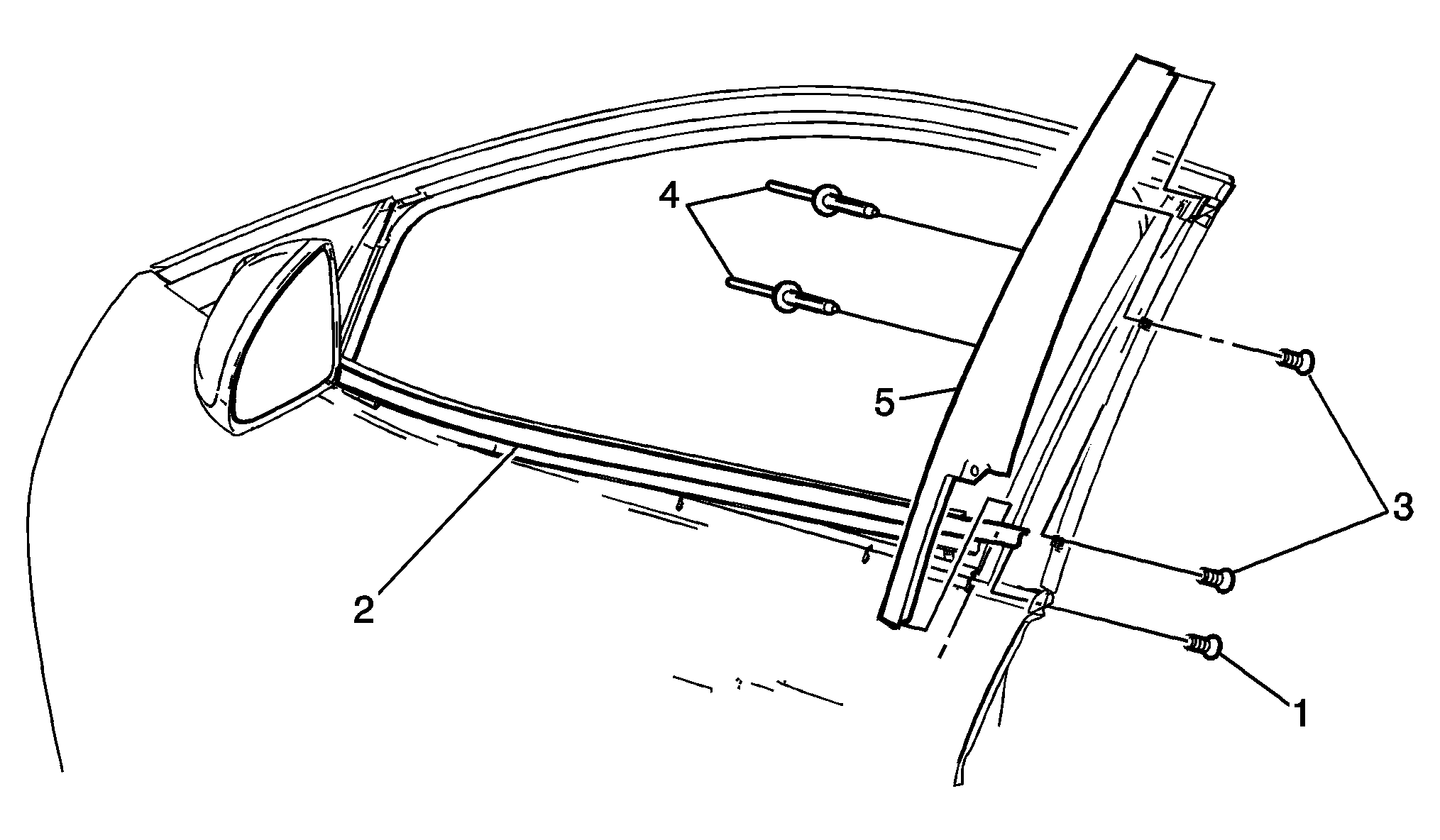

Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | Screw, Front Door Outer Belt Sealing Strip
NOTE:
Refer to Fastener Notice
. Tip: Pull the rear of the window run channel from applique. Tighten: 2 N.m (18 lb in) |
| 2 | Sealing Strip, Front Door Outer Belt Tip: Lift the rear of the outer belt sealing strip off of the door flange. |
| 3 | Screw, Front Door Applique (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 4 | Applique Rivet (Qty: 2) |
| 5 | Applique, Front Door Tip: Pull the applique up and out of the door. |
