Shift Lock Control Schematics
Shift Lock Control Schematics

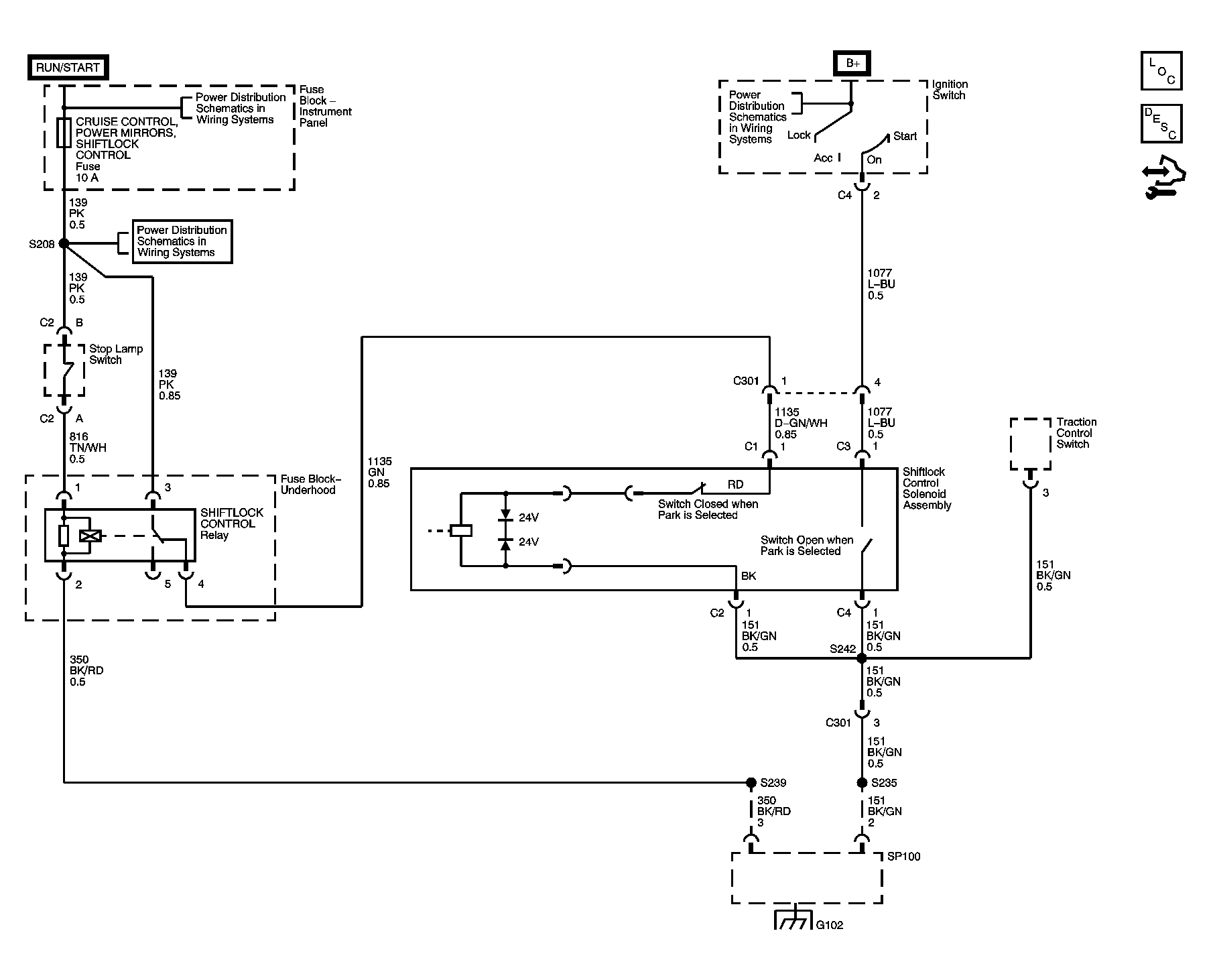

Fig 1: Shift Lock Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
